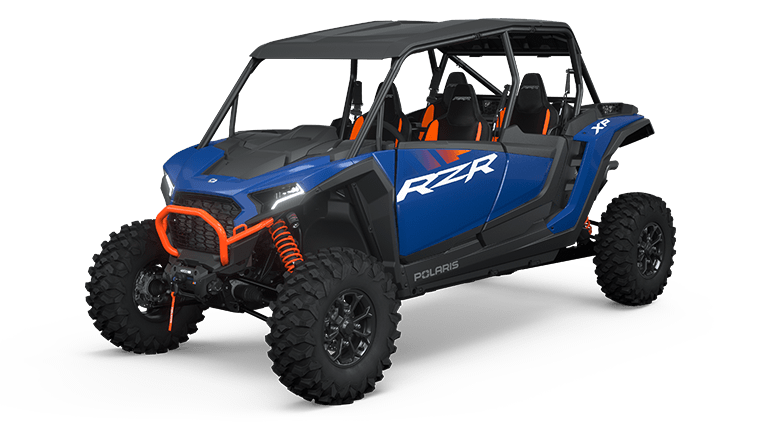

RZR XP 4 1000 Ultimate Polaris Blue

Explore RZR Lineup Estimate Trade-In

Engine & Drivetrain

Cooling

Liquid

Cylinders Displacement

999cc

Drive System Type

High Performance True On-Demand AWD/2WD

Engine Braking System (EBS)

Not Equipped

Engine Type

ProStar 1000 4-Stroke DOHC Twin Cylinder

Fuel System/Battery

Electronic Fuel Injection

Horsepower

114 HP

Transmission/Final Drive

Automatic PVT P/R/N/L/H

Dimensions

Bed Box Dimensions (L x W x H)

28 x 22 x 7 in (72.0 x 57.0 x 17.8 cm)

Box Capacity

300 lb (136 kg)

Estimated Dry Weight

1921 lbs (871 kg)

Fuel Capacity

9.5 gal (36 L)

Ground Clearance

14.5 in (36.8 cm)

Hitch Towing Rating

N/A

Overall Vehicle Size (L x W x H)

147.8 x 64 x 75 in (375.4 x 162.6 x 190.5 cm)

Payload Capacity

900 lb (408 kg)

Person Capacity

Wheelbase

117 in (297.2 cm)

Brakes

Front/Rear Brakes

4-Wheel Hydraulic Disc with Dual-Bore Front and Single Bore Rear Calipers

Parking Brake

Park In-Transmission

Technology

Audio

Rockford Fosgate® Stage 3 Audio (Including 2 Front & 2 Rear Co-axial Speakers and External 400W Amp)

Cargo System

Lock & Ride®

Doors

Front & Rear Full Doors

Electronic Power Steering

Standard with Quick Turn Rack

Hitch Type

Not Equipped

Instrumentation

7” Display Powered by RIDE COMMAND: Rear View Camera, Digital Instrumentation, Built-In GPS, Group ride (cell-based or GPS based), Topographic Mapping, Bluetooth & USB Smartphone Connectivity, AM/FM & Weather Radio, In-Vehicle Communications Capable With Optional Sena Headsets Speedometer, Odometer, Tripmeter, Tachometer, Coolant Temperature, Volt Meter, Hour Meter, Service Indicator, Clock, Gear Indicator, Fuel Gauge, Hi-Temp Light, Seatbelt Reminder Light, Fault Code Display, DC Outlet, Ambient Temp

Lighting

LED Head Lights & Tail Lights Illuminated In-Cab Controls

Other Standard Features

Integrated 4,500 lb Winch Color Matched Seats Programmable Speed Limiting PIN Enabled Engine Start Security Premium Painted Bumper and Springs 900-W Charging System @ 3,000 RPM 6-Position PULSE Bar Poly Sport Roof Front Tow Loop Front Bumper with Integrated Tie Down Loops Passenger Grab Handle with Integrated Lug Nut Hex Wrench Driver and Passenger Dash Storage Bins

RIDE COMMAND+

Available as Accessory

Seat Type

Bolstered Bucket Seats with Driver & Passenger Seat Slider Retractable 3-Point Seat Belts 2nd Row Stadium-Raised Seating

Wheels & Tires

Front Tires

30 x 10-14 Radial Tire

Rear Tires

30 x 10-14 Radial Tire

Tilt Steering

Standard Tilt

Wheels

Cast Aluminum

Suspension

Electronic Suspension Control System

Not Equipped

Front Shocks

2" Walker Evans® Needle Shocks with 16-Position Adjustable Clickers

Front Suspension

Dual A-Arm with Stabilizer Bar and 20.5 in (52.07 cm) *Usable Travel, 16 in (40.6 cm) of Wheel Travel

Rear Shocks

2.5" Walker Evans® Needle Shocks with 16-Position Adjustable Clickers

Rear Suspension

Trailing Arm with Stabilizer Bar and 20.5 in (52.07 cm) Usable Travel*, 18 in (45.7 cm) of Wheel Travel
