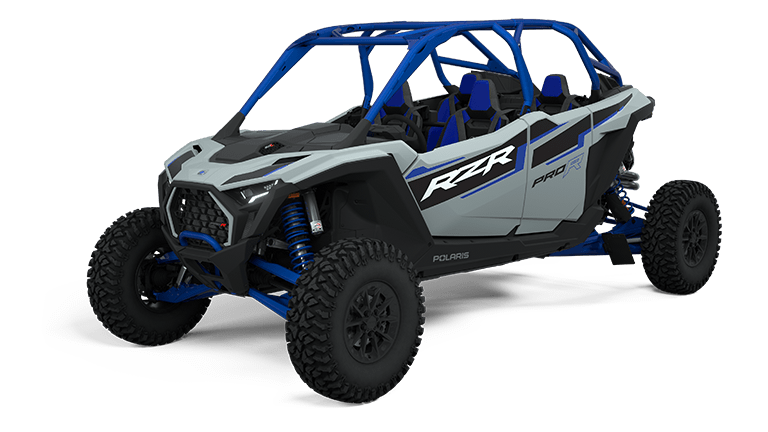

RZR Pro R 4 Sport Storm Gray

Explore RZR Lineup Estimate Trade-In

Engine & Drivetrain

Cooling

Liquid

Cylinders Displacement

1997cc

Drive System Type

Pro Performance True 2WD/4WD/4WD Lock

Engine Braking System (EBS)

Not Equipped

Engine Type

4-Stroke DOHC Inline Four Cylinder

Fuel System/Battery

Electronic Fuel Injection

Horsepower

225 HP

Transmission/Final Drive

Automatic PVT P/R/N/L/H

Dimensions

Bed Box Dimensions (L x W x H)

29.5 x 23.8 x 8.1 in (75 x 60.5 x 20.6 cm)

Box Capacity

300 lb (136.1 kg)

Estimated Dry Weight

2,441 lbs (1,107 kg)

Fuel Capacity

12.30 gal (46.56 L)

Ground Clearance

16 in (40.6 cm)

Hitch Towing Rating

N/A

Overall Vehicle Size (L x W x H)

165.5 x 74 x 76.5" (420 x 188 x 194 cm)

Payload Capacity

900 lb (408 kg)

Person Capacity

Wheelbase

133.5 in (339.1cm)

Brakes

Front/Rear Brakes

4-Wheel Hydraulic Disc with Triple-Bore Front and Dual-Bore Rear Calipers; Aluminum Top Hat Rotor

Parking Brake

Park In-Transmission

Technology

Audio

Not Equipped, Accessory Options Available

Cargo System

Lock & Ride®; Convertible Fold Flat Rear Seat Storage with Integrated Tie Down Points, 27.7 x 52.8 x 19.5 in (70.4 x 134.1 x 49.53 cm) Factory Equipped Cargo Liner

Charging System

High Output 1700w charging system @ 3,000 RPM

Doors

Front & Rear Full Doors

Electronic Power Steering

Rack Mounted High Assist Electronic Power Steering with Quick Turn Rack

Hitch Type

Not Equipped

Instrumentation

Dual-sweep Analog Dials w/ 4" LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder Light, Gear Indicator, Front and Rear DC Outlet, Polaris P.A.S.S Anti-Theft System

Lighting

Signature White LED, Low/High & Red LED Tail/Brake Lights

Seat Type

Color-Matched, Front Bolstered Bucket Seats with 4-Way Adjustability (Including 6 in front to Back Toolless Seat Sliders with Tilt Adjustability) and Retractable Click-6 Harnesses, Rear Stadium Style Seating with Non-Retractable 6-Point Harnesses

Wheels & Tires

Front Tires

32 x 10-15 Maxxis Rampage Fury; 8-Ply Rated; Wheel Size 15x7

Rear Tires

32 x 10-15 Maxxis Rampage Fury; 8-Ply Rated; Wheel Size 15x7

Wheels

5-Lug, 15" Cast Aluminum Rim

Suspension

Electronic Suspension Control System

N/A

Front Shocks

2.5 in Walker Evans Velocity Needle Shock with 16-Position Adjustable Clickers

Front Suspension

Light Weight Boxed Dual A-Arm with 3 piece Stabilizer Bar and 27.0 in (68.6 cm) *Usable Travel, 22.25 in (56.5 cm) Wheel Travel, Unitized Hubs

Rear Shocks

3.0 in Walker Evans Velocity Needle Shock with 16-Position Adjustable Clickers

Rear Suspension

Boxed Trailing Arm with Toe Link, High-Clearance Radius Rods, and 3 Piece Stabilizer Bar and 29.0 in (73.7 cm) *Usable Travel, 24.5 in (62.2 cm) Wheel Travel, Unitized Hubs
