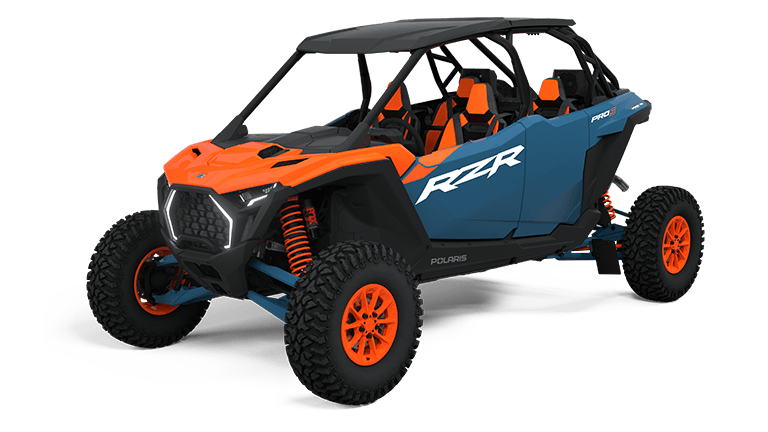

RZR Pro S 4 Ultimate Orange Burst / Zenith Blue

Explore RZR Lineup Estimate Trade-In

Engine & Drivetrain

Cooling

Liquid

Cylinders Displacement

925cc

Drive System Type

Isolated Xtreme Performance True On-Demand AWD/2WD

Engine Braking System (EBS)

Not Equipped

Engine Type

4-Stroke DOHC Twin Cylinder Turbocharged

Fuel System/Battery

Electric Fuel Injection

Horsepower

181 HP

Transmission/Final Drive

Automatic PVT P/R/N/L/H

Dimensions

Bed Box Dimensions (L x W x H)

26 x 17.7 x 11.5 in (66 x 45 x 29.2 cm)

Box Capacity

300 lb (136 kg)

Estimated Dry Weight

2,409 lbs (1,093 kg)

Fuel Capacity

12 gal (45.4 L)

Ground Clearance

16" (40.6 cm)

Hitch Towing Rating

N/A

Overall Vehicle Size (L x W x H)

157 x 74 x 77 in (399 x 188 x 196 cm)

Payload Capacity

1160 lbs. (526 kg)

Person Capacity

Wheelbase

125 in (317.5 cm)

Brakes

Front/Rear Brakes

4-Wheel Hydraulic Disc with Triple-Bore Front and Dual-Bore Rear Calipers; Aluminum Top Hat Rotor

Parking Brake

Park In-Transmission

Technology

Audio

Factory Tuned & Integrated Rockford Fosgate Stage 4 Audio System with RIDE COMMAND Source Unit. Includes (2) 100 watt 1-inch tweeters, (2) 100 watt 6.5-inch component front speakers, (2) 100 watt 6.5-inch coaxial rear speakers, (1) 400 watt 4-channel amplifier, and (1) 10-inch subwoofer with an integrated 400 watt subwoofer amplifier. *Audio System is IPX7 and IPX9K water immersion tested to withstand the wet elements.

Cargo System

Lock & Ride® Fold Flat Rear Storage, convertible rear seat storage with integrated tie down points, 27.7 x 52.8 x 19.5 in (70.4 x 134.1 x 49.53 cm)

Charging System

High Output 900w charging system @ 3,000 RPM

Doors

Front & Rear Full Doors

Electronic Power Steering

Rack Mounted High Assist Electronic Power Steering with Quick Turn Rack; Race Inspired Steering Wheel with Tilt & Telescoping Adjustment; RIDE COMMAND Push Button Controls

Hitch Type

Not Equipped

Instrumentation

RIDE COMMAND® 7” Glove-Touch Display: DYNAMIX 2.0 Visualizer, Built-In GPS, Group ride (cell-based or GPS based), Topographic Mapping, Bluetooth & USB Smartphone Connectivity, AM/FM & Weather Radio, In-Vehicle Communications Capable With Optional Sena Headsets, Polaris P.A.S.S Anti-Theft System. Dual-sweep Analog Dials w/ 4" LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals. Digital Instrumentation: Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder Light, Gear Indicator, DC Outlet

Lighting

Signature Animated RZR Fang Accent Lighting; White LED, Low / High & Red LED Tail / Brake Lights; Interior Dash Accent Lighting

Seat Type

Color-Matched Bolstered Bucket Seats with Driver 4-way adjustability (including 6" front to back toolless seat slider with tilt adjustability) & Passenger tilt adjustability; Sub-Zero 4-Point Harnesses

Wheels & Tires

Front Tires

32 x 10-15 Maxxis Rampage Fury; 8-Ply Rated; Wheel Size 15x7

Rear Tires

32 x 10-15 Maxxis Rampage Fury; 8-Ply Rated; Wheel Size 15x7

Wheels

15" Cast Aluminum Rim with 5-Lug Pattern

Suspension

Electronic Suspension Control System

Polaris Dynamix DV 3.0 (Dual Valve Control) Semi-Active Compression and Rebound Damping System with Selectable Ride Modes: Comfort, Rock, Track, Baja

Front Shocks

FOX® 3.0 Live Valve X2 Internal Bypass (Electronically Controlled Compression and Rebound)

Front Suspension

Light Weight Boxed Dual A-Arm with 3 Piece Stabilizer Bar and 27" (68.6 cm) Usable Travel, 22.25" (56.5 cm) Wheel Travel, Unitized Hubs

Rear Shocks
