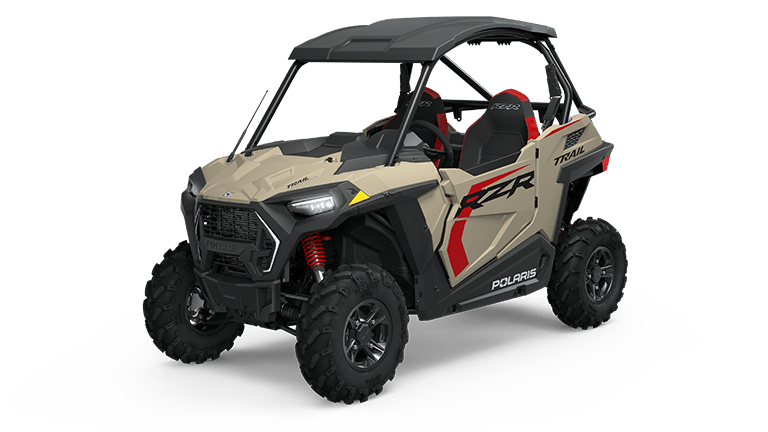

RZR Trail Ultimate Sand Dune

Explore RZR Lineup Estimate Trade-In

Engine & Drivetrain

Cooling

Liquid

Cylinders Displacement

875cc

Drive System Type

High Performance True On-Demand AWD/2WD/VersaTracTurf Mode

Engine Braking System (EBS)

Yes

Engine Type

4-Stroke DOHC Twin Cylinder

Fuel System/Battery

Electronic Fuel Injection

Horsepower

75 HP

Transmission/Final Drive

Automatic PVT P/R/N/L/H

Dimensions

Bed Box Dimensions (L x W x H)

20.7 x 37 x 7.9 in (52.5 x 94 x 20 cm)

Box Capacity

300 lb (136.1 kg)

Estimated Dry Weight

1297 lb (588.3 kg)

Fuel Capacity

9.5 gal (35.9 L)

Ground Clearance

11 in (27.9 cm)

Hitch Towing Rating

1500 lb (680.4 kg)

Overall Vehicle Size (L x W x H)

110.9 x 50 x 67.9 in (282 x 127 x 172.5 cm)

Payload Capacity

740 lb (335.7 kg)

Person Capacity

Wheelbase

79 in (200.7 cm)

Brakes

Front/Rear Brakes

4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers

Parking Brake

Park In-Transmission

Technology

Audio

Premium Rockford Fosgate® Stage 2 Audio

Cargo System

Lock & Ride®

Doors

Full Doors

Electronic Power Steering

Yes

Hitch Type

Standard 1.25 in (3.2 cm) Receiver

Instrumentation

RIDE COMMAND 7” Glove-Touch Display: Built-In GPS, *Group Ride (Cell and Non-Cell Communications), Topographic Mapping, Bluetooth & USB Smartphone Connectivity, AM/FM & Weather Radio Capable, In-Vehicle Communications Capable With Optional Sena Headsets Dual-Sweep Analog Dials with 4" LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals. Digital Instrumentation: Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder Light, Gear Indicator, DC Outlet + 12V Power Plug

Lighting

Signature White LED Low/High with Accent Lights & Red LED Tail/Brake Lights

Other Standard Features

Poly Roof, Rear Camera, Adjustable Tilt Steering, Turf Mode, Polaris P.A.S.S.

Seat Type

Bolstered Bucket Seats with Toolless Driver Seat Slider and Standard Passenger Seat Slider (Tool Required for Adjustment on Passenger Seat)

Wheels & Tires

Front Tires

26 X 8 X 12

Rear Tires

26 X 9 X 12

Wheels

Cast Aluminum

Suspension

Electronic Suspension Control System

Not Equipped

Front Shocks

FOX® 2.0 PODIUM X

Front Suspension

Dual A-Arm with Stabilizer Bar and 10 in (25.4 cm) Wheel Travel

Rear Shocks
