MODEL ARCHIVE

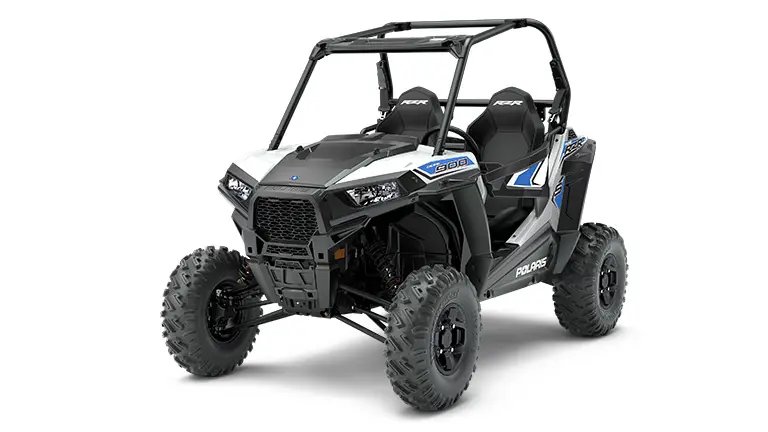

RZR® S 900 IN-MOLD WHITE LIGHTNING

Engine & Drivetrain

Cooling
Liquid
Cylinders Displacement
875cc
Drive System Type
True On-Demand AWD/2WD
Engine Braking System (EBS)
Standard
Engine Type
ProStar 900 4-Stroke DOHC Twin Cylinder
Fuel System/Battery
Electronic Fuel Injection
Horsepower
75 HP
Transmission/Final Drive
Automatic PVT P/R/N/L/H

Dimensions

Bed Box Dimensions (L x W x H)
20.7 x 37 x 7.9 in (52.5 x 94 x 20 cm)
Box Capacity
300 lb (136 kg)
Estimated Dry Weight
1,204 lb (546 kg)
Fuel Capacity
9.5 gal (35.9 L)
Ground Clearance
12.5 in (31.8 cm)
Overall Vehicle Size (L x W x H)
106 x 60 x 71.5 in (269.2 x 152.4 x 181.6 cm)
Payload Capacity
740 lb (336 kg)
Wheelbase
79 in (200.7 cm)

Brakes

Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers
Parking Brake
Park In-Transmission

Additional Specifications

Cargo System
Lock & Ride®
Doors
Bowed 1/4 Doors
Electronic Suspension Control System
N/A
Front Shocks
FOX® 2.0 PERFORMANCE PODIUM
Front Suspension
Dual A-Arm 12.25 in (31.1 cm) Travel
Hitch Towing Rating
1,500 lb (680 kg)
Hitch Type
Standard 1.25 in (3.2 cm) Receiver
Instrumentation
Single Analog Dial with 2" LCD Rider Information Center, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Volt Meter, Service Indicator and Codes, Seatbelt Reminder Light, DC Outlet
Lighting
Halogen, 55W low/ 60W high, Red LED Tail/Brake Lights
Rear Shocks
FOX® 2.0 PERFORMANCE PODIUM
Rear Suspension
Dual A-Arm with Stabilizer Bar 13.2 in (33.5 cm) Travel
Seat Type
Bolstered Bucket Seats

Tires / Wheels

Electronic Power Steering
Not Equipped
Front Tires
27 x 9-12; GBC Dirt Commander
Rear Tires
27 x 11-12; GBC Dirt Commander
Wheels
Cast Aluminum
