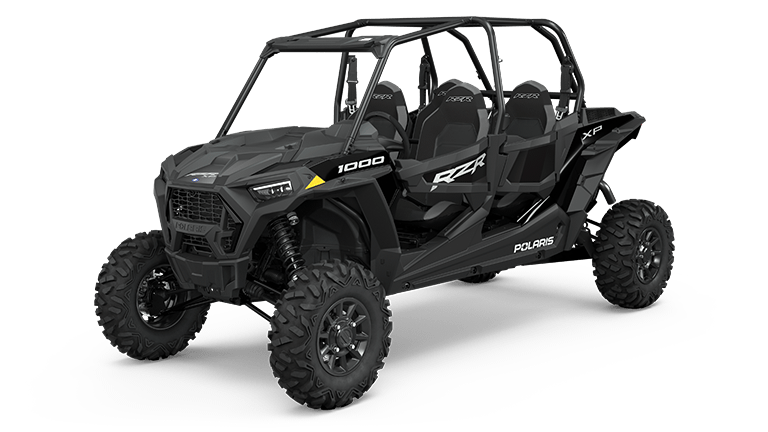

RZR XP 4 1000 Sport Cruiser Black
Engine & Drivetrain
Cooling
Liquid
Cylinders Displacement
999cc
Drive System Type
High Performance True On-Demand AWD/2WD
Engine Braking System (EBS)
Not Equipped
Engine Type
4-Stroke DOHC Twin Cylinder
Fuel System/Battery
Electronic Fuel Injection
Horsepower
110 HP
Transmission/Final Drive
Automatic PVT P/R/N/L/H
Dimensions
Bed Box Dimensions (L x W x H)
28 x 22 x 7 in (72.0 x 57.0 x 17.8 cm)
Box Capacity
300 lb (136.1 kg)
Estimated Dry Weight
1,671 lbs (758 kg)
Fuel Capacity
9.5 gal (35.9 L)
Ground Clearance
14 in (35.6 cm)
Hitch Towing Rating
N/A
Overall Vehicle Size (L x W x H)
146 x 64 x 73.75 in (370.8 x 162.6 x 187.3 cm)
Payload Capacity
900 lb (408 kg)
Wheelbase
117 in (297.2 cm)
Brakes
Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers
Parking Brake
Park In-Transmission
Additional Specifications
Cargo System
Lock & Ride®
Doors
Front & Rear Bowed 1/4 Doors
Electronic Power Steering
Standard with Quick Turn Rack
Hitch Type
Not Equipped
Instrumentation
Dual-sweep Analog Dials w/ 4" LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder Light, Gear Indicator, DC Outlet
Lighting
Signature White LED, Low/High & Red LED Tail / Brake Lights
Other Standard Features
Adjustable Tilt Steering
Seat Type
Bolstered Bucket Seats with Driver Seat Slider and Height Adjustable Seat Belts
Tires / Wheels
Front Tires
29 x 9-14; Radial Tire
Rear Tires
29 x 11-14; Radial Tire
Wheels
Cast Aluminum
Suspension
Electronic Suspension Control System
Not Equipped
Front Shocks
2" Walker Evans Needle Shocks with 16-Position Adjustable Clickers
Front Suspension
Dual A-Arm with Stabilizer Bar and 20 in (50.8 cm) Usable Travel*, 16 in (40.6 cm) of Wheel Travel
Rear Shocks
2.5" Walker Evans Needle Shocks with 16-Position Adjustable Clickers
Rear Suspension
Trailing Arm with Stabilizer Bar and 20 in (50.8 cm) Usable Travel*, 18 in (45.7 cm) of Wheel Travel
