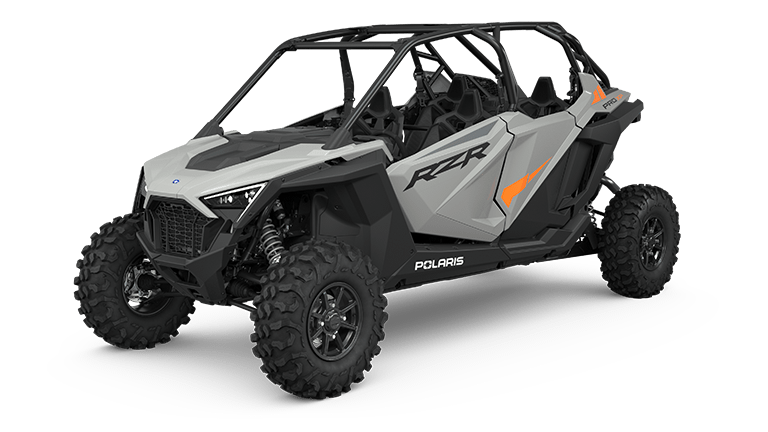

RZR Pro XP 4 Sport Ghost Gray
Engine & Drivetrain
Cooling
Liquid
Cylinders Displacement
925cc
Drive System Type
Isolated Xtreme Performance True On-Demand AWD/2WD
Engine Braking System (EBS)
Not Equipped
Engine Type
4-Stroke DOHC Twin Cylinder Turbocharged
Fuel System/Battery
Electronic Fuel Injection
Horsepower
181 HP
Transmission/Final Drive
Automatic PVT P/R/N/L/H
Dimensions
Bed Box Dimensions (L x W x H)
26 x 17.7 x 11.5 in (66 x 45 x 29.2 cm)
Box Capacity
300 lb (136.1 kg)
Estimated Dry Weight
2,020 LBS (916 KG)
Fuel Capacity
13 gal (49.2 L)
Ground Clearance
14.5 in (36.8 cm)
Hitch Towing Rating
N/A
Overall Vehicle Size (L x W x H)
155 x 64 x 73.6 in (393.7 x 162.6 x 186.9 cm)
Payload Capacity
900 lb (408 kg)
Wheelbase
125 in (317.5 cm)
Brakes
Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore XL Front and Dual-Bore Rear Calipers
Parking Brake
Park In-Transmission
Additional Specifications
Cargo System
Lock & Ride®
Doors
Front & Rear Full Doors
Electronic Power Steering
High Assist Electronic Power Steering with Quick Turn Rack; Race Inspired Steering Wheel
Hitch Type
Not Equipped
Instrumentation
Dual-sweep Analog Dials w/ 4" LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder Light, Gear Indicator, Front and Rear DC Outlet
Lighting
Signature White LED, Low/High & Red LED Tail / Brake Lights
Other Standard Features
High Output 900w charging system with sealed electrical, Polaris Pulse system, In-Dash Charge Port, Polaris P.A.S.S.
Seat Type
Bolstered Bucket Seats with 4-way adjustability and 3-Pt Height Adjustable Seat Belts
Tires / Wheels
Front Tires
30 x 10-14 Maxxis Carnivore II; (8-ply rated); Wheel Size 14x6
Rear Tires
30 x 10-14 Maxxis Carnivore II; (8-ply rated); Wheel Size 14x7
Wheels
Cast Aluminum
Suspension
Electronic Suspension Control System
Not Equipped
Front Shocks
2" FOX Shocks with Position Sensitive Spiral Technology and QS3 compression adjusters
Front Suspension
High-Clearance Dual A-Arm with Stabilizer Bar and 20 in (50.8 cm) Usable Travel*, 17 in (43.2 cm) Wheel Travel
Rear Shocks
2.5" FOX Shocks with Position Sensitive Spiral Technology and QS3 compression adjusters
Rear Suspension
Trailing Arm & Standard-Clearance Radius Rods with Stabilizer Bar and 22 in (55.9 cm) Usable Travel*, 20 in (50.8 cm) Wheel Travel
