MODEL ARCHIVE

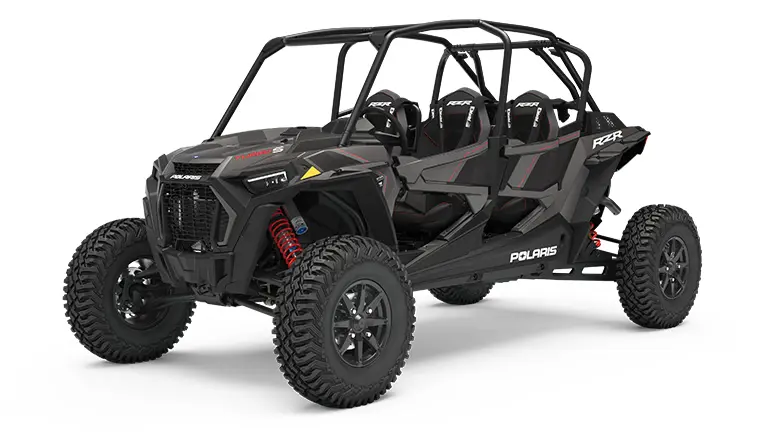

RZR XP 4 TURBO S VELOCITY TITANIUM METALLIC

Engine & Drivetrain

Cooling
Liquid
Cylinders Displacement
925cc
Drive System Type
Isolated Xtreme Performance True On-Demand AWD/2WD
Engine Braking System (EBS)
Not Equipped
Engine Type
ProStar Turbo H.O.; 4-Stroke DOHC Twin Cylinder Turbocharged
Fuel System/Battery
Electronic Fuel Injection
Horsepower
168 HP
Transmission/Final Drive
Automatic PVT P/R/N/L/H

Dimensions

Bed Box Dimensions (L x W x H)
28 x 22 x 7 in (72.0 x 57.0 x 17.8 cm)
Box Capacity
300 lb (136.1 kg)
Dry Weight
1,914 lbs (868 kg)
Fuel Capacity
9.5 gal (35.9 L)
Ground Clearance
16 in (40.6 cm)
Hitch Towing Rating
N/A
Hitch Type
Not Equipped
Overall Vehicle Size (L x W x H)
149 x 72 x 76.5 in (378.5 x 182.8 x 194.3 cm)
Payload Capacity
900 lb (408 kg)
Wheelbase
117 in (297.2 cm)

Brakes

Front/Rear Brakes
4-Wheel Hydraulic Disc with Triple-Bore Front and Dual-Bore Rear Calipers
Parking Brake
Park In-Transmission

Additional Specifications

Cargo System
Lock & Ride®
Doors
1/4 Doors
Electronic Power Steering
Standard
Instrumentation
Dual-sweep Analog Dials w/ 4" LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder Light, Gear Indicator, DC Outlet
Lighting
Front Blacked Out White LED Low High & Rear Red LED Tail / Brake
Seat Type
Bolstered Bucket Seats with Seat Sliders and SubZero 4-point harness

Tires / Wheels

Front Tires
32 x 10-15; ITP COYOTE (8-Ply Rated)
Rear Tires
32 x 10-15; ITP COYOTE (8-Ply Rated)
Wheels
15 in Cast Aluminum

Suspension

Front Shocks
Walker Evans 2.5” Velocity Needle Shock
Front Suspension
High-Clearance Dual A-Arm with Stabilizer Bar and 25 in (63.5 cm) Usable Travel, 19 in (48.2 cm) of Wheel Travel
Rear Shocks
Walker Evans 3.0” Velocity Needle Shock
Rear Suspension
Trailing Arm with Stabilizer Bar and 25 in (63.5 cm) Usable Travel, 21 in (53.3 cm) of Wheel Travel
