MODEL ARCHIVE

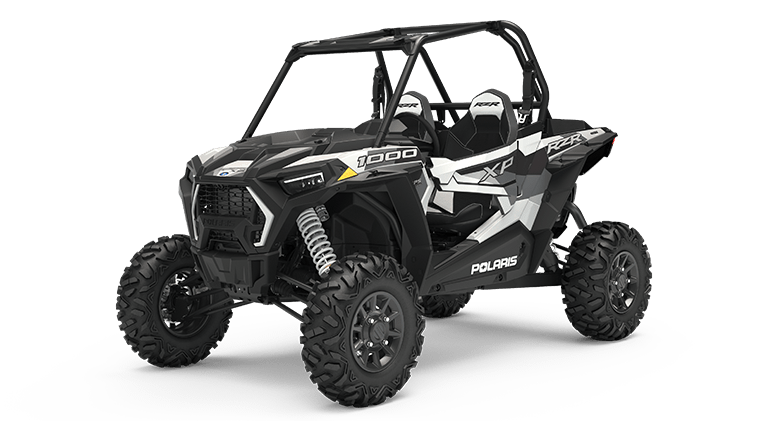

RZR XP 1000 White Pearl

Engine & Drivetrain

Cooling
Liquid
Cylinders Displacement
999cc
Drive System Type
High Performance True On-Demand AWD/2WD
Engine Braking System (EBS)
Not Equipped
Engine Type
ProStar 1000 H.O. 4-Stroke DOHC Twin Cylinder
Fuel System/Battery
Electronic Fuel Injection
Horsepower
110 HP
Transmission/Final Drive
Automatic PVT P/R/N/L/H

Dimensions

Bed Box Dimensions (L x W x H)
28 x 22 x 7 in (72.0 x 57.0 x 17.8 cm)
Box Capacity
300 lb (136.1 kg)
Estimated Dry Weight
1,448 lb (658 kg)
Fuel Capacity
9.5 gal (35.9 L)
Ground Clearance
14 in (35.6 cm)
Overall Vehicle Size (L x W x H)
119 x 64 x 73.75 in (302.2 x 162.6 x 187.3 cm)
Payload Capacity
740 lb (336 kg)
Wheelbase
90 in ( 228.6 cm)

Brakes

Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers
Parking Brake
Park In-Transmission

Additional Specifications

Cargo System
Lock & Ride®
Doors
Bowed 1/4 Doors
Electronic Suspension Control System
N/A
Hitch Towing Rating
N/A
Hitch Type
Not Equipped
Instrumentation
Dual-sweep Analog Dials w/ 4" LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder Light, Gear Indicator, DC Outlet
Lighting
White LED, Low/High, Red LED Tail/Brake Lights
Seat Type
Bolstered Bucket Seats with Driver Seat Slider and Height Adjustable Seat Belts

Tires / Wheels

Electronic Power Steering
Standard
Front Tires
29 x 9-14; Maxxis Bighorn
Rear Tires
29 x 11-14; Maxxis Bighorn
Wheels
Cast Aluminum

Suspension

Front Shocks
2" Walker Evans Needle Shocks with 16-Position Adjustable Clickers
Front Suspension
Dual A-Arm with Stabilizer Bar and 20 in (50.8 cm) Usable Travel*, 16 in (40.6 cm) of Wheel Travel
Rear Shocks
2.5" Walker Evans Needle Shocks with 16-Position Adjustable Clickers
Rear Suspension
Trailing Arm with Stabilizer Bar and 20 in (50.8 cm) Usable Travel, 18 in (45.7 cm) of Wheel Travel
