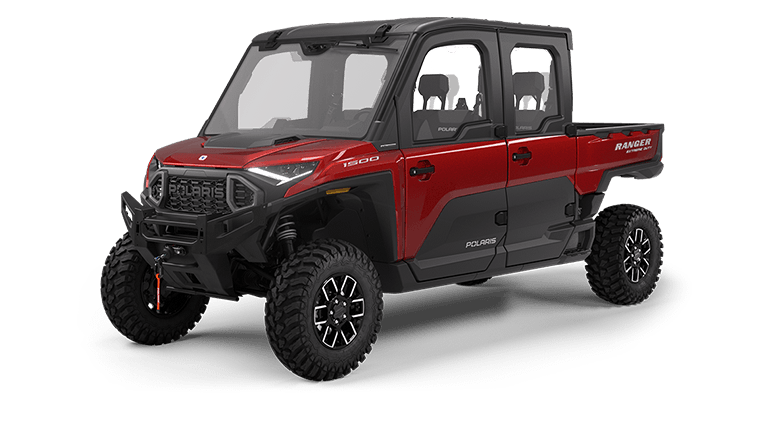

RANGER CREW XD 1500 NorthStar Edition Premium Sunset Red

Explore RANGER Lineup Estimate Trade-In

Engine & Drivetrain

Cooling

Liquid

Cylinders Displacement

1498cc

Drive System Type

On-Demand True AWD/2WD/Turf/Ultra Turf, Drive Modes: Comfort, Standard, Sport, Tow/Haul, Equipped with creep in drive and reverse to help with low speed drivability for smoother power delivery

Engine Braking System (EBS)

Drive Mode Specific Engine Braking System. Hill Assist enables the vehicle to hold its position, allowing easier maneuvering and improved control when stopping and starting on hills.

Engine Type

4-Stroke DOHC Triple Cylinder

Fuel System/Battery

Electronic Fuel Injection

Horsepower

110 HP

Torque

105 LB-FT

Transmission/Final Drive

STEELDRIVE Automatic Transmission: D/R/P

Dimensions

Bed Box Dimensions (L x W x H)

43.4 x 56 x 13.4 in (110.2 x 142.2 x 34 cm) Equipped with Power Box Lift

Box Capacity

1,500 lbs. (680 kg)

Estimated Dry Weight

3,323 lb. (1,507 kg)

Fuel Capacity

13.6 gal (51.5 L)

Ground Clearance

15 in. (38 cm)

GVW

5,035 lbs. (2,284 kg)

Hitch Towing Rating

3,500 lbs. (1588 kg)

Hitch Type

Standard 2 in (5 cm) Receiver

Overall Vehicle Size (L x W x H)

164 x 65 x 78 in (416.5 x 165 x 198 cm)

Payload Capacity

1,665 lbs. (755 kg)

Person Capacity

Water Fording Height

Equal to the Floorboards

Wheelbase

127 in. (322.6 cm)

Brakes

Front/Rear Brakes

Foot activated and power assisted, 4 wheel hydraulic disc with dual-bore front and rear calipers

Parking Brake

Park In-Transmission

Technology

Adjustable Driver Seat

Standard

Cargo System

Lock & Ride MAX

Color / Graphics

Sunset Red

Electronic Power Steering

High Output EPS

Gauge

Instrumentation

Driver Forward Information Center w/ 4 in Color Display + Analog Speedometer & Tachometers: User Selectable Blue/Red Backlighting & Brightness,Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Oil Pressure, Transmission Indicator, EPS Indicator, Voltmeter, Service Indicator and Codes, Seat Belt Reminder, Speed Limiting

Lighting

LED Headlights w/ LED Taillights, LED Rear Work Light, LED Dome Light, Door Puddle Lighting, Interior Accent Lighting, Lighting Modes: Low, High, Accent, Blackout. Blackout mode switches off the headlights and dims interior lighting

Other Standard Features

Premium Contoured Seats with Additional Bolstering, Premium Headrests and Center Armrest. Premium, Telescoping Steering Wheel and Painted Interior Accents. Polaris Pulse Electrical System (6 position), Overhead Switch Panel, Roof Pulse Bar (6 position), 140 Amp Charging System, Front Bumper, DC Outlet, USB Charge Port, Trickle Charger, NFC Front Badge, NorthStar Badge. Polaris HD 6,000 Lb. Synthetic Rope Winch with Autostop and Wireless Remote. Power Windows (Front & Rear)

RIDE COMMAND+

Available

Tilt Steering

Tilt & Telescoping Steering

Wheels & Tires

Front Tires

30 x 10-15; KENDA® CROSS TRAIL

Rear Tires

30 x 11-15; KENDA® CROSS TRAIL

Tire Ply Rating

8 Ply Rated

Wheels

15" Aluminum

Suspension

Front Suspension

Dual A-Arm 12" (30.5 cm) Travel

Rear Suspension

Dual Arched A-Arm IRS 12" (30.5 cm) Travel

Turning Radius

19.4 ft. (6 m)
