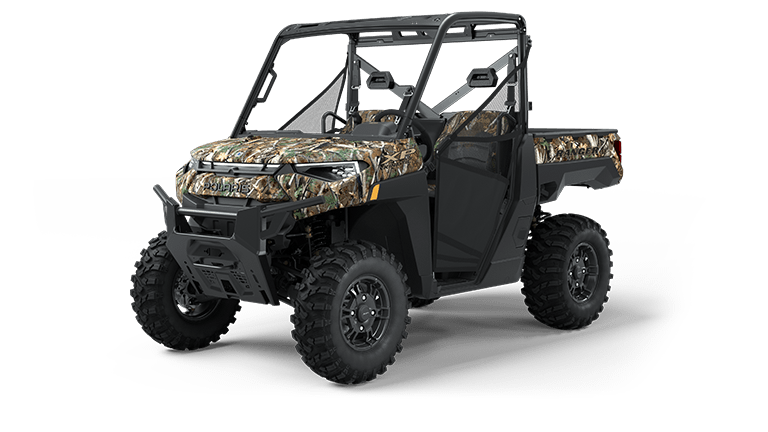

RANGER XP Kinetic Premium Polaris Pursuit Camo

Explore RANGER Lineup Estimate Trade-In

Engine & Drivetrain

Battery System
Lithium Ion, 14.9 kWh Nominal
Cooling
Active Air and Liquid
Drive System Type
High Performance On-Demand True AWD/2WD/VersaTrac Turf Mode
Engine Braking System (EBS)
Regenerative Braking
Horsepower
110 HP
Motor Type
Internal Permanent Magnet AC Motor
Torque
140 LB-FT
Transmission/Final Drive
Gates Synchronous Belt H/L/N/P (Electronic Forward/Reverse), Shaft

Dimensions

Bed Box Dimensions (L x W x H)
36.75 x 54.25 x 12.5 in (93.3 x 137.8 x 31.75 cm)
Box Capacity
1,250 lb (567 kg)
Estimated Dry Weight
1,754 lbs. (796 kg)
Ground Clearance
14" (35.6 cm)
Hitch Towing Rating
2,500 lb (1,134 kg)
Hitch Type
Standard 2 in (5 cm) Receiver
Overall Vehicle Size (L x W x H)
120 x 62.5 x 78 in (305 x 158 x 198 cm)
Payload Capacity
1,500 lbs (680.4 kg)
Person Capacity
3
Wheelbase
81 in (206 cm)

Brakes

Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front Calipers
Parking Brake
Park In-Transmission

Technology

Adjustable Driver Seat
Standard
Cargo System
Lock & Ride®
Charging Kit Included (EVSE)
J1772, Combined Level 1 / Level 2 Mobile
Color / Graphics
Polaris Pursuit Camo
Electronic Power Steering
Standard
Estimated Range
45 Miles
Instrumentation
Driver's Side Dual-sweep Analog Dials w/ 4" Multi-Color LCD Rider Information Center: Power Use and Regen %, Battery State of Charge %, Range Remaining, Charging Rate, Battery Temperature, Motor Temperature, Accessory Voltage, Speedometer, Odometer, Tripmeter, Gear Indicator, Service Indicator and Codes, Programmable Service Intervals, Seat Belt Reminder, User Selectable Backlighting & Brightness, Clock
Lighting
Dual LED Headlamps, 1250lm low beam, 2300lm high beam, LED Front Accent Light with Charge Indicator, Dual LED Taillamps
Onboard Battery Charger
3 kW
Other Standard Features
Premium Cut & Sew Seats with Contoured Seatbacks and Embroidered Polaris Branding, Premium Steering Wheel and Interior Accents, Polaris Pulse Electrical System (6 position), DC Outlets, Dual USB Port, Cargo Box Located 12V SAE Port with In-Dash On/Off Switch. *Connectivity with Ride Command + App
RIDE COMMAND+
Factory-Installed
Tilt Steering
Standard

Wheels & Tires

Front Tires
29 x 9-14; PRO ARMOR X-TERRAIN
Rear Tires
29 x 11-14; PRO ARMOR X-TERRAIN
Tire Ply Rating
8 Ply Rated
Wheels
14 in. (35.6 cm) Aluminum

Suspension

Front Suspension
Dual A-Arm, 10 in (25.4 cm)
Rear Suspension
Dual A-Arm, IRS 10" (25.4 cm) Travel
Turning Radius
13.3 ft (406.4 cm)
