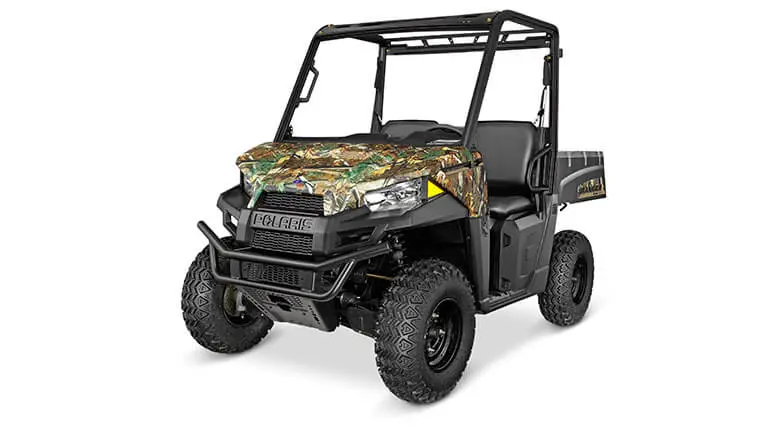

RANGER® EV POLARIS PURSUIT® CAMO

Engine & Drivetrain

Active Descent Control
Not Equipped
Drive System Type
On-Demand True AWD/2WD/VersaTrac Turf Mode
Engine Braking System (EBS)
Not Equipped
Engine Type
Single 48-Volt, High-Efficiency, AC-Induction Motor
Transmission/Final Drive
Direct Drive With Low-Noise Gears

Dimensions

Bed Box Dimensions (L x W x H)
32 x 42 x 11.5 in (81 cm x 107 cm x 29 cm)
Box Capacity
500 lb (226.8 kg)
Estimated Dry Weight
1,726 lb (783 kg)
Ground Clearance
10 in (25.4 cm)
Overall Vehicle Size (L x W x H)
110 x 58 x 73 in (279 x 147 x 185 cm)
Payload Capacity
1,000 lb (453 kg)
Wheelbase
72 in (182.9 cm)

Brakes

Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers
Parking Brake
Hand-Actuated

Additional Specifications

Cargo System
Lock & Ride®
Front Suspension
MacPherson Strut 9 in (22.9 cm) Travel
Hitch Towing Rating
1,500 lb (680 kg)
Hitch Type
Standard 2 in (5 cm) Receiver
Instrumentation
Digital Hour Meter, Mode Indicator, DC Outlet, Hi-Temp Light, Change Cycle Indicator, Battery Life Indicator
Lighting
50W Headlight, LED Tail
Rear Suspension
Dual A-Arm, IRS 9 in (22.9 cm) Travel

Tires / Wheels

Front Tires
25 x 9-12; Carlisle
Rear Tires
25 x 9-12; Carlisle
Wheels
Stamped Steel
