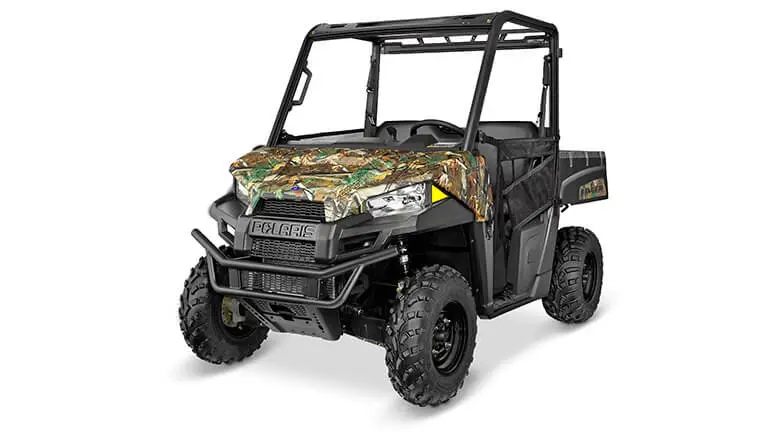

RANGER® 570 POLARIS PURSUIT® CAMO

Engine & Drivetrain

Active Descent Control
Not Equipped
Cooling
Liquid
Cylinders Displacement
567cc
Drive System Type
On-Demand True AWD/2WD/VersaTrac Turf Mode
Engine Braking System (EBS)
Not Equipped
Engine Type
4-Stroke Single Cylinder
Fuel System/Battery
Electronic Fuel Injection
Fuel Type
Gas
Transmission/Final Drive
Automatic PVT H/L/N/R/P; Shaft

Dimensions

Bed Box Dimensions (L x W x H)
32 x 42 x 11.5 in (81 cm x 107 cm x 29 cm)
Box Capacity
500 lb (226.8 kg)
Estimated Dry Weight
1,042 lb (473 kg)
Fuel Capacity
9 gal (34.1 L)
Ground Clearance
10 in (25.4 cm)
Overall Vehicle Size (L x W x H)
110 x 58 x 73 in (279 x 147 x 185 cm)
Payload Capacity
1,000 lb (453 kg)
Wheelbase
73 in (185.4 cm)

Brakes

Front/Rear Brakes
4-Wheel Hydraulic Disc
Parking Brake
Park In-Transmission

Additional Specifications

Cargo System
Lock & Ride®
Enclosed Cab Capable
Yes
Front Suspension
MacPherson Strut 9 in (22.9 cm) Travel
Hitch Towing Rating
1,500 lb (680 kg)
Hitch Type
Standard 2 in (5 cm) Receiver
Instrumentation
Digital Gauge, Speedometer, Odometer, Tachometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Hi-Temp Light, DC Outlet
Lighting
50W Headlight, LED Tail
Rear Suspension
Dual A-Arm, IRS 10 in. (25.4 cm) Travel

Tires / Wheels

Electronic Power Steering
Not Equipped
Front Tires
25 x 8-12; 489
Rear Tires
25 x 11-12; 489
Wheels
Stamped Steel
