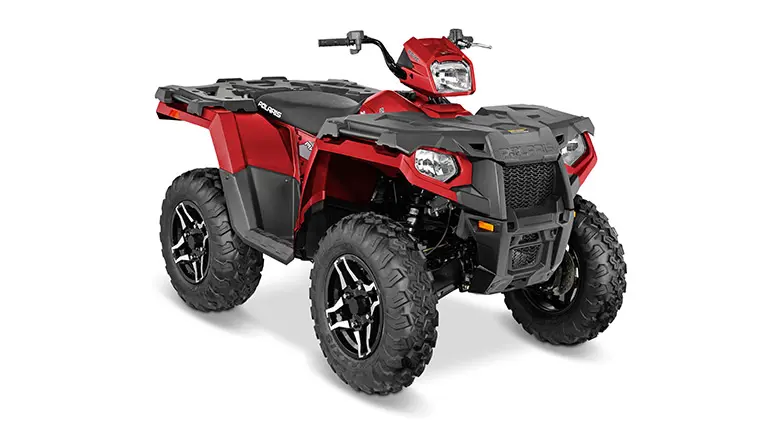

SPORTSMAN® 570 SP SUNSET RED

Engine & Drivetrain

Active Descent Control
Standard
Cooling
Liquid
Cylinders Displacement
567cc
Drive System Type
High Performance Close Ratio On-Demand True AWD/2WD
Engine Braking System (EBS)
Standard
Engine Type
4-Stroke DOHC Single Cylinder
Fuel System/Battery
Electronic Fuel Injection
Transmission/Final Drive
Automatic PVT P/R/N/L/H; Shaft

Dimensions

Estimated Dry Weight
730 lb (332 kg)
Front/Rear Rack
90 lb / 180 lb (41 kg / 82 kg)
Fuel Capacity
4.5 gal (17.0 L)
Ground Clearance
11.5 in (29 cm)
Overall Vehicle Size (L x W x H)
83 x 48 x 48 in (210.8 x 121.9 x 121.9 cm)
Payload Capacity
485 lb(w/ 180 lb person) / (220 kg w/81.6kg person)
Person Capacity
1
Seat Height
34.25 in (87 cm)
Wheelbase
50.5 in (128.3 cm)

Brakes

Front/Rear Brakes
Single Lever 4-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake
Parking Brake
Park In-Transmission / Lockable Hand Lever

Additional Specifications

Cargo System
Lock & Ride®
Electronic Power Steering
Standard
Front Suspension
Dual A-arm 8.2 in (20.8 cm) Travel
Hitch Towing Rating
1,500 lb (680 kg)
Instrumentation
Analog Speedometer, Digital Odometer, Tachometer, Twin Tripmeter, Gear Indicator, Fuel Gauge, AWD Indicator, Hi-Temp/Low-Batt Lights, DC Outlet
Lighting
Triple 50w High Beam, Single 50w High Beam Pod Light, Dual Brakelights/Taillights
Rear Suspension
Dual A-Arm, IRS 9.5 in (24.1 cm) Travel

Tires / Wheels

Front Tires
26 x 8-14; Maxxis
Rear Tires
26 x 10-14; Maxxis
Wheels
Cast Aluminum
