MODEL ARCHIVE

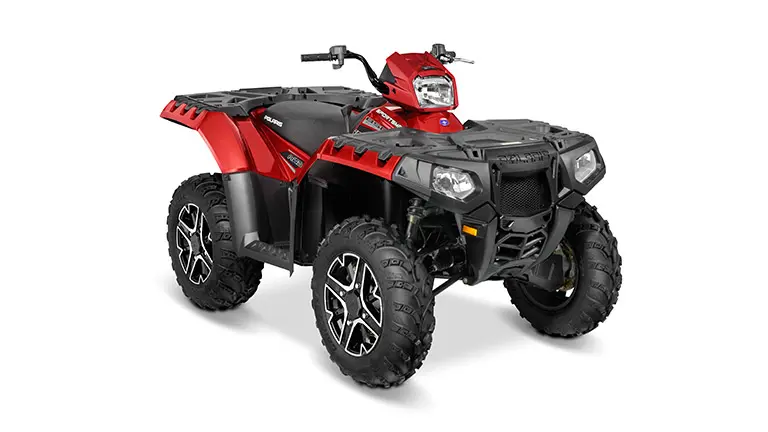

SPORTSMAN® 850 SP SUNSET RED

Engine & Drivetrain

Active Descent Control
Standard
Cooling
Liquid
Cylinders Displacement
850cc High Output (H.O)
Drive System Type
High Performance Close Ratio On-Demand True AWD/2WD
Engine Braking System (EBS)
Standard
Engine Type
4-Stroke SOHC Twin Cylinder
Fuel System/Battery
Electronic Fuel Injection
Transmission/Final Drive
Automatic PVT P/R/N/L/H; Shaft

Dimensions

Estimated Dry Weight
767 lb (349 kg)
Front/Rear Rack
120 lb /240 lb (55 kg / 110 kg)
Fuel Capacity
5.25 gal (19.9 L)
Ground Clearance
11.5 in (29 cm)
Overall Vehicle Size (L x W x H)
83.25 x 47.6 x 50.75 in (211.4 x 120.9 x 128.9 cm)
Payload Capacity
575 lb (261 kg)
Person Capacity
1
Seat Height
37 in (94 cm)
Wheelbase
53 in (134.6 cm)

Brakes

Front/Rear Brakes
Single Lever 4-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake
Parking Brake
Park In-Transmission / Lockable Hand Lever

Additional Specifications

Cargo System
Lock & Ride®
Electronic Power Steering
Standard
Front and Rear Suspension
Twin tube steel body
Front Suspension
Dual A-Arm 9 in (22.9 cm) Travel
Hitch Towing Rating
1,500 lb (680 kg)
Hitch Type
Standard 1.25 in (3.2 cm) Receiver
Instrumentation
Analog Speedometer, Digital Odometer, Tachometer, Two Tripmeters, Hour Meter, Clock, Service Time, Diagnostic Indicator, Gear Indicator, Fuel Gauge, Hi-Temp/Low-Batt Lights, DC Outlet
Lighting
Triple 50w High Beam, Dual 50w Low Beam Headlights, Dual Brakelights/Taillights
Rear Suspension
Dual A-Arm, Rolled 10.25 in (26 cm) Travel; heavy duty shocks

Tires / Wheels

Front Tires
26 x 8-14; 489 II
Rear Tires
26 x 10-14; 489 II
Wheels
Cast Aluminum
