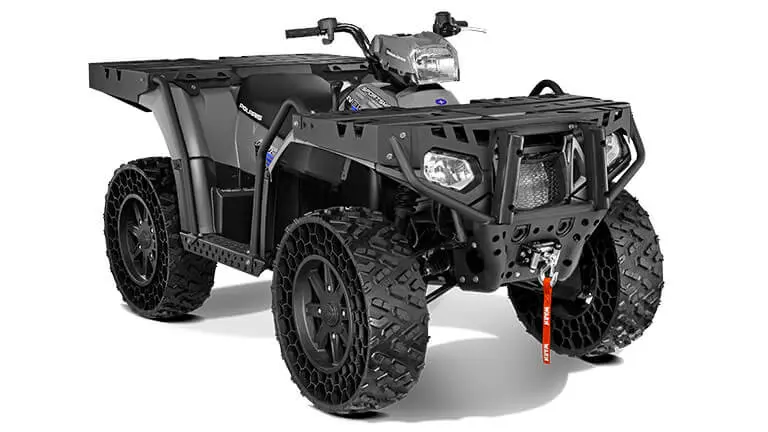

SPORTSMAN® WV850 H.O. TERRAINARMOR™ AVALANCHE GRAY
Engine & Drivetrain
Active Descent Control
Standard
Cooling
Liquid
Cylinders Displacement
850cc
Engine Braking System (EBS)
Standard
Engine Type
4-Stroke SOHC Twin Cylinder
Fuel System/Battery
Electronic Fuel Injection
Transmission/Final Drive
Automatic PVT P/R/N/H Single Forward Gear; Shaft
Dimensions
Estimated Dry Weight
1114 lb (505 kg)
Front/Rear Rack
200 lb /400 lb (91 kg / 181 kg)
Fuel Capacity
5.25 gal (19.9 L) + 6.5 gal (24.6 L) reserve
Ground Clearance
11.25 in (28.5 cm)
Overall Vehicle Size (L x W x H)
94.5 x 47.3 x 52 in(242.3 x 120.1 x 132.1 cm)
Payload Capacity
850 lb (386 kg)
Seat Height
33.75 in (85.7 cm)
Wheelbase
57 in (144.8 cm)
Brakes
Front/Rear Brakes
Single Lever 4-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake
Parking Brake
Park In-Transmission / Lockable Hand Lever
Additional Specifications
Cargo System
Polaris powder coated black steel w/D-rings
Electronic Power Steering
Standard
Enhanced Chassis
Standard - Military based
Fixed Front Winch
Standard
Front Suspension
Dual A-Arm 9 in (22.9 cm) Travel; heavy duty shocks
Full Body Steel Exoskeleton
Standard - Military based
Full Underbody Skid Plate
Standard
Lighting
Triple 50w High Beam, Dual 50w Low Beam Bumper Lights, Single 50w High Beam Pod Light
Push Bumper
Standard - Military based
Rear Suspension
Dual A-Arm, Rolled 10.25 in (26 cm) Travel; heavy duty shocks
Shift Lever Lock
Standard - Military based
Wells Wider Foot
Standard - Military based
Tires / Wheels
Front Tires
26 x 8-14 NPT
Rear Tires
26 x 8-14 NPT
Wheels
NPT 8-spoke Cast Aluminum
