RZR XP 4 1000 SPORT SAND DUNE SPECIFICATIONS

Find specifications below for the 2026 Polaris RZR XP 4 1000 Sport Sand Dune side by side. Specs include ground clearance, wheelbase, box capacity, cargo system, engine braking system, instrumentation, lighting, travel, horsepower, engine, seat type and suspension.

Change Model

Engine & Drivetrain

Cooling
Liquid
Cylinders Displacement
999 cc
Drive System Type
High-performance true on-demand AWD/2WD
Driveline Features
Not equipped
Engine Type
ProStar 1000 4-stroke DOHC twin cylinder.
Fuel System/Battery
Electronic Fuel Injection
Horsepower
114
Transmission/Final Drive
Automatic PVT P/R/N/L/H with geared reverse and high-strength clutch

Dimensions

Bed Box Dimensions (L x W x H)
28 x 22 x 7" (72.0 x 57.0 x 17.8 cm)
Box Capacity
300 lbs. (136.1 kg)
Estimated Dry Weight
1,828 lbs (829 kg) CA 1,835 lbs. (832 kg)
Fuel Capacity
9.5 gal (35.9 L)
Ground Clearance
14" (35.6 cm)
Hitch Type
N/A
Overall Vehicle Size (L x W x H)
146.9 x 64 x 72.8" (373.1 x 162.6 x 184.9 cm)
Payload Capacity
900 lbs. (408.2 kg)
Person Capacity
4
Towing Capacity
N/A
Turning Radius
20.1'
Wheelbase
117" (297.2 cm)

Brakes

Front/Rear Brakes
4-wheel hydraulic disc with dual-bore front and dual-bore rear calipers
Parking Brake
Park in-transmission

Technology

Audio System
Not equipped, accessory options available
Connected Vehicle Services
Not equipped, accessory options available
Rear Camera
Not equipped, accessory options available
Security
Polaris P.A.S.S. anti-theft system
Touch Screen Display
Not equipped, accessory options available

Wheels & Tires

Front Tires
29 x 9-14 radial tire
Rear Tires
30 x 10-14 radial tire
Tire Ply Rating
8-ply
Wheels
14" cast aluminum

Suspension

Electronic Suspension Control System
Not equipped
Front Shocks
2" Walker Evans® needle shocks with 16-position adjustable clickers
Front Suspension
Dual A-arm with stabilizer bar and 20" (50.8 cm) usable travel*, 16" (40.6 cm) of wheel travel
Rear Shocks
2.5" Walker Evans® needle shocks with 16-position adjustable clickers
Rear Suspension
Trailing arm with stabilizer bar and 20" (50.8 cm) usable travel*, 18" (45.7 cm) of wheel travel

Exterior Features

Cargo System
Lock & Ride
Door Type
Half doors
Vehicle Protection
Front bumper
Winch
Not equipped

Lighting & Electrical

Electrical System
660-W Charging System @ 3,000 RPM, 6-Position PULSE Bar
Lighting
LED headlights & taillights, illuminated in-cab controls

Comfort & Convenience

Cab Components
Half doors
Drive Modes
Not equipped
Driver Instrumentation
Center mounted information center w/ 4" color display + rotary speedometer & tachometers, programmable speed limiting, programmable service intervals, speedometer, tachometer, odometer, tripmeter, clock, hour meter, gear indicator, fuel gauge, coolant temperature, voltmeter, service indicator and codes, seat belt reminder light, DC outlet
Electronic Power Steering
Standard with quick turn rack
Heat and/or Air Conditioning
Not equipped
Ride Control
Not equipped
Seat Type
Bolstered bucket seats with driver & passenger seat slider, retractable 3-point seat belts, 2nd-row stadium-raised seating
Speed Limiting
Programmable speed limiting
Steering
Standard tilt
114
HP
64"
WIDTH
14"
GROUND CLEARANCE

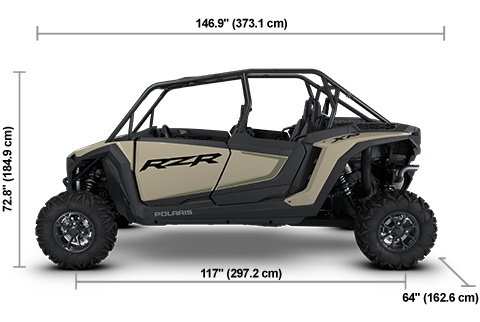

Side view of the Sand Dune 2026 Polaris RZR XP 4 Sport with height, width and length dimensions.

*Usable Travel is measured, with the vehicle in full droop, from the bottom of the tire to the bottom of the skid plate.
