RZR XP 1000 ULTIMATE STEALTH GRAY SPECIFICATIONS

Find specifications below for the 2026 Polaris RZR XP 1000 Ultimate Stealth Gray side by side. Specs include ground clearance, wheelbase, box capacity, cargo system, engine braking system, instrumentation, lighting, travel, horsepower, engine, seat type and suspension.

Change Model

Engine & Drivetrain

Cooling
Liquid
Cylinders Displacement
999 cc
Drive System Type
High-performance true on-demand AWD/2WD
Driveline Features
Not equipped
Engine Type
ProStar 1000 4-stroke DOHC twin cylinder.
Fuel System/Battery
Electronic Fuel Injection
Horsepower
114
Transmission/Final Drive
Automatic PVT P/R/N/L/H with geared reverse and high-strength clutch

Dimensions

Bed Box Dimensions (L x W x H)
28 x 22 x 7" (72.0 x 57.0 x 17.8 cm)
Box Capacity
300 lbs. (136.1 kg)
Estimated Dry Weight
1,665 lbs. (755 kg) CA 1,672 lbs. (758 kg)
Fuel Capacity
9.5 gal (35.9 L)
Ground Clearance
14.5" (36.8 cm)
Hitch Type
N/A
Overall Vehicle Size (L x W x H)
120 x 64 x 74" (304.8 x 162.6 x 188 cm)
Payload Capacity
740 lbs. (336 kg)
Person Capacity
2
Towing Capacity
N/A
Turning Radius
16.2'
Wheelbase
90" (228.6 cm)

Brakes

Front/Rear Brakes
4-wheel hydraulic disc with dual-bore front and dual-bore rear calipers
Parking Brake
Park in-transmission

Technology

Audio System
Rockford Fosgate® Stage 3 audio (including 2 front & 2 rear co-axial speakers and external 400-W amp)
Connected Vehicle Services
Not equipped, accessory options available
Rear Camera
Equipped
Security
Polaris P.A.S.S. anti-theft system
Touch Screen Display
7" Display, powered by RIDE COMMAND, which includes: rearview camera, digital instrumentation, built-in GPS, Group Ride (cell-based or GPS-based), topographic mapping, Bluetooth & USB smartphone connectivity, AM/FM & weather radio, in-vehicle communications capable with optional Sena headsets

Wheels & Tires

Front Tires
30 x 10-14 radial tire
Rear Tires
30 x 10-14 radial tire
Tire Ply Rating
8-ply
Wheels
14" cast aluminum

Suspension

Electronic Suspension Control System
Not equipped
Front Shocks
2" Walker Evans® needle shocks with 16-position adjustable clickers
Front Suspension
Dual A-arm with stabilizer bar and 20.5" (52.07 cm) usable travel*, 16" (40.6 cm) of wheel travel
Rear Shocks
2.5" Walker Evans® needle shocks with 16-position adjustable clickers
Rear Suspension
Trailing arm with stabilizer bar and 20.5" (52.07 cm) usable travel*, 18" (45.7 cm) of wheel travel

Exterior Features

Cargo System
Lock & Ride
Door Type
Half doors
Vehicle Protection
Front bumper
Winch
Integrated 4,500-lbs. winch

Lighting & Electrical

Electrical System
900-W Charging System @ 3,000 RPM, 6-Position PULSE Bar
Lighting
Signature RZR Fang Accent Lighting, LED headlights & taillights, illuminated in-cab controls

Comfort & Convenience

Cab Components
Half doors, Poly roof
Drive Modes
Not equipped
Driver Instrumentation
Displayed on center 7" display Programmable speed limiting
Electronic Power Steering
Standard with quick turn rack
Heat and/or Air Conditioning
Not equipped
Ride Control
Not equipped
Seat Type
Bolstered bucket seats with driver seat slider, retractable 3-point seat belts
Speed Limiting
Programmable speed limiting
Steering
Standard tilt
114
HP
64"
WIDTH
14.5"
GROUND CLEARANCE

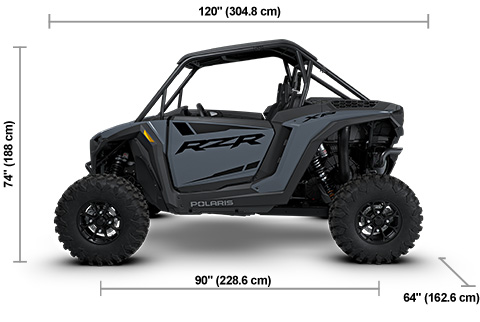

Side view of the Stealth Gray 2026 Polaris RZR XP Ultimate with height, width and length dimensions.

*Usable Travel is measured, with the vehicle in full droop, from the bottom of the tire to the bottom of the skid plate.
*Group Ride only available in North America
