RZR Pro XP Sport Sand Dune SPECIFICATIONS

Find specifications below for the 2026 Polaris RZR Pro XP Sport Sand Dune side-by-side. Specs include ground clearance, wheelbase, box capacity, cargo system, engine braking system, instrumentation, lighting, travel, horsepower, engine, seat type and suspension.

Change Model

Engine & Drivetrain

Cooling
Liquid
Cylinders Displacement
925 cc
Drive System Type
Isolated Xtreme Performance true on-demand AWD/2WD
Driveline Features
Not equipped
Engine Type
4-stroke DOHC twin-cylinder turbocharged
Fuel System/Battery
Electronic Fuel Injection
Horsepower
181
Transmission/Final Drive
Automatic PVT P/R/N/L/H

Dimensions

Bed Box Dimensions (L x W x H)
26 x 17.7 x 11.5" (66 x 45 x 29.2 cm)
Box Capacity
300 lbs. (136.1 kg)
Estimated Dry Weight
1,833 lbs (831 kg)
Fuel Capacity
12 gal. (45.4 L)
Ground Clearance
14.5" (36.8 cm)
Hitch Type
Not Equipped
Overall Vehicle Size (L x W x H)
126 x 64 x 71.7" (320 x 162.6 x 182 cm)
Payload Capacity
740 lbs. (335.7 kg)
Person Capacity
2
Towing Capacity
N/A
Wheelbase
96" (244 cm)

Brakes

Front/Rear Brakes
4-wheel hydraulic disc with triple-bore front and dual-bore rear calipers; aluminum top hat rotor
Parking Brake
Park in-transmission

Technology

Audio System
Not equipped, accessory options available
Connected Vehicle Services
Not equipped, accessory options available
Rear Camera
Not equipped
Security
Polaris P.A.S.S. anti-theft system
Touch Screen Display
Not equipped, accessory options available

Wheels & Tires

Front Tires
30 x 10-14; wheel size 14 x 6"
Rear Tires
30 x 10-14; wheel size 14 x 7"
Tire Ply Rating
8-ply
Wheels
14" cast aluminum rim with 4-lug pattern

Suspension

Electronic Suspension Control System
Not equipped
Front Shocks
2" FOX shocks with position-sensitive spiral technology and QS3 compression adjusters
Front Suspension
High-clearance dual A-arm with stabilizer bar and 20" (50.8 cm) usable travel, 17" (43.2 cm) wheel travel*
Rear Shocks
2.5" FOX shocks with position-sensitive spiral technology and QS3 compression adjusters
Rear Suspension
Trailing arm and standard-clearance radius rods with stabilizer bar and 22" (55.9 cm) usable travel, 20" (50.8 cm) wheel travel*

Exterior Features

Cargo System
Lock & Ride
Door Type
Half doors
Vehicle Protection
Not equipped
Winch
Not equipped

Lighting & Electrical

Electrical System
High-output 900-W charging system @ 3,000 RPM
Lighting
White LED low/high and red LED tail/brake lights.

Comfort & Convenience

Cab Components
Half doors
Drive Modes
Not equipped
Driver Instrumentation
Driver Forward Information Center with 4" color display + rotary speedometer & tachometers, programmable service intervals, speedometer, tachometer, odometer, tripmeter, clock, hour meter, gear indicator, fuel gauge, coolant temperature, voltmeter, service indicator and codes, seat belt reminder light, gear indicator, DC outlet, Polaris P.A.S.S anti-theft system
Electronic Power Steering
High-assist electronic power steering with quick-turn rack
Heat and/or Air Conditioning
Not equipped
Ride Control
Not equipped
Seat Type
Bolstered bucket seats with driver 4-way adjustability (including 6" front-to-back toolless seat slider with tilt adjustability) and passenger tilt adjustability with 3-pt. height-adjustable seatbelts
Speed Limiting
Not equipped
Steering
Standard steering wheel with tilt adjustment
181
HP
64"
WIDTH
14.5"
GROUND CLEARANCE

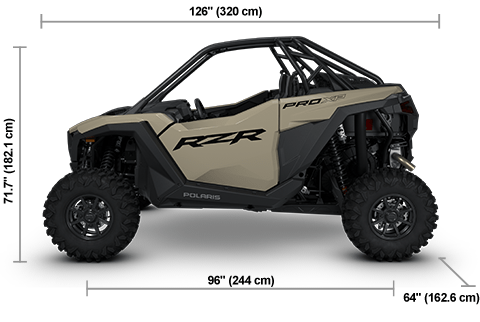

Side view of the Sand Dune 2026 Polaris RZR Pro XP Sport with height, width and length dimensions.

*Usable travel is measured, with the vehicle in full droop, from the bottom of the tire to the bottom of the skid plate.
