COMPARE RZR PRO XP MODELS
Explore RZR trim levels to find the right one for you. From standard to ultimate—and everything in between—Polaris offers a range of options to meet your needs. Use this guide to find your ideal ride.
Jump To
TRIM GUIDE

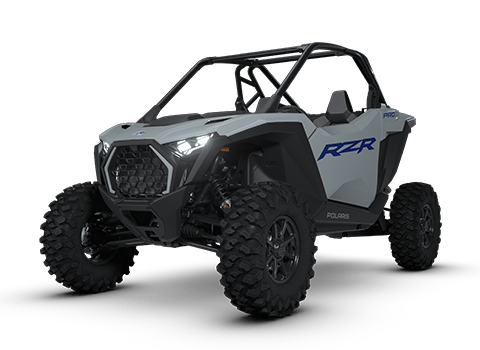

RZR Pro XP Sport
FEATURES:
• Larger Fuel Tank: 14.7 gal. (2 seat), 17.4 gal. (4 seat)
• Improved Shifting Mechanism
• 2" / 2.5" Fox® Shocks
• Fresh cabin air intakes
• 3-pt. height-adjustable seat belts
• Tilt steering
RZR Pro XP Ultimate
SPORT FEATURES, PLUS:
• 10.4" Display, Powered by RIDE COMMAND with Integrated Rear Camera
• Rockford Fosgate® Stage 4 audio with 1500W Digital Amp
• Painted center hood
• DYNAMIX smart suspension system
• FOX® 2.5 Podium Live Valve shocks
• Telescoping steering & button controls
• Aluminum roof
• High-clearance radius rods
• Animated RZR Fang Accent Lighting
• Color-matched front bull bumper
• 4-pt. harness
Specifications
Cooling
Cylinders Displacement
Drive System Type
Driveline Features
Engine Type
Fuel System/Battery
Horsepower
Transmission/Final Drive
Bed Box Dimensions (L x W x H)
Box Capacity
Estimated Dry Weight
Fuel Capacity
Ground Clearance
Hitch Type
Overall Vehicle Size (L x W x H)
Payload Capacity
Person Capacity
Towing Capacity
Wheelbase
Front/Rear Brakes
Parking Brake
Audio System
Connected Vehicle Services
Rear Camera
Security
Touch Screen Display
Front Tires
Rear Tires
Tire Ply Rating
Wheels
Electronic Suspension Control System
Front Shocks
Front Suspension
Rear Shocks
Rear Suspension
Cargo System
Door Type
Vehicle Protection
Winch
Electrical System
Lighting
Cab Components
Drive Modes
Driver Instrumentation
Electronic Power Steering
Heat and/or Air Conditioning
Ride Control
Seat Type
Speed Limiting
Steering

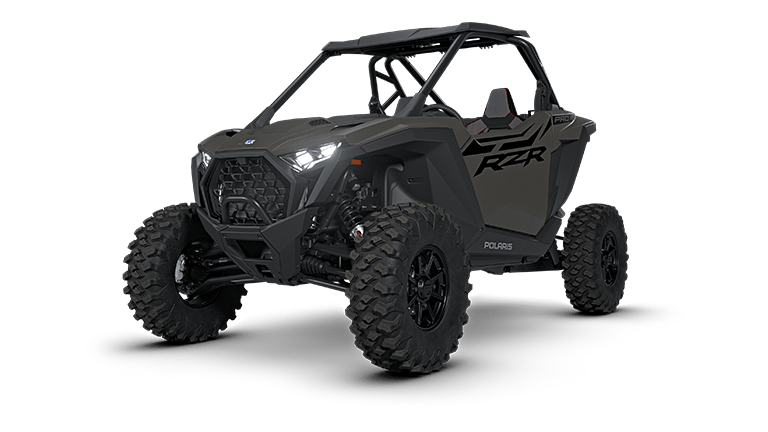

RZR Pro XP Sport Matte Granite Gray
Starting at
$24,499
US MSRP
Manufacturer’s suggested retail price (MSRP) subject to change. MSRP also excludes destination and handling fees, tax, title, license and registration. Dealer prices may vary. *Plus destination charge and set-up. Alaska destination charge may vary. May be shown with additional modifications or accessories.
Cooling
Liquid
Cylinders Displacement
925 cc
Drive System Type
Isolated Xtreme Performance true on-demand AWD/2WD
Driveline Features
Not equipped
Engine Type
4-stroke DOHC twin-cylinder turbocharged
Fuel System/Battery
Electronic Fuel Injection
Horsepower
181
Transmission/Final Drive
Automatic PVT P/R/N/L/H
Bed Box Dimensions (L x W x H)
26 x 17.7 x 11.5" (66 x 45 x 29.2 cm)
Box Capacity
300 lbs. (136.1 kg)
Estimated Dry Weight
1,852 lbs (840 kg)
Fuel Capacity
14.7 gal. (55.64 L)
Ground Clearance
14.5" (36.8 cm)
Hitch Type
Not Equipped
Overall Vehicle Size (L x W x H)
126 x 64 x 71.7" (320 x 162.6 x 182 cm)
Payload Capacity
740 lbs. (335.7 kg)
Person Capacity
2
Towing Capacity
N/A
Wheelbase
96" (244 cm)
Front/Rear Brakes
4-wheel hydraulic disc with triple-bore front and dual-bore rear calipers; aluminum top hat rotor
Parking Brake
Park in-transmission
Audio System
Not equipped, accessory options available
Connected Vehicle Services
Not equipped, accessory options available
Rear Camera
Not equipped
Security
Polaris P.A.S.S. anti-theft system
Touch Screen Display
Not equipped, accessory options available
Front Tires
30 x 10-14; wheel size 14 x 6"
Rear Tires
30 x 10-14; wheel size 14 x 7"
Tire Ply Rating
8-ply
Wheels
14" cast aluminum rim with 4-lug pattern
Electronic Suspension Control System
Not equipped
Front Shocks
2" FOX shocks with position-sensitive spiral technology and QS3 compression adjusters
Front Suspension
High-clearance dual A-arm with stabilizer bar and 20" (50.8 cm) usable travel, 17" (43.2 cm) wheel travel*
Rear Shocks
2.5" FOX shocks with position-sensitive spiral technology and QS3 compression adjusters
Rear Suspension
Trailing arm and standard-clearance radius rods with stabilizer bar and 22" (55.9 cm) usable travel, 20" (50.8 cm) wheel travel*
Cargo System
Lock & Ride
Door Type
Half doors
Vehicle Protection
Bull bumper
Winch
Not equipped
Electrical System
High-output 900-W charging system @ 3,000 RPM
Lighting
White LED low/high and red LED tail/brake lights.
Cab Components
Half doors, poly roof
Drive Modes
Not equipped
Driver Instrumentation
Driver Forward Information Center with 4" color display + rotary speedometer & tachometers, programmable service intervals, speedometer, tachometer, odometer, tripmeter, clock, hour meter, gear indicator, fuel gauge, coolant temperature, voltmeter, service indicator and codes, seat belt reminder light, gear indicator, DC outlet, Polaris P.A.S.S anti-theft system
Electronic Power Steering
High-assist electronic power steering with quick-turn rack
Heat and/or Air Conditioning
Not equipped
Ride Control
Not equipped
Seat Type
Bolstered bucket seats with driver 4-way adjustability (including 6" front-to-back toolless seat slider and tilt adjustability) and passenger tilt adjustability; 3-pt. height-adjustable seatbelts
Speed Limiting
Not equipped
Steering
Race-inspired steering wheel with tilt adjustment

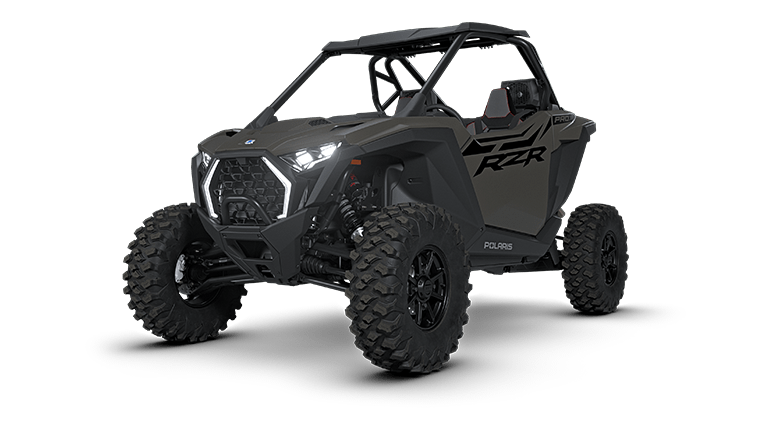

RZR Pro XP Ultimate Matte Granite Gray
Starting at
$33,999
US MSRP
Manufacturer’s suggested retail price (MSRP) subject to change. MSRP also excludes destination and handling fees, tax, title, license and registration. Dealer prices may vary. *Plus destination charge and set-up. Alaska destination charge may vary. May be shown with additional modifications or accessories.
Cooling
Liquid
Cylinders Displacement
925 cc
Drive System Type
Isolated Xtreme Performance true on-demand AWD/2WD
Driveline Features
Not equipped
Engine Type
4-stroke DOHC twin-cylinder turbocharged
Fuel System/Battery
Electronic Fuel Injection
Horsepower
181
Transmission/Final Drive
Automatic PVT P/R/N/L/H
Bed Box Dimensions (L x W x H)
26 x 17.7 x 11.5" (66 x 45 x 29.2 cm)
Box Capacity
300 lbs. (136.1 kg)
Estimated Dry Weight
1,923 lbs (872 kg)
Fuel Capacity
14.7 gal. (55.64 L)
Ground Clearance
14.5" (36.8 cm)
Hitch Type
Not Equipped
Overall Vehicle Size (L x W x H)
126.1 x 64 x 71.7" (320 x 163 x 182 cm)
Payload Capacity
740 lbs. (335.7 kg)
Person Capacity
2
Towing Capacity
N/A
Wheelbase
96" (244 cm)
Front/Rear Brakes
4-wheel hydraulic disc with triple-bore front and dual-bore rear calipers; aluminum top hat rotor
Parking Brake
Park in-transmission
Audio System
Factory-integrated, Rockford Fosgate® tuned Stage 4 audio system. Includes (1) 1500W 8-channel digital amplifier, (2) 100W 1" tweeters, (2) 100W 6.5" component front speakers, (2) 100W 6.5" coaxial rear speakers, and (1) 10" subwoofer. *Audio System is IPX7 and IPX9K water immersion tested to withstand the wet elements.
Connected Vehicle Services
Not equipped, accessory options available
Rear Camera
Digital rear camera
Security
Polaris P.A.S.S. anti-theft system
Touch Screen Display
10.4" Touchscreen HD Display powered by RIDE COMMAND, featuring Apple CarPlay®* compatibility split screen mapping with built in GPS (3D, topographic & satellite), Group Ride (cell based or vehicle-to-vehicle) with messaging, configurable gauges and controls, DYNAMIX suspension visualizer, digital audio interface with Bluetooth® audio & USB connectivity, AM/FM & weather radio, hard buttons with volume knob, and in vehicle communications capability with optional Bluetooth® headsets. *Apple CarPlay® functionality available in future software update
Front Tires
30 x 10-14; wheel size 14 x 6"
Rear Tires
30 x 10-14; wheel size 14 x 7"
Tire Ply Rating
8-ply
Wheels
14" cast aluminum rim with 4-lug pattern
Electronic Suspension Control System
Polaris DYNAMIX - Smart suspension system with onboard inertial measurement unit (IMU) and control module (SCM) actively controls compression damping on each shock at up to 200 times/sec. Selectable ride modes: Comfort, Sport, Firm
Front Shocks
FOX 2.5" Podium Live Valve with bottom-out control (electronically controlled damping)
Front Suspension
High-clearance dual A-arm with stabilizer bar and 20" (50.8 cm) usable travel, 17" (43.2 cm) wheel travel*
Rear Shocks
FOX 2.5" Podium Live Valve with bottom-out control (electronically controlled damping)
Rear Suspension
Trailing arm and high-clearance radius rods with stabilizer bar and 22" (55.9 cm) usable travel, 20" (50.8 cm) wheel travel*
Cargo System
Lock & Ride
Door Type
Half doors
Vehicle Protection
Bull bumper
Winch
Not equipped
Electrical System
High-output 900-W charging system @ 3,000 RPM
Lighting
Signature animated RZR Fang Accent Lighting; white LED low/high and red LED tail/brake lights; animated interior accent lighting.
Cab Components
Half doors, poly roof
Drive Modes
Not equipped
Driver Instrumentation
Driver Forward Information Center with 4" color display + rotary speedometer & tachometers, programmable service intervals, speedometer, tachometer, odometer, tripmeter, clock, hour meter, gear indicator, fuel gauge, coolant temperature, voltmeter, service indicator and codes, seat belt reminder light, gear indicator, DC outlet, Polaris P.A.S.S anti-theft system
Electronic Power Steering
High-assist electronic power steering with quick-turn rack
Heat and/or Air Conditioning
Not equipped
Ride Control
Not equipped
Seat Type
Bolstered bucket seats with driver-4-way adjustability (including 6" front-to-back tool-less seat slider and tilt adjustability) and passenger tilt adjustability; Sub-Zero 4-point harness.
Speed Limiting
Not equipped
Steering
Race-inspired steering wheel with tilt and telescoping adjustment; DYNAMIX and RIDE COMMAND push-button controls.

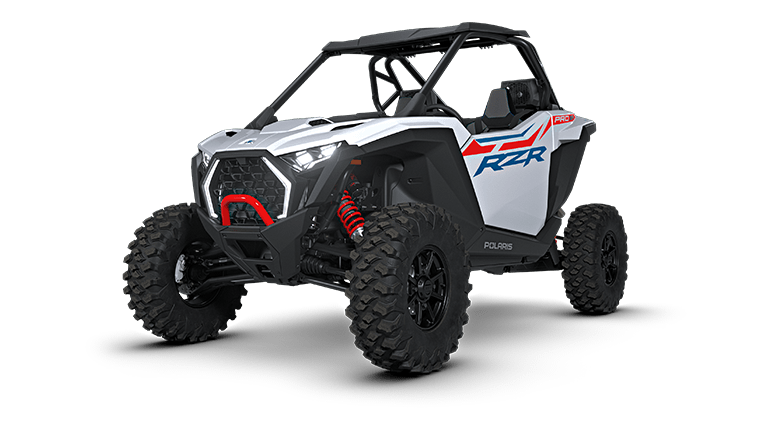

RZR Pro XP Ultimate Ghost White Metallic
Starting at
$33,999
US MSRP
Manufacturer’s suggested retail price (MSRP) subject to change. MSRP also excludes destination and handling fees, tax, title, license and registration. Dealer prices may vary. *Plus destination charge and set-up. Alaska destination charge may vary. May be shown with additional modifications or accessories.
Cooling
Liquid
Cylinders Displacement
925 cc
Drive System Type
Isolated Xtreme Performance true on-demand AWD/2WD
Driveline Features
Not equipped
Engine Type
4-stroke DOHC twin-cylinder turbocharged
Fuel System/Battery
Electronic Fuel Injection
Horsepower
181
Transmission/Final Drive
Automatic PVT P/R/N/L/H
Bed Box Dimensions (L x W x H)
26 x 17.7 x 11.5" (66 x 45 x 29.2 cm)
Box Capacity
300 lbs. (136.1 kg)
Estimated Dry Weight
1,923 lbs (872 kg)
Fuel Capacity
14.7 gal. (55.64 L)
Ground Clearance
14.5" (36.8 cm)
Hitch Type
Not Equipped
Overall Vehicle Size (L x W x H)
126.1 x 64 x 71.7" (320 x 163 x 182 cm)
Payload Capacity
740 lbs. (335.7 kg)
Person Capacity
2
Towing Capacity
N/A
Wheelbase
96" (244 cm)
Front/Rear Brakes
4-wheel hydraulic disc with triple-bore front and dual-bore rear calipers; aluminum top hat rotor
Parking Brake
Park in-transmission
Audio System
Factory-integrated, Rockford Fosgate® tuned Stage 4 audio system. Includes (1) 1500W 8-channel digital amplifier, (2) 100W 1" tweeters, (2) 100W 6.5" component front speakers, (2) 100W 6.5" coaxial rear speakers, and (1) 10" subwoofer. *Audio System is IPX7 and IPX9K water immersion tested to withstand the wet elements.
Connected Vehicle Services
Not equipped, accessory options available
Rear Camera
Digital rear camera
Security
Polaris P.A.S.S. anti-theft system
Touch Screen Display
10.4" Touchscreen HD Display powered by RIDE COMMAND, featuring Apple CarPlay®* compatibility split screen mapping with built in GPS (3D, topographic & satellite), Group Ride (cell based or vehicle-to-vehicle) with messaging, configurable gauges and controls, DYNAMIX suspension visualizer, digital audio interface with Bluetooth® audio & USB connectivity, AM/FM & weather radio, hard buttons with volume knob, and in vehicle communications capability with optional Bluetooth® headsets. *Apple CarPlay® functionality available in future software update
Front Tires
30 x 10-14; wheel size 14 x 6"
Rear Tires
30 x 10-14; wheel size 14 x 7"
Tire Ply Rating
8-ply
Wheels
14" cast aluminum rim with 4-lug pattern
Electronic Suspension Control System
Polaris DYNAMIX - Smart suspension system with onboard inertial measurement unit (IMU) and control module (SCM) actively controls compression damping on each shock at up to 200 times/sec. Selectable ride modes: Comfort, Sport, Firm
Front Shocks
FOX 2.5" Podium Live Valve with bottom-out control (electronically controlled damping)
Front Suspension
High-clearance dual A-arm with stabilizer bar and 20" (50.8 cm) usable travel, 17" (43.2 cm) wheel travel*
Rear Shocks
FOX 2.5" Podium Live Valve with bottom-out control (electronically controlled damping)
Rear Suspension
Trailing arm and high-clearance radius rods with stabilizer bar and 22" (55.9 cm) usable travel, 20" (50.8 cm) wheel travel*
Cargo System
Lock & Ride
Door Type
Half doors
Vehicle Protection
Bull bumper
Winch
Not equipped
Electrical System
High-output 900-W charging system @ 3,000 RPM
Lighting
Signature animated RZR Fang Accent Lighting; white LED low/high and red LED tail/brake lights; animated interior accent lighting.
Cab Components
Half doors, poly roof
Drive Modes
Not equipped
Driver Instrumentation
Driver Forward Information Center with 4" color display + rotary speedometer & tachometers, programmable service intervals, speedometer, tachometer, odometer, tripmeter, clock, hour meter, gear indicator, fuel gauge, coolant temperature, voltmeter, service indicator and codes, seat belt reminder light, gear indicator, DC outlet, Polaris P.A.S.S anti-theft system
Electronic Power Steering
High-assist electronic power steering with quick-turn rack
Heat and/or Air Conditioning
Not equipped
Ride Control
Not equipped
Seat Type
Bolstered bucket seats with driver-4-way adjustability (including 6" front-to-back tool-less seat slider and tilt adjustability) and passenger tilt adjustability; Sub-Zero 4-point harness.
Speed Limiting
Not equipped
Steering
Race-inspired steering wheel with tilt and telescoping adjustment; DYNAMIX and RIDE COMMAND push-button controls.
Cooling
Cylinders Displacement
Drive System Type
Driveline Features
Engine Type
Fuel System/Battery
Horsepower
Transmission/Final Drive
Bed Box Dimensions (L x W x H)
Box Capacity
Estimated Dry Weight
Fuel Capacity
Ground Clearance
Hitch Type
Overall Vehicle Size (L x W x H)
Payload Capacity
Person Capacity
Towing Capacity
Wheelbase
Front/Rear Brakes
Parking Brake
Audio System
Connected Vehicle Services
Rear Camera
Security
Touch Screen Display
Front Tires
Rear Tires
Tire Ply Rating
Wheels
Electronic Suspension Control System
Front Shocks
Front Suspension
Rear Shocks
Rear Suspension
Cargo System
Door Type
Vehicle Protection
Winch
Electrical System
Lighting
Cab Components
Drive Modes
Driver Instrumentation
Electronic Power Steering
Heat and/or Air Conditioning
Ride Control
Seat Type
Speed Limiting
Steering

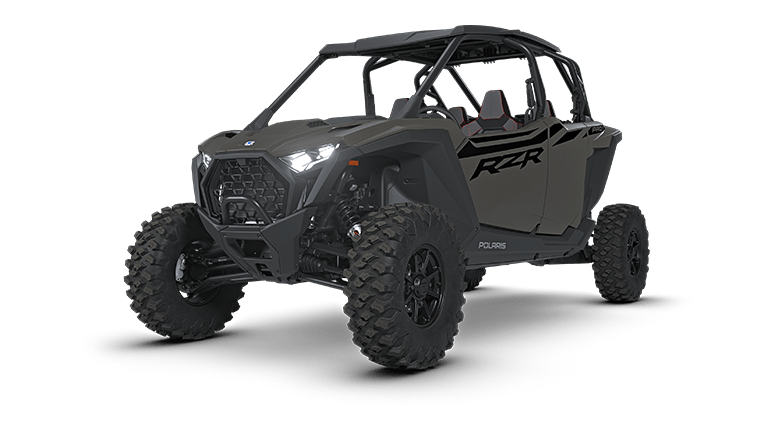

RZR Pro XP 4 Matte Granite Gray
Starting at
$27,499
US MSRP
Manufacturer’s suggested retail price (MSRP) subject to change. MSRP also excludes destination and handling fees, tax, title, license and registration. Dealer prices may vary. *Plus destination charge and set-up. Alaska destination charge may vary. May be shown with additional modifications or accessories.
Cooling
Liquid
Cylinders Displacement
925 cc
Drive System Type
Isolated Xtreme Performance true on-demand AWD/2WD
Driveline Features
Not equipped
Engine Type
4-stroke DOHC twin-cylinder turbocharged
Fuel System/Battery
Electronic Fuel Injection
Horsepower
181
Transmission/Final Drive
Automatic PVT P/R/N/L/H
Bed Box Dimensions (L x W x H)
26 x 17.7 x 11.5" (66 x 45 x 29.2 cm)
Box Capacity
300 lbs. (136.1 kg)
Estimated Dry Weight
2,123 lbs (963 kg)
Fuel Capacity
17.4 gal. (65.86 L)
Ground Clearance
14.5" (36.8 cm)
Hitch Type
Not Equipped
Overall Vehicle Size (L x W x H)
155 x 64 x 73.6" (393.7 x 162.6 x 186.9 cm)
Payload Capacity
900 lbs. (408.2 kg)
Person Capacity
4
Towing Capacity
N/A
Wheelbase
125" (317.5 cm)
Front/Rear Brakes
4-wheel hydraulic disc with triple-bore front and dual-bore rear calipers; aluminum top hat rotor
Parking Brake
Park in-transmission
Audio System
Not equipped, accessory options available
Connected Vehicle Services
Not equipped, accessory options available
Rear Camera
Not equipped
Security
Polaris P.A.S.S. anti-theft system
Touch Screen Display
Not equipped, accessory options available
Front Tires
30 x 10-14; wheel size 14 x 6"
Rear Tires
30 x 10-14; wheel size 14 x 7"
Tire Ply Rating
8-ply
Wheels
14" cast aluminum rim with 4-lug pattern
Electronic Suspension Control System
Not equipped
Front Shocks
2" FOX shocks with position-sensitive spiral technology and QS3 compression adjusters
Front Suspension
High-clearance dual A-arm with stabilizer bar and 20" (50.8 cm) usable travel, 17" (43.2 cm) wheel travel*
Rear Shocks
2.5" FOX shocks with position-sensitive spiral technology and QS3 compression adjusters
Rear Suspension
Trailing arm and standard-clearance radius rods with stabilizer bar and 22" (55.9 cm) usable travel, 20" (50.8 cm) wheel travel*
Cargo System
Lock & Ride
Door Type
Half doors
Vehicle Protection
Bull bumper
Winch
Not equipped
Electrical System
High-output 900-W charging system @ 3,000 RPM
Lighting
White LED low/high and red LED tail/brake lights.
Cab Components
Half doors, poly roof
Drive Modes
Not equipped
Driver Instrumentation
Driver Forward Information Center with 4" color display + rotary speedometer & tachometers, programmable service intervals, speedometer, tachometer, odometer, tripmeter, clock, hour meter, gear indicator, fuel gauge, coolant temperature, voltmeter, service indicator and codes, seat belt reminder light, gear indicator, DC outlet, Polaris P.A.S.S anti-theft system
Electronic Power Steering
High-assist electronic power steering with quick-turn rack
Heat and/or Air Conditioning
Not equipped
Ride Control
Not equipped
Seat Type
Bolstered bucket seats with driver- and passenger-4-way adjustability (including 6" front-to-back tool-less seat slider and tilt adjustability); 3-pt. height-adjustable seatbelts; rear stadium-style seating with 3-pt. height-adjustable seatbelts.
Speed Limiting
Not equipped
Steering
Race-inspired steering wheel with tilt adjustment

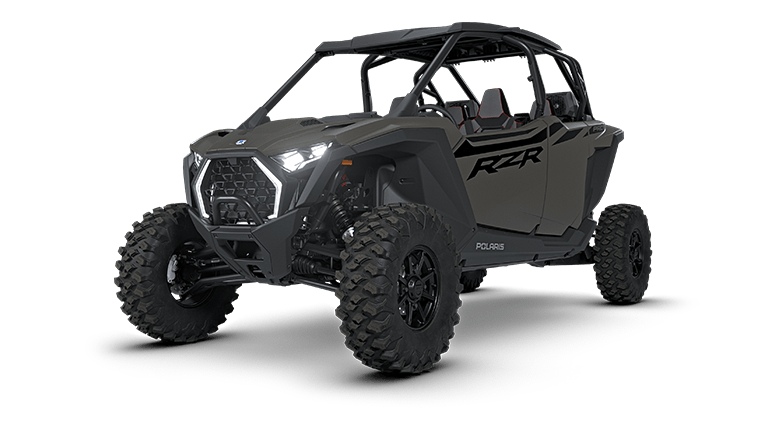

RZR Pro XP 4 Ultimate Matte Granite Gray
Starting at
$36,999
US MSRP
Manufacturer’s suggested retail price (MSRP) subject to change. MSRP also excludes destination and handling fees, tax, title, license and registration. Dealer prices may vary. *Plus destination charge and set-up. Alaska destination charge may vary. May be shown with additional modifications or accessories.
Cooling
Liquid
Cylinders Displacement
925 cc
Drive System Type
Isolated Xtreme Performance true on-demand AWD/2WD
Driveline Features
Not equipped
Engine Type
4-stroke DOHC twin-cylinder turbocharged
Fuel System/Battery
Electronic Fuel Injection
Horsepower
181
Transmission/Final Drive
Automatic PVT P/R/N/L/H
Bed Box Dimensions (L x W x H)
26 x 17.7 x 11.5" (66 x 45 x 29.2 cm)
Box Capacity
300 lbs. (136.1 kg)
Estimated Dry Weight
2,205 lbs (1000 kg)
Fuel Capacity
17.4 gal. (65.86 L)
Ground Clearance
14.5" (36.8 cm)
Hitch Type
Not Equipped
Overall Vehicle Size (L x W x H)
155 x 64 x 73.6" (393.7 x 162.6 x 186.9 cm)
Payload Capacity
900 lbs. (408.2 kg)
Person Capacity
4
Towing Capacity
N/A
Wheelbase
125" (317.5 cm)
Front/Rear Brakes
4-wheel hydraulic disc with dual-bore XL front and dual-bore rear calipers
Parking Brake
Park in-transmission
Audio System
Factory-tuned and integrated Rockford Fosgate Stage 4 audio system with RIDE COMMAND source unit. Includes: (2) 100-W 1" tweeters, (2) 100-W 6.5" component front speakers, (2) 100-W 6.5" coaxial rear speakers, (1) 400-W 4-channel amplifier, and (1) 10" subwoofer with an integrated 400-W subwoofer amplifier. *Audio system is IPX7- and IPX9K-water immersion tested to withstand the wet elements.
Connected Vehicle Services
Not equipped, accessory options available
Rear Camera
Digital rear camera
Security
Polaris P.A.S.S. anti-theft system
Touch Screen Display
10.4" Touchscreen HD Display powered by RIDE COMMAND, featuring Apple CarPlay®* compatibility split screen mapping with built in GPS (3D, topographic & satellite), Group Ride (cell based or vehicle-to-vehicle) with messaging, configurable gauges and controls, DYNAMIX suspension visualizer, digital audio interface with Bluetooth® audio & USB connectivity, AM/FM & weather radio, hard buttons with volume knob, and in vehicle communications capability with optional Bluetooth® headsets. *Apple CarPlay® functionality available in future software update
Front Tires
30 x 10-14; wheel size 14 x 6"
Rear Tires
30 x 10-14; wheel size 14 x 7"
Tire Ply Rating
8-ply
Wheels
14" cast aluminum rim with 4-lug pattern
Electronic Suspension Control System
Polaris DYNAMIX - Smart suspension system with onboard inertial measurement unit (IMU) and control module (SCM) actively controls compression damping on each shock at up to 200 times/sec. Selectable ride modes: Comfort, Sport, Firm
Front Shocks
FOX 2.5" Podium Live Valve with bottom-out control (electronically controlled damping)
Front Suspension
High-clearance dual A-arm with stabilizer bar and 20" (50.8 cm) usable travel, 17" (43.2 cm) wheel travel*
Rear Shocks
FOX 2.5" Podium Live Valve with bottom-out control (electronically controlled damping)
Rear Suspension
Trailing arm and high-clearance radius rods with stabilizer bar and 22" (55.9 cm) usable travel, 20" (50.8 cm) wheel travel*
Cargo System
Lock & Ride; convertible fold-flat rear seat storage with integrated tie-down points, 27.7 x 52.8 x 19.5" (70.4 x 134.1 x 49.53 cm)
Door Type
Half doors
Vehicle Protection
Bull bumper
Winch
Not equipped
Electrical System
High-output 900-W charging system @ 3,000 RPM
Lighting
Signature animated RZR Fang Accent Lighting; white LED low/high and red LED tail/brake lights; animated interior accent lighting.
Cab Components
Half doors, poly roof
Drive Modes
Not equipped
Driver Instrumentation
Driver Forward Information Center with 4" color display + rotary speedometer & tachometers, programmable service intervals, speedometer, tachometer, odometer, tripmeter, clock, hour meter, gear indicator, fuel gauge, coolant temperature, voltmeter, service indicator and codes, seat belt reminder light, gear indicator, DC outlet, Polaris P.A.S.S anti-theft system
Electronic Power Steering
High-assist electronic power steering with quick-turn rack
Heat and/or Air Conditioning
Not equipped
Ride Control
Not equipped
Seat Type
Bolstered bucket seats with driver- and passenger-4-way adjustability (including 6" front-to-back tool-less seat slider and tilt adjustability); 3-pt. height-adjustable seatbelts; rear stadium-style seating with 3-pt. height-adjustable seatbelts.
Speed Limiting
Not equipped
Steering
Race-inspired steering wheel with tilt and telescoping adjustment; DYNAMIX and RIDE COMMAND push-button controls.

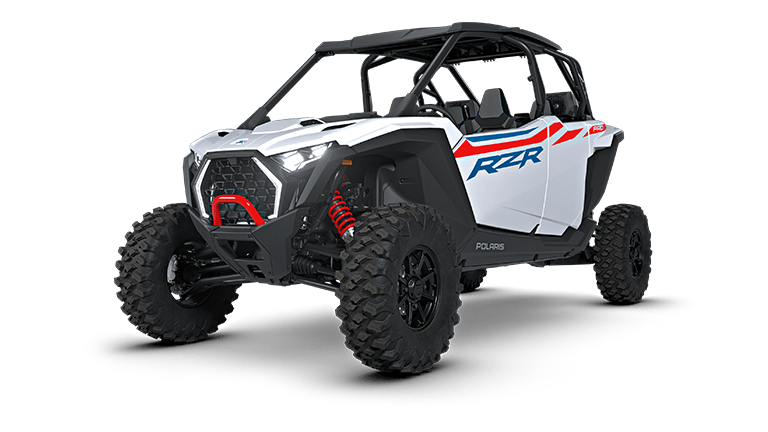

RZR Pro XP 4 Ultimate Ghost White Metallic
Starting at
$36,999
US MSRP
Manufacturer’s suggested retail price (MSRP) subject to change. MSRP also excludes destination and handling fees, tax, title, license and registration. Dealer prices may vary. *Plus destination charge and set-up. Alaska destination charge may vary. May be shown with additional modifications or accessories.
Cooling
Liquid
Cylinders Displacement
925 cc
Drive System Type
Isolated Xtreme Performance true on-demand AWD/2WD
Driveline Features
Not equipped
Engine Type
4-stroke DOHC twin-cylinder turbocharged
Fuel System/Battery
Electronic Fuel Injection
Horsepower
181
Transmission/Final Drive
Automatic PVT P/R/N/L/H
Bed Box Dimensions (L x W x H)
26 x 17.7 x 11.5" (66 x 45 x 29.2 cm)
Box Capacity
300 lbs. (136.1 kg)
Estimated Dry Weight
2,205 lbs (1000 kg)
Fuel Capacity
17.4 gal. (65.86 L)
Ground Clearance
14.5" (36.8 cm)
Hitch Type
Not Equipped
Overall Vehicle Size (L x W x H)
155 x 64 x 73.6" (393.7 x 162.6 x 186.9 cm)
Payload Capacity
900 lbs. (408.2 kg)
Person Capacity
4
Towing Capacity
N/A
Wheelbase
125" (317.5 cm)
Front/Rear Brakes
4-wheel hydraulic disc with dual-bore XL front and dual-bore rear calipers
Parking Brake
Park in-transmission
Audio System
Factory-tuned and integrated Rockford Fosgate Stage 4 audio system with RIDE COMMAND source unit. Includes: (2) 100-W 1" tweeters, (2) 100-W 6.5" component front speakers, (2) 100-W 6.5" coaxial rear speakers, (1) 400-W 4-channel amplifier, and (1) 10" subwoofer with an integrated 400-W subwoofer amplifier. *Audio system is IPX7- and IPX9K-water immersion tested to withstand the wet elements.
Connected Vehicle Services
Not equipped, accessory options available
Rear Camera
Digital rear camera
Security
Polaris P.A.S.S. anti-theft system
Touch Screen Display
10.4" Touchscreen HD Display powered by RIDE COMMAND, featuring Apple CarPlay®* compatibility split screen mapping with built in GPS (3D, topographic & satellite), Group Ride (cell based or vehicle-to-vehicle) with messaging, configurable gauges and controls, DYNAMIX suspension visualizer, digital audio interface with Bluetooth® audio & USB connectivity, AM/FM & weather radio, hard buttons with volume knob, and in vehicle communications capability with optional Bluetooth® headsets. *Apple CarPlay® functionality available in future software update
Front Tires
30 x 10-14; wheel size 14 x 6"
Rear Tires
30 x 10-14; wheel size 14 x 7"
Tire Ply Rating
8-ply
Wheels
14" cast aluminum rim with 4-lug pattern
Electronic Suspension Control System
Polaris DYNAMIX - Smart suspension system with onboard inertial measurement unit (IMU) and control module (SCM) actively controls compression damping on each shock at up to 200 times/sec. Selectable ride modes: Comfort, Sport, Firm
Front Shocks
FOX 2.5" Podium Live Valve with bottom-out control (electronically controlled damping)
Front Suspension
High-clearance dual A-arm with stabilizer bar and 20" (50.8 cm) usable travel, 17" (43.2 cm) wheel travel*
Rear Shocks
FOX 2.5" Podium Live Valve with bottom-out control (electronically controlled damping)
Rear Suspension
Trailing arm and high-clearance radius rods with stabilizer bar and 22" (55.9 cm) usable travel, 20" (50.8 cm) wheel travel*
Cargo System
Lock & Ride; convertible fold-flat rear seat storage with integrated tie-down points, 27.7 x 52.8 x 19.5" (70.4 x 134.1 x 49.53 cm)
Door Type
Half doors
Vehicle Protection
Bull bumper
Winch
Not equipped
Electrical System
High-output 900-W charging system @ 3,000 RPM
Lighting
Signature animated RZR Fang Accent Lighting; white LED low/high and red LED tail/brake lights; animated interior accent lighting.
Cab Components
Half doors, poly roof
Drive Modes
Not equipped
Driver Instrumentation
Driver Forward Information Center with 4" color display + rotary speedometer & tachometers, programmable service intervals, speedometer, tachometer, odometer, tripmeter, clock, hour meter, gear indicator, fuel gauge, coolant temperature, voltmeter, service indicator and codes, seat belt reminder light, gear indicator, DC outlet, Polaris P.A.S.S anti-theft system
Electronic Power Steering
High-assist electronic power steering with quick-turn rack
Heat and/or Air Conditioning
Not equipped
Ride Control
Not equipped
Seat Type
Bolstered bucket seats with driver- and passenger-4-way adjustability (including 6" front-to-back tool-less seat slider and tilt adjustability); 3-pt. height-adjustable seatbelts; rear stadium-style seating with 3-pt. height-adjustable seatbelts.
Speed Limiting
Not equipped
Steering
Race-inspired steering wheel with tilt and telescoping adjustment; DYNAMIX and RIDE COMMAND push-button controls.
