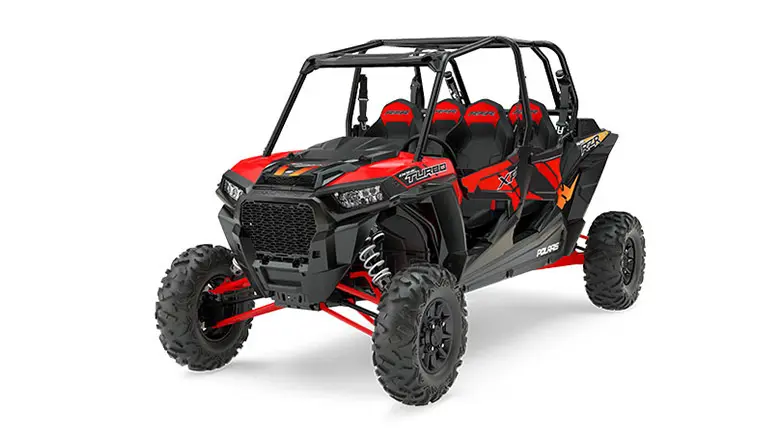

RZR XP® 4 TURBO EPS CRUISER BLACK

Engine & Drivetrain

Cooling
Liquid
Cylinders Displacement
925cc
Drive System Type
High Performance True On-Demand AWD/2WD
Engine Braking System (EBS)
Not Equipped
Engine Type
ProStar Turbo H.O.; 4-Stroke DOHC Twin Cylinder Turbocharged
Fuel System/Battery
Electronic Fuel Injection
Horsepower
168 HP
Transmission/Final Drive
Automatic PVT P/R/N/L/H

Dimensions

Bed Box Dimensions (L x W x H)
28 x 22 x 7 in (72.0 x 57.0 x 17.8 cm)
Box Capacity
300 lb (136.1 kg)
Estimated Dry Weight
1,691 lb (767 kg)
Fuel Capacity
9.5 gal (35.9 L)
Ground Clearance
13.5 in (34.3 cm)
Overall Vehicle Size (L x W x H)
146 x 64 x 73.75 in (370.8 x 162.6 x 187.3 cm)
Payload Capacity
900 lb (408 kg)
Person Capacity
4
Wheelbase
117 in (297.2 cm)

Brakes

Front/Rear Brakes
4-Wheel Hydraulic Disc with Triple-Bore Front and Dual-Bore Rear Calipers
Parking Brake
Park In-Transmission

Additional Specifications

Cargo System
Lock & Ride®
Electronic Power Steering
Standard
Front Shocks
2.5 in FOX Podium Internal Bypass Shocks with 24-Position Adjustable Clickers
Front Suspension
Dual A-Arm with Stabilizer Bar and 16 in (40.6 cm) Travel
Ingress / Egress
Bowed 1/4 Doors
Instrumentation
New Digital Gauge, Speedometer, Odometer, Tripmeter, Tachometer, Coolant Temperature, Volt Meter, Hour Meter, Service Indicator, Clock, Gear Indicator, Fuel Gauge, Hi-Temp Light, Seatbelt Reminder Light, 2 DC Outlets (front and rear)
Lighting
White LED, Low/High, Red LED Tail/Brake Lights
Rear Shocks
3" FOX Podium Internal Bypass Shocks with 24-Position Adjustable Clickers (Remote Reservoir)
Rear Suspension
Trailing Arm with Stabilizer Bar and 18 in (45.7 cm) Travel
Seatbelts
Bolstered Bucket Seats with Front Seat Sliders and Rear Height Adjustable Seat Belts

Tires / Wheels

Front Tires
29 x 9-14; Maxxis Bighorn
Rear Tires
29 x 11-14; Maxxis Bighorn
Wheels
Cast Aluminum
