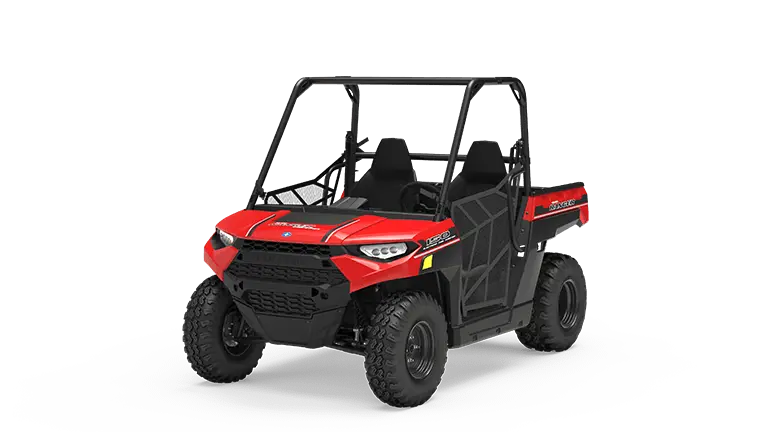

RANGER 150 EFI Solar Red

Engine & Drivetrain

Cooling
Air & Oil
Cylinders Displacement
150 cc
Drive System Type
2WD
Engine Type
4-Stroke Single Cylinder
Fuel System/Battery
Electronic Fuel Injection
Horsepower
N/A
Transmission/Final Drive
Automatic PVT F/N/R; Chain

Dimensions

Bed Box Dimensions (L x W x H)
21 x 42 x 5" (53.3 x 106.7 x 12.7 cm)
Box Capacity
50 lb (22.7 kg)
Estimated Dry Weight
673 lb (305 kg)
Fuel Capacity
2.5 gal (9.5 L)
Ground Clearance
8 in (203 mm)
Hitch Towing Rating
N/A
Overall Vehicle Size (L x W x H)
85 x 48 x 58 in (215.9 x 121.9 x 147.3 cm)
Payload Capacity
50 lb (22.7 kg)
Seat Height
N/A
Wheelbase
65 in (165.1 cm)

Brakes

Front/Rear Brakes
4-Wheel Hydraulic Disc
Parking Brake
Hand-Actuated

Additional Specifications

Cargo System
N/A
Electronic Power Steering
Not Equipped
Hitch Type
N/A
Instrumentation
Digital Display with gear indicator, odometer, trip meter, voltage, engine temperature, engine hour meter, programmable service hour interval, ground speed, engine RPM, GeoFence status, clock, or speed limit status
Lighting
LED Day Time Running Lights, Single Rear Brakelight/Taillight

Tires / Wheels

Front Tires
22 x 7-10 Wanda
Rear Tires
22 x 10-10 Wanda
Wheels
Stamped Steel

Suspension

Front Suspension
Dual A-Arm 5.1 in (13 cm) Travel
Rear Suspension
Swingarm Dual Shocks with 6 in (15.2 cm) Travel
