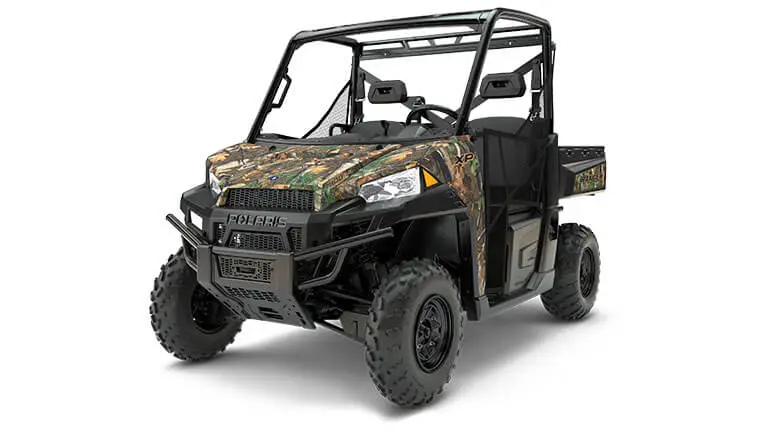

RANGER XP® 900 POLARIS PURSUIT CAMO

Engine & Drivetrain

Active Descent Control
Not Equipped
Cooling
Liquid
Cylinders Displacement
875cc
Drive System Type
High Performance True On-Demand AWD/2WD
Engine Braking System (EBS)
Not Equipped
Engine Type
4-Stroke Twin Cylinder
Fuel System/Battery
Electronic Fuel Injection
Transmission/Final Drive
Automatic PVT H/L/N/R/P; Shaft

Dimensions

Bed Box Dimensions (L x W x H)
36.5 x 54 x 11.5 in (93 x 137 x 29 cm)
Box Capacity
1,000 lb (454 kg)
Estimated Dry Weight
1,318 lb (598 kg)
Fuel Capacity
10 gal (37.9 L)
Ground Clearance
12 in (30.5 cm)
Overall Vehicle Size (L x W x H)
116.5 x 60 x 76 in (296 x 152 x 193 cm)
Payload Capacity
1,500 lbs (680.4 kg)
Person Capacity
3
Wheelbase
81 in (206 cm)

Brakes

Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front Calipers
Parking Brake
Park In-Transmission

Additional Specifications

Adjustable Driver Seat
Not Equipped
Cargo System
Lock & Ride®
Front Suspension
Dual A-Arm 10 in. (25.4 cm) Travel
Hitch Towing Rating
2,000 lb (907 kg)
Hitch Type
Standard 2 in (5 cm) Receiver
Instrumentation
Digital Gauge, Speedometer, Odometer, Tachometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Hi-Temp, Coolant Temperature, Volt Meter, Service Indicator, Seat Belt Reminder, DC Outlets (2)
Lighting
55W low/ 60W high, LED Tail
Lock & Ride ProFit Cab System
Lock and Ride® Pro Fit Compatible
Rear Suspension
Dual A-Arm, IRS 10 in. (25.4 cm) Travel
Unbraked Trailer Towing Capacity
N/A

Tires / Wheels

Electronic Power Steering
Optional Accessory
Front Tires
25 x 10 -12; 489
Rear Tires
25 x 11-12; 489
Wheels
Stamped Steel
