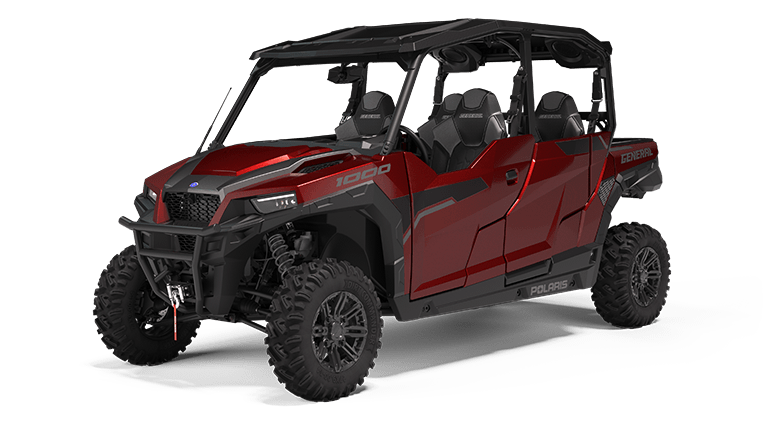

GENERAL 4 1000 Deluxe Ride Command Edition Burgundy Metallic
Engine & Drivetrain
Cooling
Liquid
Cylinders Displacement
999cc
Drive System Type
On-Demand True AWD/2WD/VersaTrac Turf Mode
Engine Type
ProStar 1000 4-Stroke DOHC Twin Cylinder
Fuel System/Battery
Electronic Fuel Injection
Horsepower
100 HP
Transmission/Final Drive
Automatic PVT P/R/N/L/H
Dimensions
Bed Box Dimensions (L x W x H)
27.5 x 43.1 x 11.6 in (69.8 x 109 x 29.5 cm)
Box Capacity
600 lb (272 kg) Rear Dumping Box
Dry Weight
1,860 lb (844 kg)
Fuel Capacity
9.5 gal (35.9 L)
Ground Clearance
12 in (30.5 cm)
Overall Vehicle Size (L x W x H)
150.2 x 62.5 x 75 in (381.5 x 158.7 x 190.5 cm)
Payload Capacity
1,280 lb (580 kg)
Person Capacity
4
Stance
60” (152.4 cm)
Wheelbase
113 in (287 cm)
Brakes
Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers
Parking Brake
Park In-Transmission
Additional Specifications
Cargo System
Lock & Ride®
Front Shocks
FOX 2.0 PODIUM QS3
Front Suspension
Dual A-Arm with Stabilizer Bar 12.25 in (31.1 cm) Travel
Hitch Towing Rating
1,500 lb (680 kg)
Hitch Type
Standard 2 in (5 cm) Receiver
Ingress / Egress
Half Doors Standard
Instrumentation
Dual-sweep Analog Dials w/ 4"" LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder Light, Gear Indicator, DC Outlet | Factory Choice: RIDE COMMAND™ 7” Glove-Touch Display: Digital Instrumentation, Built-In GPS, Mapping, Bluetooth & USB Smartphone Connectivity, AM/FM & Weather Radio, In-Vehicle Communications Capable, Front and Rear On-board Cameras, and Ride Command App Integration (Group Ride, Follow the Leader, Ride Stat Tracking) | ROCKFORD FOSGATE Stage 4 Audio: 400 Watt Amp, (2) 6.5"" Front Speakers, (2) 6.5"" Rear Speakers, and Underdash 10"" Subwoofer
Lighting
LED Headlight w/ Accent & LED Taillights
Other Standard Features
POLARIS HD 4500 LB Winch, Sport Low Profile Front Bumper, ProFit Sport Roof, Convex Rear View Mirror, Stage 1 Rockford Fosgate Audio (If not F&O Upgraded via RC or RF Stage 3)
Rear Shocks
FOX 2.0 PODIUM QS3
Rear Suspension
Dual Arm IRS with Stabilizer Bar 13.2 in (33.5 cm) Travel
Seat Type
Bolstered Bucket Seats with Driver Seat Slider and Height Adjustable Seat Belts
Tilt Steering
Standard
Tires / Wheels
Electronic Power Steering
Standard
Front Tires
27 x 9-14; Dirt Commander
Rear Tires
27 x 11-14; Dirt Commander
Wheels
Cast Aluminum
