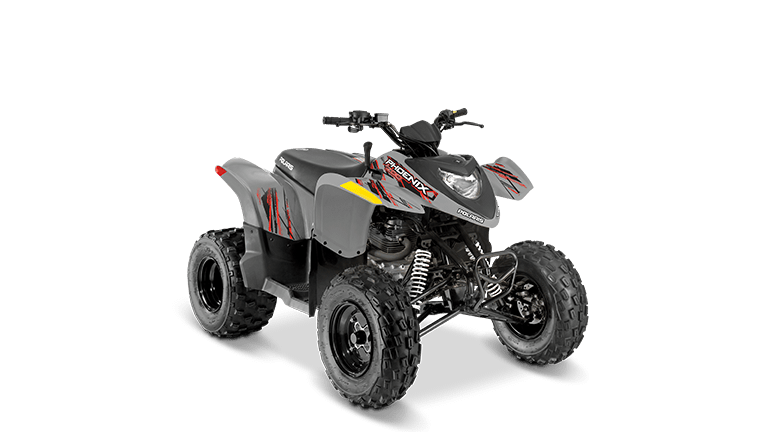

Phoenix® 200 Avalanche Gray
Engine & Drivetrain
Cooling
Air
Cylinders Displacement
196cc
Drive System Type
2WD
Engine Type
4-Stroke Single Cylinder
Fuel System/Battery
Carbureted
Horsepower
N/A
Transmission/Final Drive
Automatic PVT F/N/R; Shaft
Dimensions
Bed Box Dimensions (L x W x H)
N/A
Box Capacity
N/A
Estimated Dry Weight
420 lb (191 kg)
Front Rack Capacity
N/A
Fuel Capacity
2.5 gal (9.5 L)
Ground Clearance
5.7 in (14.5 cm)
Overall Vehicle Size (L x W x H)
65 x 42 x 42 in (165.1 x 106.7 x 106.7 cm)
Rear Rack Capacity
N/A
Seat Height (Laden)
32 in (81.3 cm)
Wheelbase
45 in (114.3 cm)
Brakes
Front/Rear Brakes
Front Hydraulic Disc; Rear Mechanical Drum; (Independent front/rear brake levers plus rear foot brake)
Parking Brake
Lockable Hand Lever
Additional Specifications
Instrumentation
N/R Light
Lighting
Single Hi/Low Headlight, Single Rear Brakelight/Taillight
Other Standard Features
Safety Flag, Parent-Adjustable Speed Limiter, 1 Color Matched Youth Helmet, Training DVD
Tires / Wheels
Front Tires
21 x 7-10; Duro
Rear Tires
20 x 10-9 Duro
Wheels
Stamped Steel
Suspension
Front Suspension
Dual A-Arm with 7 in (17.8 cm) Travel
Rear Suspension
Mono-Shock Swingarm with 6.5 in (16.5 cm) Travel
