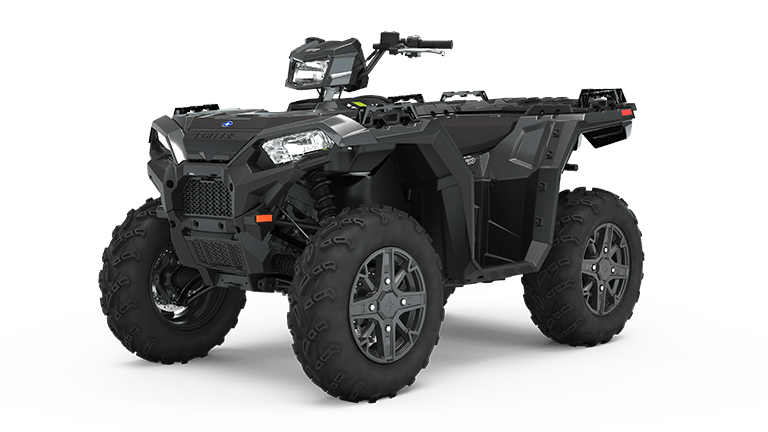

Sportsman XP 1000 Premium Stealth Gray

Engine & Drivetrain

Active Descent Control
Cylinders Displacement
2 / 952cc
Drive System Type
True On-Demand AWD/2WD
Engine Braking System (EBS)
Engine Type
ProStar SOHC 4-Stroke Twin Cylinder
Fuel System/Battery
Electronic Fuel Injection
90 HP
Transmission/Final Drive
Automatic PVT P/R/N/L/H; Shaft Drive


Bed Box Dimensions (L x W x H)
Estimated Dry Weight
801 lb (363 kg)
Front/Rear Rack
120 lb /240 lb (55 kg / 110 kg)
Fuel Capacity
5.25 gal (19.9 L)
Ground Clearance
12 in (30.5 cm)
Overall Vehicle Size (L x W x H)
83.25 x 47.6 x 50.75 in (211.4 x 120.9 x 128.9 cm)
Payload Capacity
575 lb (261 kg)
Seat Height (Laden)
37 in (94 cm)
53 in (134.6 cm)


Front/Rear Brakes
Single Lever 4-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake
Parking Brake
Park In-Transmission / Lockable Hand Lever

Additional Specifications

Cargo System
Lock & Ride, 2 Cast Rack Extenders 4 Gal (15 L) Front Dry Storage 2 Gal (8 L) Rear Storage
Front Suspension
Straight Dual A-Arm 9 in (22.9 cm) Travel
Hitch Towing Rating
1,500 lb (680 kg)
Hitch Type
Standard 1.25 in (3.2 cm) Receiver
All Digital Gauge, Speedometer, Odometer, Tachometer, Two Tripmeters, Hour Meter, Gear Indicator, Fuel Gauge, AWD Indicator, Volt Meter, Coolant Temperature, Hi-Temp Light, Clock, DC Outlet
50w High Beam, Dual 50w Low Beam Headlights
Other Standard Features
6 Rack Extenders
Rear Suspension
Straight Dual A-Arm, Rolled IRS, 10.25 in (26 cm) Travel

Tires / Wheels

Electronic Power Steering
Front Tires
26 x 8-14; CST
Rear Tires
26 x 10-14; CST
14 in. (35.6 cm) Aluminum
