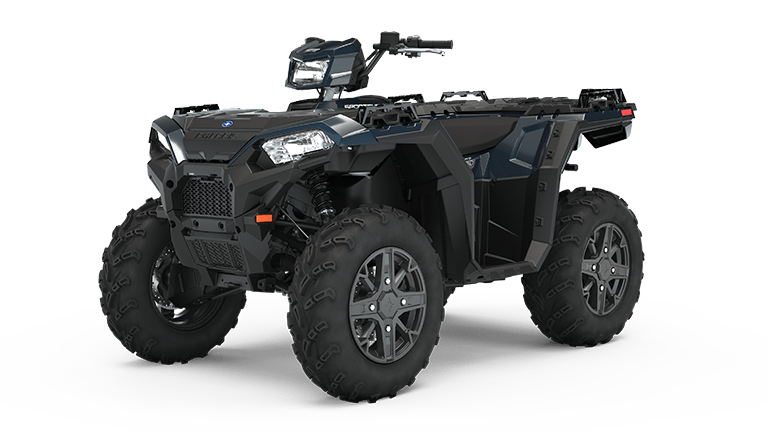

Sportsman 850 Premium Steel Blue
Engine & Drivetrain
Active Descent Control
Standard
Cooling
Liquid
Cylinders Displacement
2 / 850cc
Drive System Type
True On-Demand AWD/2WD
Engine Braking System (EBS)
Standard
Engine Type
ProStar SOHC 4-Stroke Twin Cylinder
Fuel System/Battery
Electronic Fuel Injection
Horsepower
78 HP
Transmission/Final Drive
Automatic PVT P/R/N/L/H; Shaft Drive
Dimensions
Bed Box Dimensions (L x W x H)
N/A
Estimated Dry Weight
785 lb (357 kg)
Front/Rear Rack
120 lb (55 kg)/240 lb (110 kg)
Fuel Capacity
5.25 gal (19.9 L)
Ground Clearance
11.5 in (29 cm)
Overall Vehicle Size (L x W x H)
83.25 x 47.6 x 50.75 in (211.4 x 120.9 x 128.9 cm)
Payload Capacity
575 lb (261 kg)
Seat Height (Laden)
37 in (94 cm)
Wheelbase
53 in (134.6 cm)
Brakes
Front/Rear Brakes
Single Lever 3-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake
Parking Brake
Park In-Transmission / Lockable Hand Lever
Additional Specifications
Cargo System
Lock & Ride, 2 Cast Rack Extenders 4 Gal (15 L) Front Dry Storage 2 Gal (8 L) Rear Storage
Front Suspension
Straight Dual A-Arm 9 in (22.9 cm) Travel
Hitch Towing Rating
1,500 lb (680 kg)
Hitch Type
Standard 1.25 in (3.2 cm) Receiver
Instrumentation
All Digital Gauge, Speedometer, Odometer, Tachometer, Two Tripmeters, Hour Meter, Gear Indicator, Fuel Gauge, AWD Indicator, Volt Meter, Coolant Temperature, Hi-Temp Light, Clock, DC Outlet
Lighting
50w High Beam, Dual 50w Low Beam Headlights
Other Standard Features
6 Rack Extenders
Rear Suspension
Straight Dual A-Arm, Rolled IRS, 10.25 in (26 cm) Travel
Tires / Wheels
Electronic Power Steering
Standard
Front Tires
26 x 8 CST
Rear Tires
26 x 10 CST
Wheels
14 in. (35.6 cm) Aluminum
