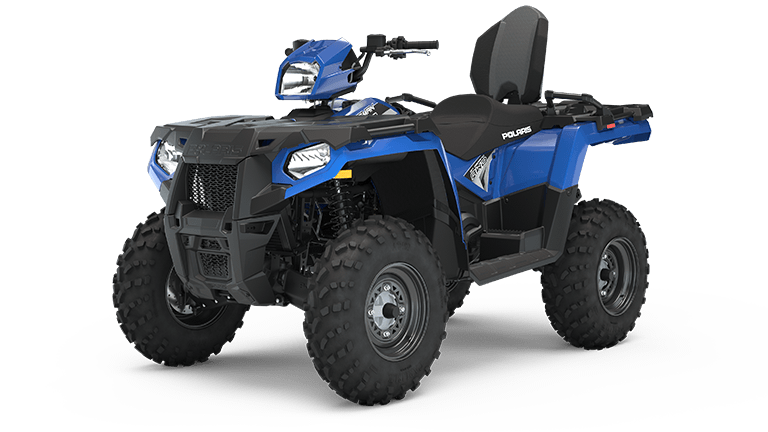

Sportsman Touring 570 Sonic Blue

Engine & Drivetrain

Active Descent Control
Not Equipped
Cooling
Liquid
Cylinders Displacement
567cc
Drive System Type
True On-Demand AWD/2WD
Engine Braking System (EBS)
Not Equipped
Engine Type
ProStar 4-Stroke DOHC Single Cylinder
Fuel System/Battery
Electronic Fuel Injection
Horsepower
44 HP
Transmission/Final Drive
Automatic PVT P/R/N/L/H; Shaft

Dimensions

Bed Box Dimensions (L x W x H)
N/A
Estimated Dry Weight
728 lb (330 kg)
Front/Rear Rack
90 lb / 180 lb (41 kg / 82 kg)
Fuel Capacity
6.75 gal (25.5 L)
Ground Clearance
11 in (27.9 cm)
Overall Vehicle Size (L x W x H)
86 x 48 x 48 in (218.4 x 121.9 x 121.9 cm)
Payload Capacity
485 lb (220 kg)
Seat Height (Laden)
33.75 in (85.7 cm)
Wheelbase
56 in (142.2 cm)

Brakes

Front/Rear Brakes
Single Lever 3-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake
Parking Brake
Park In-Transmission / Lockable Hand Lever

Additional Specifications

Cargo System
Lock & Ride, 6 Gal (23 L) Front Dry Storage, 2 Gal (8 L) Rear Storage
Front Suspension
MacPherson Strut With 8.2 in (20.8 cm) Travel
Hitch Towing Rating
1,225 lb (555.7 kg)
Hitch Type
Standard 1.25 in (3.2 cm) Receiver
Instrumentation
All Digital Gauge, Speedometer, Odometer, Tachometer, 2 Tripmeters, Hour Meter, Gear Indicator, Fuel Gauge, AWD Indicator, Volt Meter, Coolant Temperature, Hi-Temp Light, Clock, DC Outlet
Lighting
50w High Beam, Dual 50w Low Beam Headlights, Dual Brakelights/Taillights
Rear Suspension
Dual A-Arm, IRS 9.5 in (24.1 cm) Travel

Tires / Wheels

Electronic Power Steering
Not Equipped
Front Tires
25 x 8-12; 489
Rear Tires
25 x 10-12; 489
Wheels
Stamped Steel
