Sportsman 570 Ultimate Turbo Silver SPECIFICATIONS

Find specifications below for the 2026 Polaris Sportsman 570 Ultimate Turbo Silver ATV. Specs include engine, horsepower, transmission/final drive, ground clearance, travel, engine braking system, instrumentation, lighting, suspension, payload capacity, hitch type, towing capacity, cargo system and tires.

Engine & Drivetrain

Cooling
Liquid
Cylinders Displacement
567 cc
Drive System Type
One-touch on-demand AWD/2WD
Driveline Features
Includes: engine braking system (EBS), Active Descent Control (ADC)
Engine Type
ProStar 4-stroke DOHC single cylinder
Fuel System/Battery
Electronic fuel injection / 340 CCA
Horsepower
44
Transmission/Final Drive
Automatic PVT P/R/N/L/H in-line shifting

Dimensions

Estimated Dry Weight
875 lbs. (397 kg)
Front/Rear Rack Capacity
90 lbs. (40.8 kg) / 180 lbs. (81.6 kg)
Fuel Capacity
4.5 gal (17.0 L)
Ground Clearance
11.5" (29 cm)
Hitch Type
Standard 1.25" (3.2 cm) receiver
Overall Vehicle Size (L x W x H)
83 x 48 x 47" (210.8 x 121.9 x 119.4 cm)
Payload Capacity
485 lbs. (220 kg)
Person Capacity
1
Seat Height
33.25" (84.5 cm)
Towing Capacity
1,350 lbs. (612 kg)
Wheelbase
50.5" (128.3 cm)

Brakes

Front/Rear Brakes
Single lever, 3-wheel hydraulic disc with hydraulic rear foot brake
Parking Brake
Park in-transmission / lockable hand lever

Technology

Connected Vehicle Services
Not equipped, accessory options available
Touch Screen Display
Equipped with 7" Display powered by RIDE COMMAND: Plow Mode, Group Ride, GPS navigation, Bluetooth

Wheels & Tires

Front Tires
26 x 8-14; Duro
Rear Tires
26 x 10-14; Duro
Wheels
14" (35.6 cm) aluminum

Suspension

Front Suspension
Sealed arched dual A-arm 8.9" (22.6 cm) travel
Rear Suspension
Sealed Dual A-Arm, IRS 9.5" (24.1 cm) Travel

Exterior Features

Cargo System
Lock & Ride-compatible, 5 gal (18.9L) front dry storage, 6 gal (27.3L) rear dry storage
Vehicle Protection
Front-trail bumper, front and rear rack extenders, painted plastics, painted springs, front and rear A-arm guards
Winch
3,500 LB winch with synthetic rope and Auto Stop

Lighting & Electrical

Electrical System
In-pod USB charger, PIN-activated security system (P.A.S.S.), 12-volt power plug, in-pod trickle charging port, pre-wired for hand and thumb warmers
Lighting
High-output LED pod, high-output LED bumper lights, dual LED brake lights/taillights

Comfort & Convenience

Driver Instrumentation
All-digital gauge: speedometer, odometer, tachometer, two tripmeters, hour meter, gear indicator, fuel gauge, AWD indicator, volt meter, coolant temperature, hi-temp light, text and call notifications
Electronic Power Steering
Multi-select EPS
Polaris P.A.S.S. Anti-Theft System
Equipped
Ride Control
Not equipped
Seat Type
Saddle seat with embossed accents
Speed Limiting
Not equipped
44
HP
48"
WIDTH
11.5"
GROUND CLEARANCE

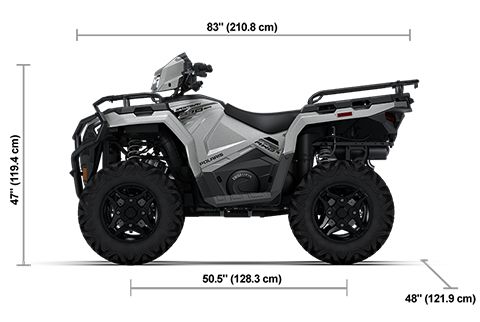

Side view of the Turbo Silver 2026 Polaris Sportsman 570 Ultimate with height, width and length dimensions.
