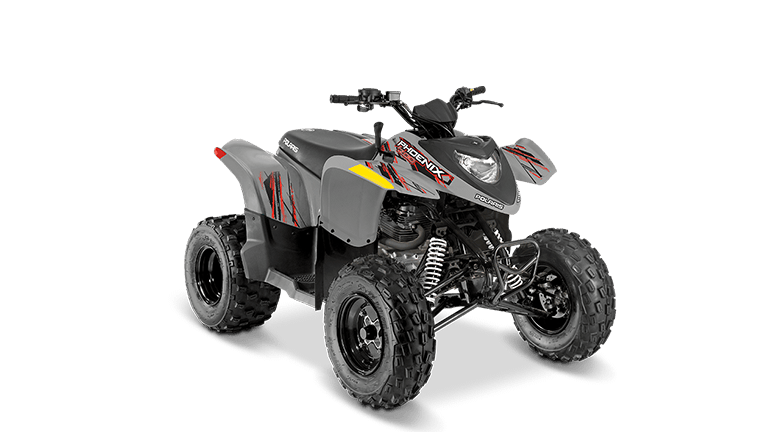

Phoenix 200 Avalanche Gray
Phoenix 200 Avalanche Gray
Engine & Drivetrain
Cooling
Air
Cylinders Displacement
196cc
Drive System Type
2WD, Chain
Engine Braking System (EBS)
Not Equipped
Engine Type
4-Stroke Single Cylinder
Fuel System/Battery
Carbureted
Transmission/Final Drive
Automatic PVT F/N/R; Shaft
Dimensions
Bed Box Dimensions (L x W x H)
N/A
Box Capacity
N/A
Estimated Dry Weight
420 lb (191 kg)
Front/Rear Rack
N/A
Fuel Capacity
2.5 gal (9.5 L)
Ground Clearance
5.7 in (14.5 cm)
Overall Vehicle Size (L x W x H)
65 x 42 x 42 in (165.1 x 106.7 x 106.7 cm)
Payload Capacity
215 lb (98 kg)
Seat Height
32 in (81.3 cm)
Seating Capacity
1
Storage
N/A
Brakes
Front Brakes
Front Hydraulic Disc
Parking Brake
Dual Handle Bar Mounted, Mechanical Hand Lever
Rear Brakes
Rear Mechanical Drum
Technology
Color / Graphics
Avalanche Gray
Instrumentation
N/R Light
Lighting
Single Halogen Hi/Low Headlight, Single Rear Brakelight/Taillight
Other Standard Features
Safety Flag, Parent-Adjustable Speed Limiter, 1 Color Matched Youth Helmet, Training DVD
Speed Limiting
The speed of this vehicle is restricted to under 20 MPH (32 km/h) at manufacture. The speed limiting device may be adjusted by supervising adults when they determine that their child is capable of handling additional speed. The unrestricted top speed for this model is 38 MPH (61 km/h)
Wheels & Tires
Front Tires
21 x 7-10; Duro
Wheelbase
45 in (114.3 cm)
Wheels
Stamped Steel
Suspension
Front Suspension
Dual A-Arm with 7 in (17.8 cm) Travel
Rear Suspension
Mono-Shock Swingarm with 6.5 in (16.5 cm) Travel
