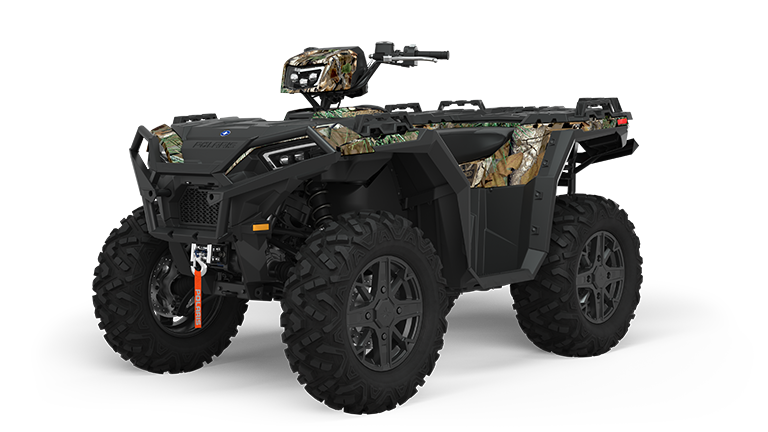

Sportsman 850 Ultimate Trail Polaris Pursuit Camo

Engine & Drivetrain

Active Descent Control
Equipped
Cooling
Liquid
Cylinders Displacement
2 / 850cc
Drive System Type
One Touch On-Demand AWD/2WD
Engine Braking System (EBS)
Equipped
Engine Type
Prostar 4-Stroke SOHC Single Cylinder
Fuel System/Battery
Electronic Fuel Injection / 400 CCA
Horsepower
78 HP
Transmission/Final Drive
Automatic PVT P/R/N/L/H In-line Shifting

Dimensions

Bed Box Dimensions (L x W x H)
N/A
Estimated Dry Weight
864 lbs (392 kg)
Front/Rear Rack
120 lb (55 kg)/240 lb (110 kg)
Fuel Capacity
5.25 gal (19.9 L)
Ground Clearance
12 in (30.5 cm)
Hitch Towing Rating
1,500 lb (680 kg)
Hitch Type
Standard 1.25 in (3.2 cm) Receiver
Overall Vehicle Size (L x W x H)
83.25 x 47.6 x 50.75 in (211.4 x 120.9 x 128.9 cm)
Payload Capacity
575 lb (261 kg)
Person Capacity
1
Seat Height
37 in (94 cm)
Wheelbase
53 in (134.6 cm)

Brakes

Front/Rear Brakes
Single Lever 3-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake
Parking Brake
Park In-Transmission / Lockable Hand Lever

Additional Specifications

Front Suspension
Sealed High Clearance Arched Dual A-Arm 9" (22.9 cm) Travel
Instrumentation
All Digital Gauge, Speedometer, Odometer, Tachometer, Two Tripmeters, Hour Meter, Gear Indicator, Fuel Gauge, AWD Indicator, Volt Meter, Coolant Temperature, Hi-Temp Light, Clock, DC Outlet
Lighting
LED POD, LED Bumper Lights, Dual LED Brake lights/Taillights
Other Standard Features
3,500 lb. Polaris HD Winch with Synthetic Rope, Front Ultimate Series Bumper, Rear Ultimate Series Bumper, Cut and Sew Seat, In Pod Battery Charge Port, Painted Plastics, Painted Springs, Fender Flares, 6 Moveable Tie-Down Points
Rear Suspension
Sealed High Clearance Arched Dual A-Arm, Rolled IRS, 10.25" (26 cm) Travel
RIDE COMMAND+
Available

Tires / Wheels

Electronic Power Steering
Multi Select EPS
Front Tires
27 X 9-14 DURO
Rear Tires
27 X 11-14 DURO
Wheels
14 in. (35.6 cm) Aluminum
