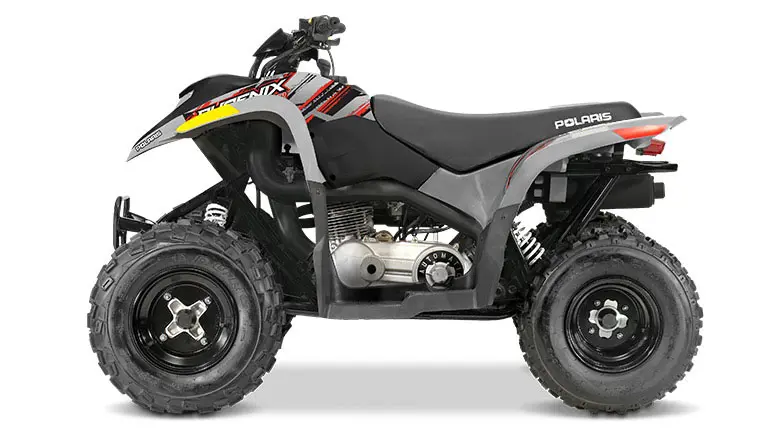

PHOENIX® 200 AVALANCHE GREY

Engine & Drivetrain

Active Descent Control
Not Equipped
Cooling
Air
Cylinders Displacement
196cc
Drive System Type
2WD
Engine Braking System (EBS)
Not Equipped
Engine Type
4-Stroke Single Cylinder
Fuel System/Battery
Carbureted
Transmission/Final Drive
Automatic PVT F/N/R; Shaft

Dimensions

Bed Box Dimensions (L x W x H)
N/A
Estimated Dry Weight
415 lb (188 kg)
Front/Rear Rack
N/A
Fuel Capacity
2.5 gal (9.5 L)
Ground Clearance
5.7 in (14.5 cm)
Overall Vehicle Size (L x W x H)
65 x 42 x 42 in (165.1 x 106.7 x 106.7 cm)
Payload Capacity
N/A
Person Capacity
1
Seat Height
32 in (81.3 cm)
Wheelbase
45 in (114.3 cm)

Brakes

Front/Rear Brakes
Front Hydraulic Disc; Rear Mechanical Drum; (Independent front/rear brake levers plus rear foot brake)
Parking Brake
Lockable Hand Lever

Additional Specifications

Cargo System
N/A
Front Suspension
Dual A-Arm with 7 in (17.8 cm) Travel
Headlight
Single Hi/Low Headlight
Hitch Towing Rating
300 lb (136 kg) - with Accessory Hitch
Hitch Type
Accessory/Drawbar
Instrumentation
N/R Light
Rear Suspension
Mono-Shock Swingarm with 6.5 in (16.5 cm) Travel
Tail/Brake Light
Single Rear Brakelight/Taillight
Unbraked Trailer Towing Capacity
N/A

Tires / Wheels

Front Tires
21 x 7-10; Duro
Rear Tires
20 x 10-9 Duro
Wheels
Stamped Steel
