MODEL ARCHIVE

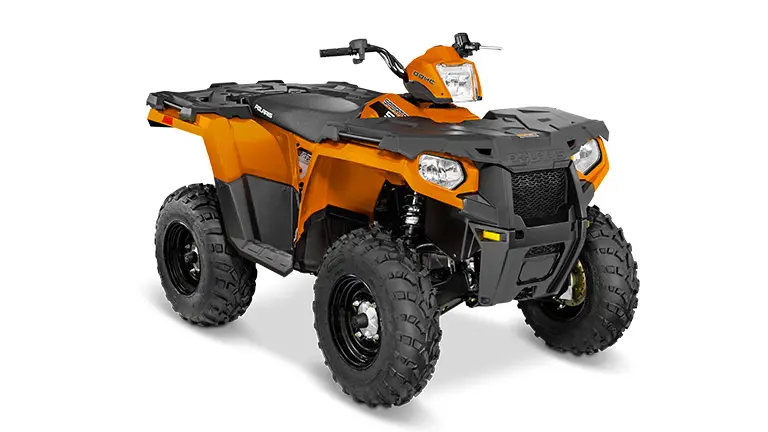

SPORTSMAN® 570 ORANGE BURST

Engine & Drivetrain

Cooling
Liquid
Cylinders Displacement
567cc
Drive System Type
On-Demand True AWD/2WD
Engine Braking System (EBS)
Not Equipped
Engine Type
4-Stroke DOHC Single Cylinder
Fuel System/Battery
Electronic Fuel Injection
Transmission/Final Drive
Automatic PVT P/R/N/L/H

Dimensions

Estimated Dry Weight
702 lb (318 kg)
Front/Rear Rack
90 lb / 180 lb (41 kg / 82 kg)
Fuel Capacity
4.5 gal (17.0 L)
Ground Clearance
11 in (27.9 cm)
Overall Vehicle Size (L x W x H)
83 x 48 x 48 in (210.8 x 121.9 x 121.9 cm)
Payload Capacity
485 lb (220 kg)
Person Capacity
1
Seat Height
33.25 in (84.5 cm)
Wheelbase
50.5 in (128.3 cm)

Brakes

Front/Rear Brakes
Single Lever 4-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake
Parking Brake
Park In-Transmission / Lockable Hand Lever

Additional Specifications

Cargo System
Lock & Ride®
Electronic Power Steering
Not Equipped
Front Suspension
MacPherson Strut With 8.2 in (20.8 cm) Travel
Hitch Towing Rating
1,225 lb (555.7 kg)
Hitch Type
Standard 1.25 in (3.2 cm) Receiver
Instrumentation
Analog Speedometer, Digital Odometer, Tachometer, Tripmeter, Gear Indicator, Fuel Gauge, AWD Indicator, Hi-Temp/Low-Batt Lights, DC Outlet
Lighting
Dual 50w Low Beam Bumper Lights, Single 50w High Beam Pod Light, Dual Brakelights/Taillights
Rear Suspension
Dual A-Arm, IRS 9.5 in (24.1 cm) Travel

Tires / Wheels

Front Tires
25 x 8-12
Rear Tires
25 x 10-12
Wheels
Stamped Steel
