COMPARE RANGER CREW XP 1000 TEXAS EDITION MODELS
Explore RANGER CREW XP 1000 Texas Edition trim levels to find the right one for you. From standard to ultimate—and everything in between—Polaris offers a range of options to meet your needs. Use this guide to find your ideal ride.
Jump To
TRIM GUIDE

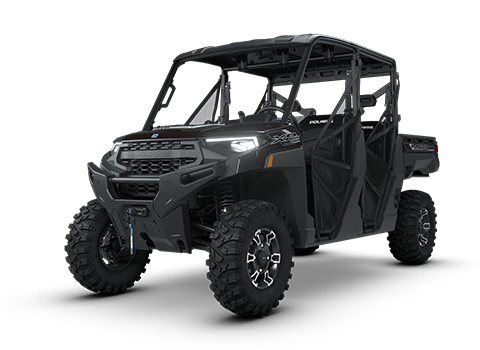

RANGER CREW XP 1000 TEXAS EDITION
FEATURES:
• High-clearance arched A-arms
• Premium Texas Edition badging
• 82 HP ProStar engine
• 2,500-lb. towing capacity & 1,000-lb. box capacity
• 29" 8-Ply Pro Armor X-Terrain tires w/ 14" ground clearance
• Factory-installed roof
• LED headlights
• 4,500-lb. winch w/ synthetic rope, Auto Stop & wireless remote
• Redesigned cab nets
• 6-Position Polaris PULSE Bus Bar

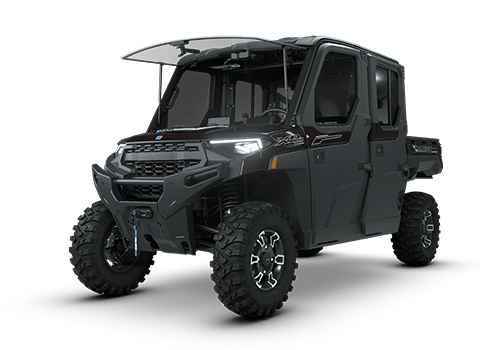

RANGER CREW XP 1000 NORTHSTAR TEXAS EDITION
TEXAS EDITION FEATURES, PLUS:
• Cab system w/ full glass tip-out windshield & powered front windows
• JBL® Trail Pro 2000 audio
• 7" Display, powered by RIDE COMMAND, w/ factory rear camera
• Window tint
Specifications
Cooling
Cylinders Displacement
Drive System Type
Engine Type
Fuel System/Battery
Horsepower
Transmission/Final Drive
Bed Box Dimensions (L x W x H)
Box Capacity
Estimated Dry Weight
Fuel Capacity
Ground Clearance
Hitch Type
Overall Vehicle Size (L x W x H)
Payload Capacity
Person Capacity
Towing Capacity
Turning Radius
Wheelbase
Front/Rear Brakes
Parking Brake
Audio System
Connected Vehicle Services
Rear Camera
Security
Touch Screen Display
Front Tires
Rear Tires
Tire Ply Rating
Wheels
Front Suspension
Rear Suspension
Cargo System
Door Type
Vehicle Protection
Winch
Electrical System
Lighting
Cab Components
Driver Instrumentation
Electronic Power Steering
Heat and/or Air Conditioning
Seat Type
Speed Limiting
Steering
RANGER CREW XP Texas Edition
Starting at
$24,199
US MSRP
Manufacturer’s suggested retail price (MSRP) subject to change. MSRP also excludes destination and handling fees, tax, title, license and registration. Dealer prices may vary. *Plus destination charge and set-up. Alaska destination charge may vary. May be shown with additional modifications or accessories.
Cooling
Liquid
Cylinders Displacement
999 cc
Drive System Type
Selectable on-demand all-wheel drive, AWD/2WD/VersaTrac Turf Mode
Engine Type
4-stroke twin cylinder DOHC
Fuel System/Battery
Electronic Fuel Injection
Horsepower
82
Transmission/Final Drive
Gen 2 Automatic PVT H/L/N/R/P; shaft
Bed Box Dimensions (L x W x H)
36.7 x 54.2 x 12.5" (93 x 138 x 32 cm)
Box Capacity
1,000 lbs. (454 kg)
Estimated Dry Weight
2,018 lbs. (915 kg)
Fuel Capacity
11.5 gal (43.5 L)
Ground Clearance
14" (36 cm)
Hitch Type
Standard 2" (5 cm) receiver
Overall Vehicle Size (L x W x H)
152 x 62.5 x 79.5" (386 x 158 x 201 cm)
Payload Capacity
1,600 lbs. (726 kg)
Person Capacity
6
Towing Capacity
2,500 lbs. (1,134 kg)
Turning Radius
17.5 ft (5.3 m)
Wheelbase
113" (287 cm)
Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers
Parking Brake
Park in-transmission
Audio System
Not equipped, accessory options available
Connected Vehicle Services
Not equipped, accessory options available
Rear Camera
Not equipped
Security
Polaris P.A.S.S. anti-theft system
Touch Screen Display
Not equipped, accessory options available
Front Tires
29 x 9-14; Pro Armor X Terrain
Rear Tires
29 x 11-14; Pro Armor X Terrain
Tire Ply Rating
8-ply
Wheels
14" aluminum
Front Suspension
Dual arched A-arm, 10" (25.4 cm) travel
Rear Suspension
Dual arched A-arm, 10" (25.4 cm) travel
Cargo System
Gas-assist dump box with Lock & Ride accessory integration
Door Type
Cab nets
Vehicle Protection
Large steel bumper, full-coverage skid plate
Winch
4,500 LB Winch with synthetic rope, Auto Stop and wireless remote
Electrical System
660-W charging system, Polaris Pulse electrical system (3-position), 12V accessory outlet, battery trickle-charging port
Lighting
Dual LED headlights, 1,250-lm low beam, 2,300-lm high beam, dual LED taillights
Cab Components
Roof
Driver Instrumentation
Dual-sweep analog dials with 4" LCD rider information center: user selectable blue/red backlighting and brightness, passcode protection, programmable service intervals, speedometer, programmable speed limiting, tachometer, odometer, tripmeter, clock, hour meter, gear indicator, fuel gauge, coolant temperature, voltmeter, service indicator and codes, seat belt reminder
Electronic Power Steering
High-output EPS
Heat and/or Air Conditioning
Not equipped
Seat Type
6-person, dual-row, bolstered bench seats with 3-point harness and adjustable driver seat
Speed Limiting
Speed limiting controlled in gauge
Steering
Tilt adjustment
RANGER CREW XP 1000 Northstar Texas Edition
Starting at
$37,499
US MSRP
Manufacturer’s suggested retail price (MSRP) subject to change. MSRP also excludes destination and handling fees, tax, title, license and registration. Dealer prices may vary. *Plus destination charge and set-up. Alaska destination charge may vary. May be shown with additional modifications or accessories.
Cooling
Liquid
Cylinders Displacement
999 cc
Drive System Type
Selectable on-demand all-wheel drive, AWD/2WD/VersaTrac Turf Mode
Engine Type
4-stroke twin cylinder DOHC
Fuel System/Battery
Electronic Fuel Injection
Horsepower
82
Transmission/Final Drive
Gen 2 Automatic PVT H/L/N/R/P; shaft
Bed Box Dimensions (L x W x H)
36.7 x 54.2 x 12.5" (93 x 138 x 32 cm)
Box Capacity
1,000 lbs. (454 kg)
Estimated Dry Weight
2,485 lbs. (1,127 kg)
Fuel Capacity
11.5 gal (43.5 L)
Ground Clearance
14" (36 cm)
Hitch Type
Standard 2" (5 cm) receiver
Overall Vehicle Size (L x W x H)
152 x 65 x 79.5" (386 x 165 x 201 cm)
Payload Capacity
1,125 lbs. (510 kg)
Person Capacity
6
Towing Capacity
2,500 lbs. (1,134 kg)
Turning Radius
17.5 ft (5.3 m)
Wheelbase
113" (287 cm)
Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers
Parking Brake
Park in-transmission
Audio System
JBL Trail Pro 2000 audio
Connected Vehicle Services
Not equipped, accessory options available
Rear Camera
Factory rear camera
Security
Polaris P.A.S.S. anti-theft system
Touch Screen Display
7" Display, Powered by RIDE COMMAND
Front Tires
29 x 9-14; Pro Armor X Terrain
Rear Tires
29 x 11-14; Pro Armor X Terrain
Tire Ply Rating
8-ply
Wheels
14" aluminum
Front Suspension
Dual arched A-arm, 10" (25.4 cm) travel
Rear Suspension
Dual arched A-arm, 10" (25.4 cm) travel
Cargo System
Gas-assist dump box with Lock & Ride accessory integration
Door Type
Powered window front doors, crank window rear doors
Vehicle Protection
Large steel bumper, full-coverage skid plate
Winch
4,500 LB Winch with synthetic rope, Auto Stop and wireless remote
Electrical System
140-amp charging system, Polaris Pulse electrical system (6-position hood and 6-position roof), USB charger, 12V accessory outlet, battery trickle-charging port
Lighting
Dual LED headlights, 1,250-lm low beam, 2,300-lm high beam, dual LED taillights
Cab Components
Factory-installed cab system with powered doors, roof, glass tip-out windshield, glass rear panel, rearview mirror, windshield wiper/washer, and sound insulation materials
Driver Instrumentation
Dual-sweep analog dials with 4" LCD rider information center: user selectable blue/red backlighting and brightness, passcode protection, programmable service intervals, speedometer, programmable speed limiting, tachometer, odometer, tripmeter, clock, hour meter, gear indicator, fuel gauge, coolant temperature, voltmeter, service indicator and codes, seat belt reminder
Electronic Power Steering
High-output EPS
Heat and/or Air Conditioning
Factory-installed heat, AC, defrost
Seat Type
6-person, dual-row, bolstered bench seats with 3-point harness and adjustable driver seat
Speed Limiting
Speed Limiting controlled in RIDE COMMAND
Steering
Tilt adjustment
