RANGER XP 1000 NORTHSTAR EDITION PREMIUM STEALTH GRAY SPECIFICATIONS

Find specifications below for the 2026 Polaris RANGER XP 1000 NorthStar Edition Premium Stealth Gray UTV. Specs include payload capacity, hitch type, towing capacity, engine, horsepower, ground clearance, turf mode, bed capacity, person capacity, instrumentation, tires, suspension and cargo system.

Change Model

Engine & Drivetrain

Cooling
Liquid
Cylinders Displacement
999 cc
Drive System Type
Selectable on-demand all-wheel drive, AWD/2WD/VersaTrac Turf Mode
Engine Type
4-stroke twin cylinder DOHC
Fuel System/Battery
Electronic fuel injection
Horsepower
82
Transmission/Final Drive
Gen 2 Automatic PVT H/L/N/R/P; shaft

Dimensions

Bed Box Dimensions (L x W x H)
36.7 x 54.2 x 12.5" (93 x 138 x 32 cm)
Box Capacity
1,000 lbs. (454 kg) CA Models: 600 lbs. (272 kg)
Estimated Dry Weight
1,995 lbs. (905 kg)
Fuel Capacity
11.5 gal (43.5 L)
Ground Clearance
14" (36 cm)
Hitch Type
Standard 2" (5 cm) receiver
Overall Vehicle Size (L x W x H)
120 x 65 x 79.5" (305 x 165 x 201 cm)
Payload Capacity
1,275 lbs. (578 kg) CA Models: 1,100 lbs. (499 kg)
Person Capacity
3
Towing Capacity
2,500 lbs. (1,134 kg)
Turning Radius
13 ft (4 m)
Wheelbase
81" (206 cm)

Brakes

Front/Rear Brakes
4-wheel hydraulic disc with dual-bore front and rear calipers
Parking Brake
Park in-transmission

Technology

Audio System
Not equipped, accessory options available
Connected Vehicle Services
Not equipped, accessory options available
Rear Camera
Not equipped
Security
Polaris P.A.S.S. anti-theft system
Touch Screen Display
Not equipped, accessory options available

Wheels & Tires

Front Tires
29 x 9-14; Pro Armor X Terrain
Rear Tires
29 x 11-14; Pro Armor X Terrain
Tire Ply Rating
8-ply
Wheels
14" aluminum

Suspension

Front Suspension
Dual A-arm, 10" (25.4 cm) travel
Rear Suspension
Dual A-arm, 10" (25.4 cm) travel

Exterior Features

Cargo System
Gas-assist dump box with Lock & Ride accessory integration
Door Type
Powered window doors
Vehicle Protection
Large steel bumper, full-coverage skid plate, A-arm guards
Winch
4,500-lbs. Winch with synthetic rope, Auto Stop and wireless remote

Lighting & Electrical

Electrical System
140-amp charging system, Polaris Pulse electrical system (6-position hood and 6-position roof), USB charger, 12V accessory outlet, battery trickle-charging port
Lighting
Dual LED headlights, 1,250-lm low beam, 2,300-lm high beam, dual LED taillights

Comfort & Convenience

Cab Components
Factory-installed cab system with powered doors, roof, glass tip-out windshield, glass rear panel, rearview mirror, windshield wiper/washer, and sound insulation materials
Driver Instrumentation
Dual-sweep analog dials with 4" LCD rider information center: user selectable blue/red backlighting and brightness, passcode protection, programmable service intervals, speedometer, programmable speed limiting, tachometer, odometer, tripmeter, clock, hour meter, gear indicator, fuel gauge, coolant temperature, voltmeter, service indicator and codes, seat belt reminder
Electronic Power Steering
High-output EPS
Heat and/or Air Conditioning
Factory-installed heat, AC, defrost
Seat Type
3-person bolstered bench seat with 3-point harness and adjustable driver seat
Speed Limiting
Speed limiting controlled in gauge
Steering
Tilt adjustment
82
HP
65"
WIDTH
14"
GROUND CLEARANCE

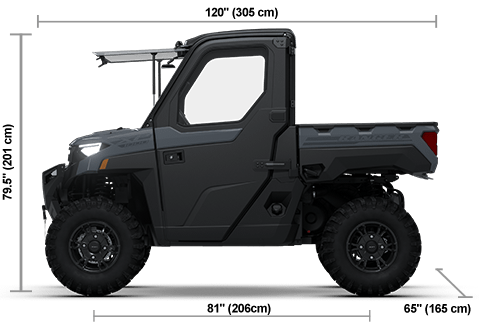

Side view of the Stealth Gray 2026 Polaris RANGER XP 1000 NorthStar Edition Premium with height, width and length dimensions.
