RANGER CREW XD 1500 Northstar Edition Ultimate Polaris Pursuit Camo Specifications

Find specifications below for the 2026 Polaris RANGER CREW XD 1500 NorthStar Edition Ultimate Polaris Pursuit Camo UTV. Specs include payload capacity, hitch type, towing capacity, engine, horsepower, ground clearance, turf mode, bed capacity, person capacity, instrumentation, tires, suspension and cargo system.

Change Model

Engine & Drivetrain

Cooling
Liquid
Cylinders Displacement
1498 cc
Drive System Type
Selectable on-demand all-wheel drive, AWD/2WD/Turf/Ultra Turf, Drive modes: Comfort, Standard, Sport, Tow/Haul
Driveline Features
Drive mode-specific engine braking, hill assist, and creep in drive and reverse
Engine Type
4-stroke triple cylinder DOHC
Fuel System/Battery
Electronic Fuel Injection
Horsepower
110
Transmission/Final Drive
STEELDRIVE automatic transmission: D/R/P

Dimensions

Bed Box Dimensions (L x W x H)
43.4 x 56 x 13.4" (110.2 x 142.2 x 34 cm)
Box Capacity
1,500 lbs. (680 kg)
Curb Weight
3,380 lbs. (1533 kg)
Estimated Dry Weight
3,282 lbs. (1488 kg)
Fuel Capacity
13.6 gal (51.5 L)
Ground Clearance
15" (38 cm)
Hitch Type
Standard 2" (5 cm) receiver
Overall Vehicle Size (L x W x H)
164 x 65 x 78" (416.5 x 165 x 198 cm)
Payload Capacity
1,650 lbs. (748 kg)
Person Capacity
6
Towing Capacity
3,500 lbs. (1588 kg)
Turning Radius
19.4 ft (6 m)
Wheelbase
127" (322.6 cm)

Brakes

Front/Rear Brakes
Foot-activated and power-assisted, 4-wheel hydraulic disc with dual-bore front and rear calipers
Parking Brake
Park in-transmission

Technology

Audio System
JBL Trail Pro 2000 audio
Connected Vehicle Services
RIDE COMMAND+
Rear Camera
Factory rear camera
Security
P.A.S.S. anti-theft system
Touch Screen Display
7" Display, Powered by RIDE COMMAND

Wheels & Tires

Front Tires
30 x 10-15; KENDA® CROSS TRAIL
Rear Tires
30 x 11-15; KENDA® CROSS TRAIL
Tire Ply Rating
8-ply
Wheels
15" aluminum

Suspension

Front Suspension
Dual A-arm 12" (30.5 cm) travel
Rear Suspension
Dual arched A-arm, IRS 12" (30.5 cm) travel

Exterior Features

Cargo System
Electronic lift dump box with Lock & Ride MAX accessory integration
Door Type
Powered window doors-front and rear
Vehicle Protection
Large steel bumper, full-coverage skid plate, bumper D-rings, and top bar
Winch
Pro Series LB Winch with synthetic rope, Auto Stop, wireless remote and Rapid Rope Recovery

Lighting & Electrical

Electrical System
140-amp charging system, Polaris PULSE electrical system (3-position hood and 3-position roof), USB charger, trickle charger, 12-volt accessory outlet, battery trickle-charging port
Lighting
LED headlights with LED taillights, LED rear work light, LED dome light, door puddle lighting, front LED auxiliary lights, interior accent lighting, lighting modes: low, high, accent, blackout. Blackout mode switches off the headlights and dims interior lighting

Comfort & Convenience

Cab Components
Factory-installed cab system with powered doors, roof, tip-out glass windshield, glass rear panel, rearview mirror, windshield wiper/washer, and sound insulation materials
Driver Instrumentation
Driver forward information center with 4" color display and analog speedometer and tachometers: user-selectable blue/red backlighting and brightness, speedometer, tachometer, odometer, tripmeter, clock, hour meter, gear indicator, fuel gauge, coolant temperature, oil pressure, transmission indicator, EPS indicator, voltmeter, service indicator and codes, seat belt reminder
Electronic Power Steering
High-output EPS
Heat and/or Air Conditioning
Factory-installed heat, AC, defrost, recirculation with 5 different airflow settings
Seat Type
6-person, dual-row, superior contoured, bolstered bench seats with 3-point harness, heated front row seats, adjustable driver seat, and flip-down arm rest
Speed Limiting
Speed Limiting controlled in RIDE COMMAND
Steering
Tilt & telescoping adjustment
110
HP
65"
WIDTH
15"
GROUND CLEARANCE

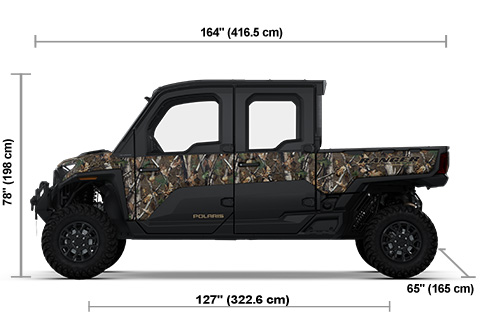

Side view of the Polaris Pursuit Camo 2026 Polaris RANGER CREW XD 1500 NorthStar Edition Ultimate with height, width and length dimensions.
