RANGER 500 STEALTH GRAY SPECIFICATIONS

Find specifications below for the 2026 Polaris RANGER 500 Stealth Gray UTV. Specs include payload capacity, hitch type, towing capacity, engine, horsepower, ground clearance, turf mode, bed capacity, person capacity, instrumentation, tires, suspension and cargo system.

Engine & Drivetrain

Cooling
Liquid
Cylinders Displacement
567 cc
Drive System Type
All-wheel drive with auto-locking front drive and selectable VersaTrac Turf Mode
Engine Type
4-stroke single cylinder DOHC
Fuel System/Battery
Electronic Fuel Injection
Horsepower
28
Transmission/Final Drive
Automatic PVT H/L/N/R/P; shaft

Dimensions

Bed Box Dimensions (L x W x H)
32.6 x 46.2 x 11.25" (82.7 x 117.3 x 28.6 cm)
Box Capacity
500 lbs. (227 kg)
Curb Weight
1,210 lbs. (549 kg)
Estimated Dry Weight
1,155 lbs. (524 kg)
Fuel Capacity
9.5 gal (35.9 L)
Ground Clearance
10" (25.4 cm)
Hitch Type
Standard 2" (5 cm) receiver
Overall Vehicle Size (L x W x H)
110 x 58.5 x 74.8" (279.4 x 148.6 x 190 cm)
Payload Capacity
1,000 lbs. (453.6 kg)
Person Capacity
2
Towing Capacity
1,500 lbs. (680 kg)
Turning Radius
13.5' (4.2 m)
Wheelbase
73.2" (186 cm)

Brakes

Front/Rear Brakes
4-wheel hydraulic disc
Parking Brake
Park in-transmission

Wheels & Tires

Front Tires
25 x 8-12; Carlstar 489
Rear Tires
25 x 10-12; Carlstar 489
Wheels
12" aluminum

Suspension

Front Suspension
MacPherson strut 9" (22.9 cm) travel
Rear Suspension
Dual A-arm, IRS 10" (25.4 cm) travel

Exterior Features

Cargo System
Gas-assist dump box with Lock & Ride accessory integration
Door Type
Cab nets
Vehicle Protection
Steel front bumper with integrated winch mount
Winch
2,500-lb. winch with wired remote

Lighting & Electrical

Electrical System
DC outlet, 660-W stator charging system
Lighting
LED headlights and taillights

Comfort & Convenience

Cab Components
Roof
Driver Instrumentation
4" LCD rider information center: user selectable blue/red backlighting and brightness, programmable service intervals, speedometer, tachometer, odometer, tripmeter, clock, hour meter, gear indicator, fuel gauge, coolant temperature, voltmeter, service indicator and codes, seat belt reminder
Seat Type
2-person, flip-up bench seat with 3-point harness.
Speed Limiting
Speed limiting controlled in gauge
Steering
Tilt adjustment
28
HP
58.5"
WIDTH
10"
GROUND CLEARANCE

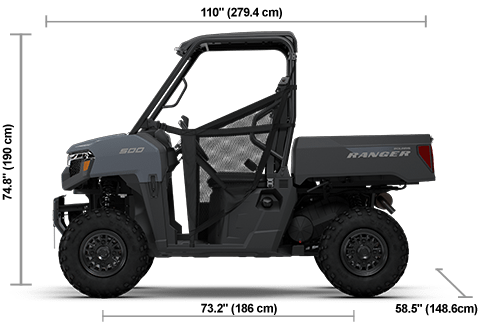

Side view of the Stealth Gray 2026 Polaris RANGER 500 with height, width and length dimensions.
