COMPARE RANGER 1000 MODELS
Explore RANGER trim levels to find the right one for you. From standard to ultimate—and everything in between—Polaris offers a range of options to meet your needs. Use this guide to find your ideal ride.
Jump To
TRIM GUIDE
RANGER 1000
FEATURES:
• 61 HP ProStar engine
• 2,500-lb. towing capacity
• 1,000-lb. box capacity
• 12" ground clearance
• 25" tires
• Gen 2 Transmission
• Simplified cab nets
• Full-body skid plate
RANGER 1000 EPS
STANDARD FEATURES, PLUS:
• Electronic power steering (EPS)
• Large steel bumper w/ plow & winch integration
RANGER 1000 PREMIUM
EPS FEATURES, PLUS:
• Factory-installed 4,500-lb. winch w/ synthetic rope, Auto Stop, & wireless remote
• Factory-installed roof
• 26" PXT 2 tires
• 12.5" ground clearance
• LED headlights
• Polaris-branded seats
• Adjustable seat slider
RANGER 1000 CAB
PREMIUM FEATURES, PLUS:
• Factory-installed heat
• Enclosed cab with fixed glass windshield
• Manual crank down windows
• Tinted Rear Windshield
1 / 4
Specifications
Cooling
Cylinders Displacement
Drive System Type
Driveline Features
Engine Type
Fuel System/Battery
Horsepower
Transmission/Final Drive
Accessory Weight
Bed Box Dimensions (L x W x H)
Box Capacity
Estimated Dry Weight
Fuel Capacity
Ground Clearance
Hitch Type
Overall Vehicle Size (L x W x H)
Payload Capacity
Person Capacity
Towing Capacity
Turning Radius
Wheelbase
Front/Rear Brakes
Parking Brake
Audio System
Connected Vehicle Services
Heat and/or Air Conditioning
Rear Camera
Security
Touch Screen Display
Front Tires
Rear Tires
Tire Ply Rating
Wheels
Front Suspension
Rear Suspension
Cargo System
Door Type
Vehicle Protection
Winch
Electrical System
Lighting
Cab Components
Driver Instrumentation
Electronic Power Steering
Heat and/or Air Conditioning
Seat Type
Speed Limiting
Steering
RANGER 1000
Starting at
$14,499
US MSRP
Manufacturer’s suggested retail price (MSRP) subject to change. MSRP also excludes destination and handling fees, tax, title, license and registration. Dealer prices may vary. *Plus destination charge and set-up. Alaska destination charge may vary. May be shown with additional modifications or accessories.
Cooling
Liquid
Cylinders Displacement
999 cc
Drive System Type
Selectable on-demand all-wheel drive, AWD/2WD/VersaTrac Turf Mode
Driveline Features
N/A
Engine Type
4-stroke twin cylinder SOHC
Fuel System/Battery
Electronic Fuel Injection
Horsepower
61
Transmission/Final Drive
Gen 2 Automatic PVT H/L/N/R/P; shaft
Accessory Weight
N/A
Bed Box Dimensions (L x W x H)
36.75 x 54.25 x 12.5" (93 x 138 x 32 cm)
Box Capacity
1,000 lbs. (454 kg) CA Models: 600 lbs. (272 kg)
Estimated Dry Weight
1,487 lbs. (674 kg)
Fuel Capacity
11.35 gal (43 L)
Ground Clearance
12" (30.5 cm)
Hitch Type
Standard 2" (5 cm) receiver
Overall Vehicle Size (L x W x H)
120 x 62.5 x 76" (305 x 159 x 191 cm)
Payload Capacity
1,500 lbs. (680 kg) CA Models: 1,100 lbs. (499 kg)
Person Capacity
3
Towing Capacity
2,500 lbs. (1,134 kg)
Turning Radius
13.3' (4 m)
Wheelbase
81" (206 cm)
Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers
Parking Brake
Park in-transmission
Audio System
Not equipped, accessory options available
Connected Vehicle Services
Not equipped, accessory options available
Heat and/or Air Conditioning
No specifications available
Rear Camera
N/A
Security
N/A
Touch Screen Display
Not equipped, accessory options available
Front Tires
25 x 10-12; Carlstar 489
Rear Tires
25 x 11-12; Carlstar 489
Tire Ply Rating
N/A
Wheels
12" steel
Front Suspension
Dual A-arm, 10" (25.4 cm) travel
Rear Suspension
Dual A-arm, 10" (25.4 cm) travel
Cargo System
Gas-assist dump box with Lock & Ride accessory integration
Door Type
Cab nets
Vehicle Protection
Full-coverage skid plate, CV shields
Winch
Not equipped, accessory options available
Electrical System
660-W charging system, Polaris Pulse electrical system (3-position), 12V accessory outlet, battery trickle-charging port
Lighting
Halogen headlights, 55-W low beam, 60-W high beam, dual LED taillights
Cab Components
Not equipped, accessory options available
Driver Instrumentation
4" LCD rider information center: user selectable blue/red backlighting and brightness, programmable service intervals, speedometer, tachometer, odometer, tripmeter, clock, hour meter, gear indicator, fuel gauge, coolant temperature, voltmeter, service indicator and codes, seat belt reminder
Electronic Power Steering
N/A
Heat and/or Air Conditioning
Not equipped, accessory options available
Seat Type
3-person bench seat with 3-point harness
Speed Limiting
Not equipped, accessory options available
Steering
Tilt adjustment

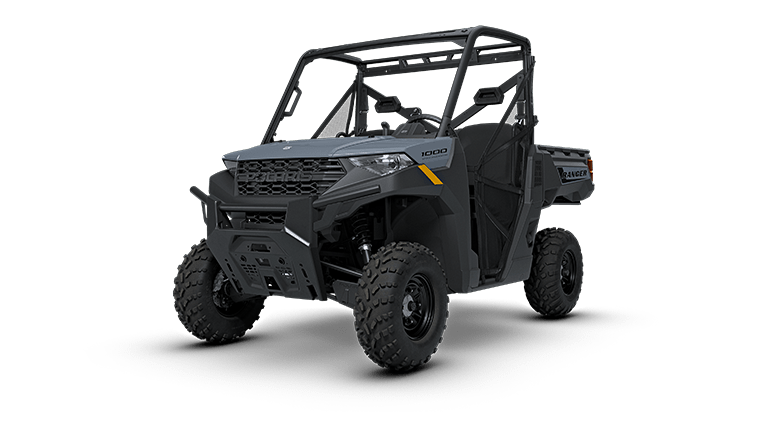

RANGER 1000 EPS
Starting at
$16,499
US MSRP
Manufacturer’s suggested retail price (MSRP) subject to change. MSRP also excludes destination and handling fees, tax, title, license and registration. Dealer prices may vary. *Plus destination charge and set-up. Alaska destination charge may vary. May be shown with additional modifications or accessories.
Cooling
Liquid
Cylinders Displacement
999 cc
Drive System Type
Selectable on-demand all-wheel drive, AWD/2WD/VersaTrac Turf Mode
Driveline Features
N/A
Engine Type
4-stroke twin cylinder SOHC
Fuel System/Battery
Electronic Fuel Injection
Horsepower
61
Transmission/Final Drive
Gen 2 Automatic PVT H/L/N/R/P; shaft
Accessory Weight
N/A
Bed Box Dimensions (L x W x H)
36.75 x 54.25 x 12.5" (93 x 138 x 32 cm)
Box Capacity
1,000 lbs. (454 kg) CA Models: 600 lbs. (272 kg)
Estimated Dry Weight
1,542 lbs. (699 kg)
Fuel Capacity
11.35 gal (43 L)
Ground Clearance
12" (30.5 cm)
Hitch Type
Standard 2" (5 cm) receiver
Overall Vehicle Size (L x W x H)
120 x 62.5 x 76" (305 x 159 x 191 cm)
Payload Capacity
1,500 lbs. (680 kg) CA Models: 1,100 lbs. (499 kg)
Person Capacity
3
Towing Capacity
2,500 lbs. (1,134 kg)
Turning Radius
13.3' (4 m)
Wheelbase
81" (206 cm)
Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers
Parking Brake
Park in-transmission
Audio System
Not equipped, accessory options available
Connected Vehicle Services
Not equipped, accessory options available
Heat and/or Air Conditioning
No specifications available
Rear Camera
N/A
Security
N/A
Touch Screen Display
Not equipped, accessory options available
Front Tires
25 x 10-12; Carlstar 489
Rear Tires
25 x 11-12; Carlstar 489
Tire Ply Rating
N/A
Wheels
12" steel
Front Suspension
Dual A-arm, 10" (25.4 cm) travel
Rear Suspension
Dual A-arm, 10" (25.4 cm) travel
Cargo System
Gas-assist dump box with Lock & Ride accessory integration
Door Type
Cab nets
Vehicle Protection
Large steel bumper, full-coverage skid plate, CV shields
Winch
Not equipped, accessory options available
Electrical System
660-W charging system, Polaris Pulse electrical system (3-position), 12V accessory outlet, battery trickle-charging port
Lighting
Halogen headlights, 55-W low beam, 60-W high beam, dual LED taillights
Cab Components
Not equipped, accessory options available
Driver Instrumentation
4" LCD rider information center: user selectable blue/red backlighting and brightness, programmable service intervals, speedometer, tachometer, odometer, tripmeter, clock, hour meter, gear indicator, fuel gauge, coolant temperature, voltmeter, service indicator and codes, seat belt reminder
Electronic Power Steering
High-output EPS
Heat and/or Air Conditioning
Not equipped, accessory options available
Seat Type
3-person bench seat with 3-point harness
Speed Limiting
Not equipped, accessory options available
Steering
Tilt adjustment

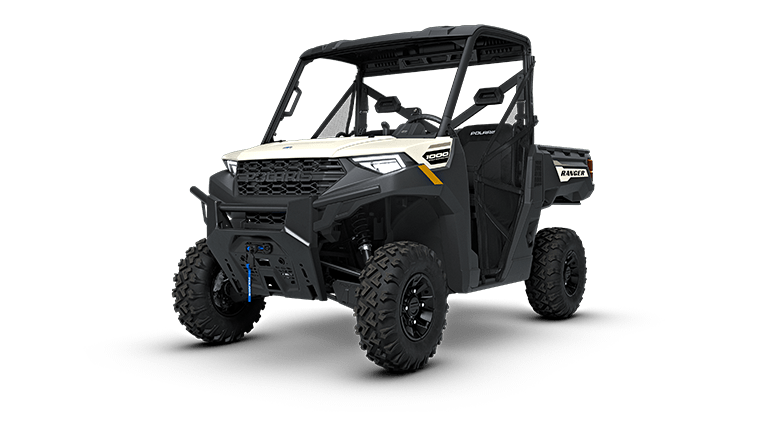

RANGER 1000 Premium
Starting at
$18,499
US MSRP
Manufacturer’s suggested retail price (MSRP) subject to change. MSRP also excludes destination and handling fees, tax, title, license and registration. Dealer prices may vary. *Plus destination charge and set-up. Alaska destination charge may vary. May be shown with additional modifications or accessories.
Cooling
Liquid
Cylinders Displacement
999 cc
Drive System Type
Selectable on-demand all-wheel drive, AWD/2WD/VersaTrac Turf Mode
Driveline Features
N/A
Engine Type
4-stroke twin cylinder SOHC
Fuel System/Battery
Electronic Fuel Injection
Horsepower
61
Transmission/Final Drive
Gen 2 Automatic PVT H/L/N/R/P; shaft
Accessory Weight
N/A
Bed Box Dimensions (L x W x H)
36.75 x 54.25 x 12.5" (93 x 138 x 32 cm) / 36.7 x 54.2 x 12.5" (93 x 138 x 32 cm)
Box Capacity
1,000 lbs. (454 kg) CA Models: 600 lbs. (272 kg)
Estimated Dry Weight
1,572 lbs. (713 kg)
Fuel Capacity
11.35 gal (43 L)
Ground Clearance
12.5" (31.75 cm)
Hitch Type
Standard 2" (5 cm) receiver
Overall Vehicle Size (L x W x H)
120 x 62.5 x 78" (305 x 159 x 193 cm)
Payload Capacity
1,500 lbs. (680 kg) CA Models: 1,100 lbs. (499 kg)
Person Capacity
3
Towing Capacity
2,500 lbs. (1,134 kg)
Turning Radius
13.3' (4 m)
Wheelbase
81" (206 cm)
Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers
Parking Brake
Park in-transmission
Audio System
Not equipped, accessory options available
Connected Vehicle Services
Not equipped, accessory options available
Heat and/or Air Conditioning
Not equipped, accessory options available
Rear Camera
Not equipped, accessory options available
Security
N/A
Touch Screen Display
Not equipped, accessory options available
Front Tires
26 x 9-12; PXT 2.0
Rear Tires
26 x 11-12; PXT 2.0
Tire Ply Rating
6-Ply
Wheels
12" aluminum
Front Suspension
Dual A-arm, 10" (25.4 cm) travel
Rear Suspension
Dual A-arm, 10" (25.4 cm) travel
Cargo System
Gas-assist dump box with Lock & Ride accessory integration
Door Type
Cab nets
Vehicle Protection
Large steel bumper, full-coverage skid plate, CV shields
Winch
4,500 LB Winch with synthetic rope, Auto Stop and wireless remote
Electrical System
660-W charging system, Polaris Pulse electrical system (3-position), 12V accessory outlet, battery trickle-charging port
Lighting
Dual LED headlights, 600-lm low beam, 1,000-lm high beam, dual LED taillights
Cab Components
Roof
Driver Instrumentation
4" LCD rider information center: user selectable blue/red backlighting and brightness, programmable service intervals, speedometer, tachometer, odometer, tripmeter, clock, hour meter, gear indicator, fuel gauge, coolant temperature, voltmeter, service indicator and codes, seat belt reminder
Electronic Power Steering
High-output EPS
Heat and/or Air Conditioning
Not equipped, accessory options available
Seat Type
3-person bench seat with 3-point harness and adjustable driver seat
Speed Limiting
Not equipped, accessory options available
Steering
Tilt adjustment

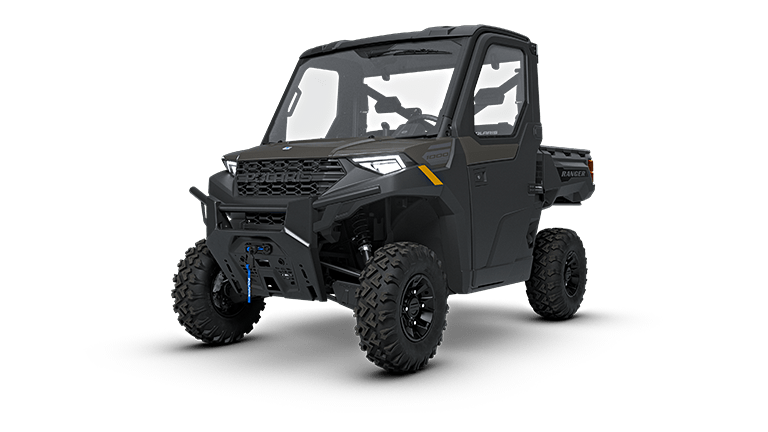

RANGER 1000 CAB
Starting at
$21,999
US MSRP
Manufacturer’s suggested retail price (MSRP) subject to change. MSRP also excludes destination and handling fees, tax, title, license and registration. Dealer prices may vary. *Plus destination charge and set-up. Alaska destination charge may vary. May be shown with additional modifications or accessories.
Cooling
Liquid
Cylinders Displacement
999 cc
Drive System Type
Selectable on-demand all-wheel drive, AWD/2WD/VersaTrac Turf Mode
Driveline Features
N/A
Engine Type
4-stroke twin cylinder SOHC
Fuel System/Battery
Electronic Fuel Injection
Horsepower
61
Transmission/Final Drive
Gen 2 Automatic PVT H/L/N/R/P; shaft
Accessory Weight
N/A
Bed Box Dimensions (L x W x H)
36.75 x 54.25 x 12.5" (93 x 138 x 32 cm)
Box Capacity
1,000 lbs. (454 kg) CA Models: 600 lbs. (272 kg)
Estimated Dry Weight
1,720 lbs. (780 kg)
Fuel Capacity
11.35 gal (43 L)
Ground Clearance
12.5" (31.75 cm)
Hitch Type
Standard 2" (5 cm) receiver
Overall Vehicle Size (L x W x H)
120 x 65 x 78" (305 x 165x 193 cm)
Payload Capacity
1,500 lbs. (680 kg) CA Models: 1,100 lbs. (499 kg)
Person Capacity
3
Towing Capacity
2,500 lbs. (1,134 kg)
Turning Radius
13.3' (4 m)
Wheelbase
81" (206 cm)
Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers
Parking Brake
Park in-transmission
Audio System
Not equipped, accessory options available
Connected Vehicle Services
Not equipped, accessory options available
Heat and/or Air Conditioning
No specifications available
Rear Camera
Not equipped, accessory options available
Security
N/A
Touch Screen Display
Not equipped, accessory options available
Front Tires
26 x 9-12; PXT 2.0
Rear Tires
26 x 11-12; PXT 2.0
Tire Ply Rating
6-Ply
Wheels
12" aluminum
Front Suspension
Dual A-arm, 10" (25.4 cm) travel
Rear Suspension
Dual A-arm, 10" (25.4 cm) travel
Cargo System
Gas-assist dump box with Lock & Ride accessory integration
Door Type
Crank Window Doors
Vehicle Protection
Large steel bumper, full-coverage skid plate, CV shields
Winch
4,500 LB Winch with synthetic rope, Auto Stop and wireless remote
Electrical System
660-W charging system, Polaris Pulse electrical system (3-position), 12V accessory outlet, battery trickle-charging port
Lighting
Dual LED headlights, 600-lm low beam, 1,000-lm high beam, dual LED taillights
Cab Components
Factory-installed cab system with roof and sound insulation materials, fixed glass windshield, tinted rear panel, crank front windows, windshield wiper/washer, dome light
Driver Instrumentation
4" LCD rider information center: user selectable blue/red backlighting and brightness, programmable service intervals, speedometer, tachometer, odometer, tripmeter, clock, hour meter, gear indicator, fuel gauge, coolant temperature, voltmeter, service indicator and codes, seat belt reminder
Electronic Power Steering
High-output EPS
Heat and/or Air Conditioning
Factory-installed heat and defrost
Seat Type
3-person bench seat with 3-point harness and adjustable driver seat
Speed Limiting
Not equipped, accessory options available
Steering
Tilt adjustment
Cooling
Cylinders Displacement
Drive System Type
Driveline Features
Engine Type
Fuel System/Battery
Horsepower
Transmission/Final Drive
Accessory Weight
Bed Box Dimensions (L x W x H)
Box Capacity
Estimated Dry Weight
Fuel Capacity
Ground Clearance
Hitch Type
Overall Vehicle Size (L x W x H)
Payload Capacity
Person Capacity
Towing Capacity
Turning Radius
Wheelbase
Front/Rear Brakes
Parking Brake
Audio System
Connected Vehicle Services
Rear Camera
Security
Touch Screen Display
Front Tires
Rear Tires
Tire Ply Rating
Wheels
Front Suspension
Rear Suspension
Cargo System
Door Type
Vehicle Protection
Winch
Electrical System
Lighting
Cab Components
Driver Instrumentation
Electronic Power Steering
Heat and/or Air Conditioning
Seat Type
Speed Limiting
Steering

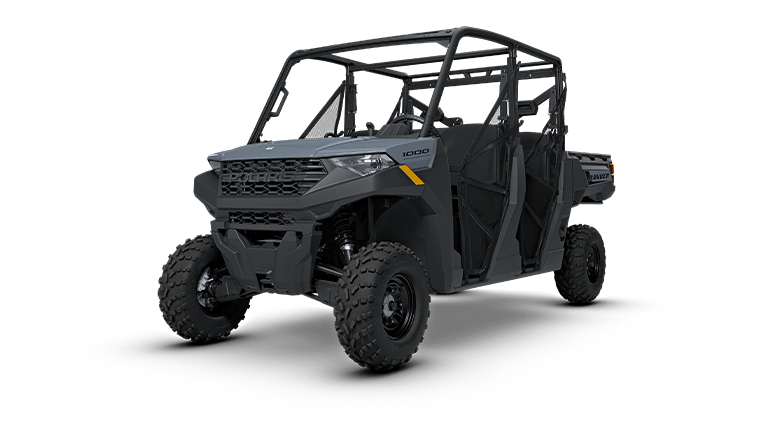

RANGER CREW 1000
Starting at
$16,299
US MSRP
Manufacturer’s suggested retail price (MSRP) subject to change. MSRP also excludes destination and handling fees, tax, title, license and registration. Dealer prices may vary. *Plus destination charge and set-up. Alaska destination charge may vary. May be shown with additional modifications or accessories.
Cooling
Liquid
Cylinders Displacement
999 cc
Drive System Type
Selectable on-demand all-wheel drive, AWD/2WD/VersaTrac Turf Mode
Driveline Features
N/A
Engine Type
4-stroke twin cylinder SOHC
Fuel System/Battery
Electronic Fuel Injection
Horsepower
61
Transmission/Final Drive
Gen 2 Automatic PVT H/L/N/R/P; shaft
Accessory Weight
N/A
Bed Box Dimensions (L x W x H)
36.75 x 54.25 x 12.5" (93 x 138 x 32 cm)
Box Capacity
1,000 lbs. (454 kg) CA Models: 600 lbs. (272 kg)
Estimated Dry Weight
1,723 lbs. (782 kg)
Fuel Capacity
11.35 gal (43 L)
Ground Clearance
12" (30.5 cm)
Hitch Type
Standard 2" (5 cm) receiver
Overall Vehicle Size (L x W x H)
152 x 62.5 x 76" (386 x 159 x 191 cm)
Payload Capacity
1,700 lbs. (771 kg) CA Models: 1,350 lbs. (612 kg)
Person Capacity
6
Towing Capacity
2,500 lbs. (1,134 kg)
Turning Radius
17' (5.2m)
Wheelbase
113" (287 cm)
Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers
Parking Brake
Park in-transmission
Audio System
Not equipped, accessory options available
Connected Vehicle Services
Not equipped, accessory options available
Rear Camera
N/A
Security
N/A
Touch Screen Display
Not equipped, accessory options available
Front Tires
25 x 10-12; Carlstar 489
Rear Tires
25 x 11-12; Carlstar 489
Tire Ply Rating
N/A
Wheels
12" steel
Front Suspension
Dual A-arm, 10" (25.4 cm) travel
Rear Suspension
Dual A-arm, 10" (25.4 cm) travel
Cargo System
Gas-assist dump box with Lock & Ride accessory integration
Door Type
Cab nets
Vehicle Protection
Full-coverage skid plate, CV shields
Winch
Not equipped, accessory options available
Electrical System
660-W charging system, Polaris Pulse electrical system (3-position), 12V accessory outlet, battery trickle-charging port
Lighting
Halogen headlights, 55-W low beam, 60-W high beam, dual LED taillights
Cab Components
Not equipped, accessory options available
Driver Instrumentation
4" LCD rider information center: user selectable blue/red backlighting and brightness, programmable service intervals, speedometer, tachometer, odometer, tripmeter, clock, hour meter, gear indicator, fuel gauge, coolant temperature, voltmeter, service indicator and codes, seat belt reminder
Electronic Power Steering
N/A
Heat and/or Air Conditioning
Not equipped, accessory options available
Seat Type
6-person, dual-row bench seats with 3-point harness
Speed Limiting
Not equipped, accessory options available
Steering
Tilt adjustment

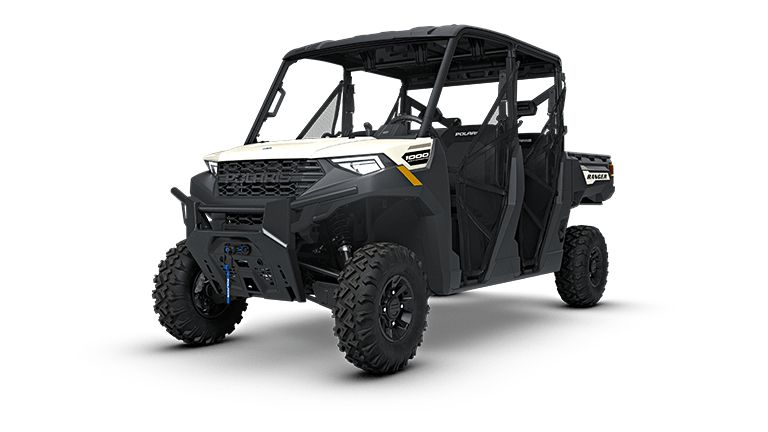

RANGER CREW 1000 PREMIUM
Starting at
$20,499
US MSRP
Manufacturer’s suggested retail price (MSRP) subject to change. MSRP also excludes destination and handling fees, tax, title, license and registration. Dealer prices may vary. *Plus destination charge and set-up. Alaska destination charge may vary. May be shown with additional modifications or accessories.
Cooling
Liquid
Cylinders Displacement
999 cc
Drive System Type
Selectable on-demand all-wheel drive, AWD/2WD/VersaTrac Turf Mode
Driveline Features
N/A
Engine Type
4-stroke twin cylinder SOHC
Fuel System/Battery
Electronic Fuel Injection
Horsepower
61
Transmission/Final Drive
Gen 2 Automatic PVT H/L/N/R/P; shaft
Accessory Weight
N/A
Bed Box Dimensions (L x W x H)
36.75 x 54.25 x 12.5" (93 x 138 x 32 cm)
Box Capacity
1,000 lbs. (454 kg) CA Models: 600 lbs. (272 kg)
Estimated Dry Weight
1,897 lbs. (860 kg)
Fuel Capacity
11.35 gal (43 L)
Ground Clearance
12.5" (31.75 cm)
Hitch Type
Standard 2" (5 cm) receiver
Overall Vehicle Size (L x W x H)
152 x 62.5 x 78" (386 x 159 x 193 cm)
Payload Capacity
1,700 lbs. (771 kg) CA Models: 1,350 lbs. (612 kg)
Person Capacity
6
Towing Capacity
2,500 lbs. (1,134 kg)
Turning Radius
17' (5.2m)
Wheelbase
113" (287 cm)
Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers
Parking Brake
Park in-transmission
Audio System
Not equipped, accessory options available
Connected Vehicle Services
Not equipped, accessory options available
Rear Camera
Not equipped, accessory options available
Security
N/A
Touch Screen Display
Not equipped, accessory options available
Front Tires
26 x 9-12; PXT 2.0
Rear Tires
26 x 11-12; PXT 2.0
Tire Ply Rating
6-Ply
Wheels
12" aluminum
Front Suspension
Dual A-arm, 10" (25.4 cm) travel
Rear Suspension
Dual A-arm, 10" (25.4 cm) travel
Cargo System
Gas-assist dump box with Lock & Ride accessory integration
Door Type
Cab nets
Vehicle Protection
Large steel bumper, full-coverage skid plate, CV shields
Winch
4,500 LB Winch with synthetic rope, Auto Stop and wireless remote
Electrical System
660-W charging system, Polaris Pulse electrical system (3-position), 12V accessory outlet, battery trickle-charging port
Lighting
Dual LED headlights, 600-lm low beam, 1,000-lm high beam, dual LED taillights
Cab Components
Roof
Driver Instrumentation
4" LCD rider information center: user selectable blue/red backlighting and brightness, programmable service intervals, speedometer, tachometer, odometer, tripmeter, clock, hour meter, gear indicator, fuel gauge, coolant temperature, voltmeter, service indicator and codes, seat belt reminder
Electronic Power Steering
High-output EPS
Heat and/or Air Conditioning
Not equipped, accessory options available
Seat Type
6-person, dual-row bench seats with 3-point harness and adjustable driver seat
Speed Limiting
Not equipped, accessory options available
Steering
Tilt adjustment
