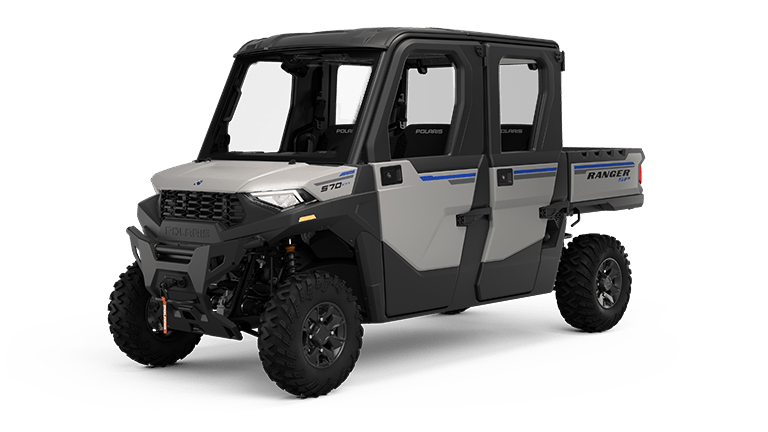

RANGER CREW SP 570 NorthStar Edition Ghost Gray

Engine & Drivetrain

Cooling
Liquid
Displacement
567cc
Drive System Type
On-Demand True AWD/2WD/VersaTrac Turf Mode
Engine Braking System (EBS)
Not Equipped
Engine Type
4-Stroke Single Cylinder DOHC
Fuel System/Battery
Electronic Fuel Injection
Horsepower
44 HP
Torque
35.4 LB-FT
Transmission/Final Drive
Automatic PVT H/L/N/R/P; Shaft

Dimensions

Bed Box Dimensions (L x W x H)
33.3 x 48.7 x 12.3 in
Box Capacity
500 lb (226.8 kg)
Dry Weight
861 kg - 1900 lbs
Fuel Capacity
9.5 gal (35.9 L)
Ground Clearance
10.3 in (26.1 cm)
GVW
2,700 lbs
Hitch Towing Rating
1,500 lb (680 kg)
Hitch Type
Standard 2 in (5 cm) Receiver
Overall Vehicle Size (L x W x H)
144 x 58 x 74 in.
Payload Capacity
750 lb (340 kg)
Person Capacity
4
Water Fording Height
Equal to the Floorboards
Wheelbase
105 in (2,667 mm)

Brakes

Front/Rear Brakes
4-Wheel Hydraulic Disc
Parking Brake
Park In-Transmission

Additional Specifications

Adjustable Driver Seat
Not Equipped
Cargo System
Lock & Ride®
Color / Graphics
Ghost Gray
Electronic Power Steering
Standard
Gauge
B1
Instrumentation
4" LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder, DC Outlet
Lighting
2k Lumens High Beam, 1k Lumens Low Beam LED Headlights LED Taillamps
Other Standard Features
Gas Assist Dump Box, Single Latch Tailgate, Rear-mounted Fiberglass Insulated Exhaust System, Standard In-dash SAE Charge Port, 575 CCA Battery, 660W Charging System (Stator), 48.4 Gal. Onboard Storage with Enclosed Dash Bins and Integrated Cell-phone Holder, Sealed Suspension Bushings and Wheel Bearings, Full Coverage Steel Front Bumper with Integrated Winch and Plow Mounts, Full Coverage Skid Plate, Premium Body Panels, Premium Cut & Sew Seats, Polaris Pulse Electrical System (3 position), Polaris HD 3,500 Lb. Synthetic Rope Winch with Autostop and In-Dash Switch, Premium Pro-Shield Cab, Doors with Crank Windows, Integrated Door Storage, Fixed Glass Windshield with Wiper and Washer Fluid, Rear Glass Panel, Factory Installed Heat with Defrost, Upper and Lower Dash Vents and Variable Fan Speed, USB Charging Port, Front Stabilizer Bar, Rear Wheel Liners
Tilt Steering
Standard

Tires / Wheels

Front Tires
25 x 8-12; Carlisle Terra Cross
Rear Tires
25 x10-12; Carlisle Terra Cross
Tire Ply Rating
6 Ply Rated
Wheels
12" Black Aluminum

Suspension

Front Suspension
MacPherson Strut 9 in (22.9 cm) Travel
Rear Suspension
Dual A-Arm 10.0 in (25.4 cm) Travel
Turning Radius
196 in. (498 cm)
