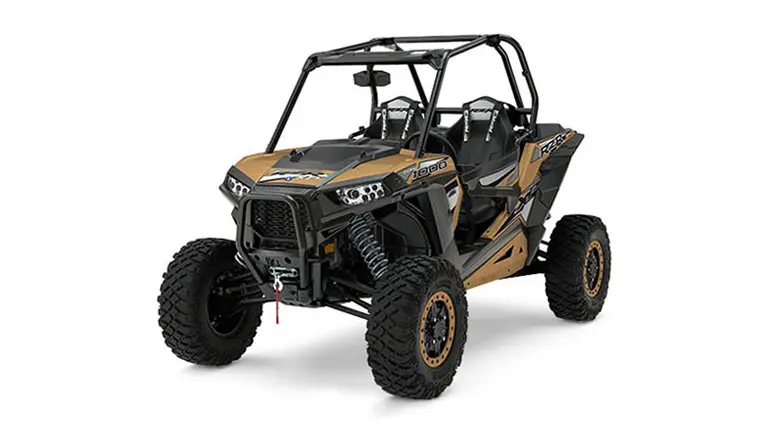

RZR XP® 1000 EPS GOLD MATTE METALLIC LE

Engine & Drivetrain

Cooling
Liquid
Cylinders Displacement
999cc
Drive System Type
Xtreme Performance True On-Demand AWD/2WD
Engine Braking System (EBS)
Not Equipped
Engine Type
ProStar 1000 4-Stroke DOHC Twin Cylinder
Fuel System/Battery
Electronic Fuel Injection
Horsepower
110 HP
Transmission/Final Drive
Automatic PVT P/R/N/L/H with Reduced L Gear

Dimensions

Bed Box Dimensions (L x W x H)
28 x 22 x 7 in (72.0 x 57.0 x 17.8 cm)
Box Capacity
300 lb (136 kg)
Estimated Dry Weight
1,567 lb (711 kg)
Fuel Capacity
9.5 gal (35.9 L)
Ground Clearance
14 in (35.6 cm)
Overall Vehicle Size (L x W x H)
120 x 64 x 74.25 in (304.8 x 162.6 x 188.6 cm)
Payload Capacity
740 lb (336 kg)
Person Capacity
2
Wheelbase
90 in ( 228.6 cm)

Brakes

Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers
Parking Brake
Park In-Transmission

Additional Specifications

Cargo System
Lock & Ride®
Doors
Bowed 1/4 Doors
Front Shocks
2" Walker Evans Needle Shocks with 16-Position Adjustable Clickers
Front Suspension
Dual A-Arm 16 in (40.6 cm) Travel
Hitch Towing Rating
N/A
Hitch Type
Not Equipped
Instrumentation
Digital Gauge, Speedometer, Odometer, Tripmeter, Tachometer, Coolant Temperature, Volt Meter, Hour Meter, Service Indicator, Clock, Gear Indicator, Fuel Gauge, Hi-Temp Light, Seatbelt Reminder Light, DC Outlet
Lighting
White LED, Low/High, Red LED Tail/Brake Lights
Other Standard Features
Click 6 Harnesses, High Clearance Lower Control Arms, High Clearance Lower Radius Rods, HMW Skid Plate, Narrow Front Fender Flares, ProArmor Crawler XG Tires with Beadlock Wheels, Rear View Mirror, Rock Sliders
Rear Shocks
FOX Performance Series - 2.0 Podium X
Rear Suspension
Trailing Arm with Stabilizer Bar and 18 in (45.7 cm) Travel
Seat Type
Bolstered Bucket Seats with Driver Seat Slider and Click 6 Seatbelt Harnesses
Winch
4,500 lb Polaris Integrated Winch

Tires / Wheels

Electronic Power Steering
Standard
Front Tires
30 X 10 -14; Pro Armor Crawler XG
Rear Tires
30 X 10 -14; Pro Armor Crawler XG
Wheels
Cast Aluminum Beadlock
