MODEL ARCHIVE

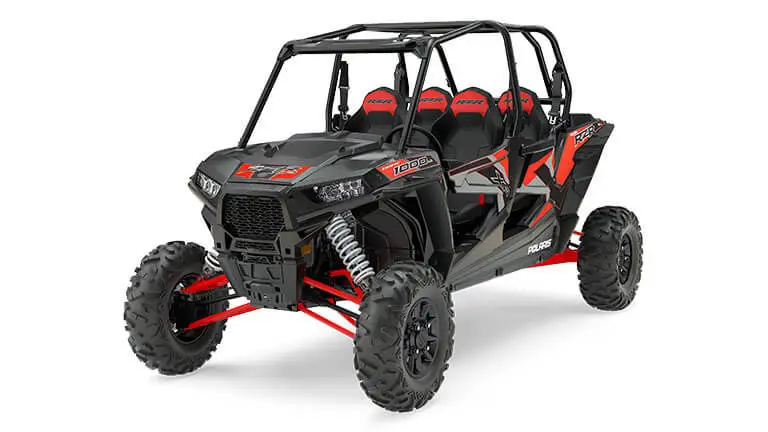

RZR XP® 4 1000 EPS TITANIUM METALLIC

Engine & Drivetrain

Active Descent Control
Not Equipped
Cooling
Liquid
Cylinders Displacement
999cc
Drive System Type
High Performance True On-Demand AWD/2WD
Engine Braking System (EBS)
Not Equipped
Engine Type
ProStar 1000 H.O. 4-Stroke DOHC Twin Cylinder
Fuel System/Battery
Electronic Fuel Injection
Horsepower
110 HP
Transmission/Final Drive
Automatic PVT P/R/N/L/H

Dimensions

Bed Box Dimensions (L x W x H)
28 x 22 x 7 in (72.0 x 57.0 x 17.8 cm)
Box Capacity
300 lb (136 kg)
Estimated Dry Weight
1,565 lb (709.9 kg)
Fuel Capacity
9.5 gal (35.9 L)
Ground Clearance
13.5 in (34.3 cm)
Overall Vehicle Size (L x W x H)
146 x 64 x 73.75 in (370.8 x 162.6 x 187.3 cm)
Payload Capacity
900 lb (408 kg)
Person Capacity
4
Wheelbase
117 in (297.2 cm)

Brakes

Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers
Parking Brake
Park In-Transmission

Additional Specifications

Cargo System
Lock & Ride®
Doors
Bowed 1/4 Doors
Front Shocks
2" Walker Evans Needle Shocks with 16-Position Adjustable Clickers
Front Suspension
Dual A-Arm 16 in (40.6 cm) Travel
Hitch Towing Rating
N/A
Hitch Type
Not Equipped
Instrumentation
Digital Gauge, Speedometer, Odometer, Tripmeter, Tachometer, Coolant Temperature, Volt Meter, Hour Meter, Service Reminder, 2 DC Outlets (front and rear)
Lighting
White LED, Low/High, Red LED Tail/Brake Lights
Rear Shocks
2.5" Walker Evans Needle Shocks with 16-Position Adjustable Clickers
Rear Suspension
Trailing Arm with Stabilizer Bar and 18 in (45.7 cm) Travel
Seatbelts
Bolstered Bucket Seats with Front Seat Sliders and Rear Height Adjustable Seat Belts

Tires / Wheels

Electronic Power Steering
Standard
Front Tires
29 x 9-14; Maxxis Bighorn
Rear Tires
29 x 11-14; Maxxis Bighorn
Wheels
Cast Aluminum
