MODEL ARCHIVE

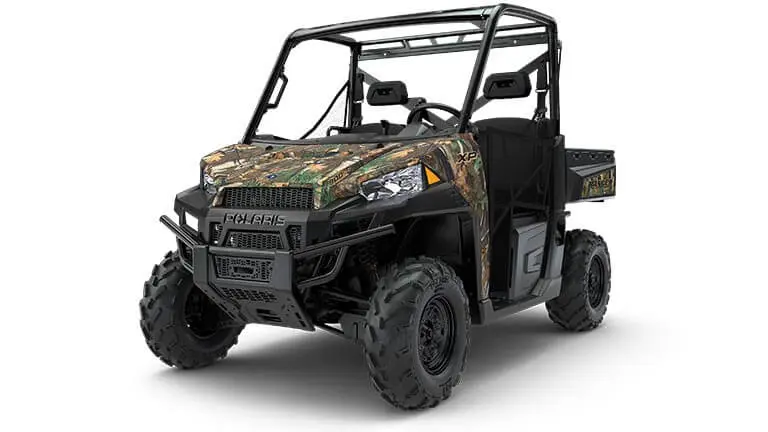

RANGER XP® 900 POLARIS PURSUIT® CAMO

Engine & Drivetrain

Cooling
Liquid
Cylinders Displacement
875cc
Drive System Type
On-Demand True AWD/2WD/VersaTrac Turf Mode
Engine Type
4-Stroke Twin Cylinder DOHC
Fuel System/Battery
Electronic Fuel Injection
Transmission/Final Drive
Automatic PVT H/L/N/R/P; Shaft

Dimensions

Bed Box Dimensions (L x W x H)
36.5 x 54 x 11.5 in (93 x 137 x 29 cm)
Box Capacity
1,000 lb (454 kg)
Estimated Dry Weight
1,324 lb (600.5 kg)
Fuel Capacity
10 gal (37.9 L)
Ground Clearance
12 in (30.5 cm)
Overall Vehicle Size (L x W x H)
116.5 x 60 x 76 in (296 x 152 x 193 cm)
Payload Capacity
1,500 lbs (680.4 kg)
Person Capacity
3
Wheelbase
81 in (206 cm)

Brakes

Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front Calipers
Parking Brake
Park In-Transmission

Additional Specifications

Adjustable Driver Seat
Not Equipped
Cargo System
Lock & Ride®
Front Suspension
Dual A-Arm, 10 in (25.4 cm)
Hitch Towing Rating
2,000 lb (907 kg)
Hitch Type
Standard 2 in (5 cm) Receiver
Instrumentation
Single Analog Dial with 2" LCD Rider Information Center, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Volt Meter, Service Indicator and Codes, Seatbelt Reminder Light, DC Outlet
Lighting
55W low/ 60W high, LED Tail
Rear Suspension
Dual A-Arm, IRS 10 in. (25.4 cm) Travel
Tilt Steering
Standard

Tires / Wheels

Electronic Power Steering
Optional Accessory
Front Tires
25 x 10 -12; 489
Rear Tires
25 x 11-12; 489
Wheels
Stamped Steel
