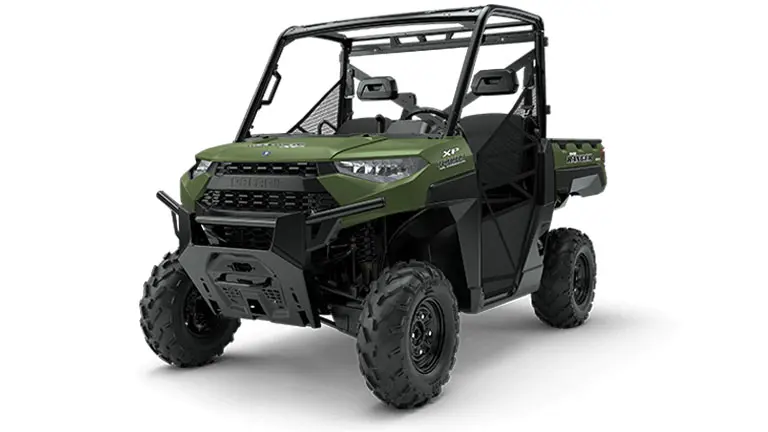

RANGER XP® 1000 EPS Sage Green

Engine & Drivetrain

Cooling
Liquid
Cylinders Displacement
999cc
Drive System Type
High Performance On-Demand True AWD/2WD/VersaTrac Turf Mode
Engine Type
4-Stroke Twin Cylinder DOHC
Fuel System/Battery
Electronic Fuel Injection
Transmission/Final Drive
Automatic PVT H/L/N/R/P; Shaft

Dimensions

Bed Box Dimensions (L x W x H)
36.75 x 54.25 x 12.5 in (93.3 x 137.8 x 31.75 cm)
Box Capacity
1,000 lb (454 kg)
Estimated Dry Weight
1,565 lb (709.9 kg)
Fuel Capacity
11.5 gal (43.5 L)
Ground Clearance
12.5 in (31.8 cm)
Overall Vehicle Size (L x W x H)
120 x 62.5 x 77 in (305 x 158 x 196 cm)
Payload Capacity
1,500 lbs (680.4 kg)
Person Capacity
3
Wheelbase
81 in (206 cm)

Brakes

Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front Calipers
Parking Brake
Park In-Transmission

Additional Specifications

Adjustable Driver Seat
Not Equipped
Cargo System
Lock & Ride®
Front Suspension
Dual A-Arm 11 in (27.9 cm) Travel
Hitch Towing Rating
2,500 lb (1,134 kg)
Hitch Type
Standard 2 in (5 cm) Receiver
Instrumentation
4" LCD Rider Information Center:  User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder, Gear Indicator, DC Outlet
Lighting
55W low/ 60W high, LED Tail
Rear Suspension
Dual A-Arm, IRS 11 in (27.9 cm) Travel
Tilt Steering
Standard

Tires / Wheels

Electronic Power Steering
Standard
Front Tires
26 x 9-12; PXT
Rear Tires
26 x 11-12; PXT
Wheels
Stamped Steel
