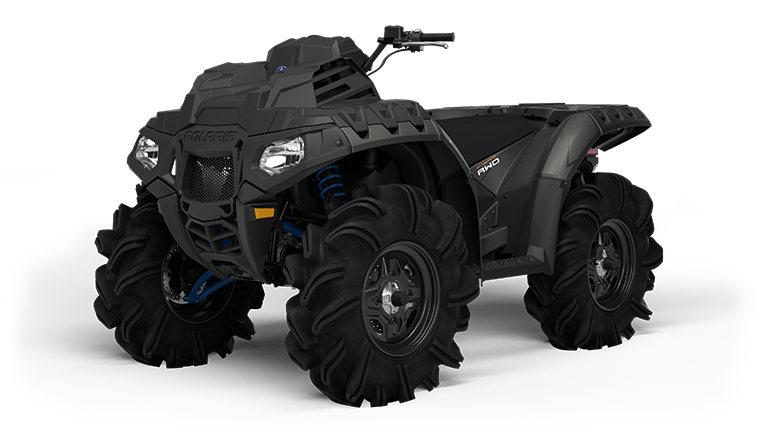

Sportsman 850 High Lifter Edition Titanium Metallic
Engine & Drivetrain
Active Descent Control
Not Equipped
Cooling
Liquid
Cylinders Displacement
2 / 850cc
Drive System Type
One Touch On-Demand AWD/2WD
Engine Braking System (EBS)
Equipped
Engine Type
ProStar 4-Stroke SOHC Twin Cylinder
Fuel System/Battery
Electronic Fuel Injection / 400 CCA
Horsepower
78 HP
Transmission/Final Drive
Automatic PVT P/R/N/L/H In-line Shifting
Dimensions
Bed Box Dimensions (L x W x H)
N/A
Box Capacity
75 lb (34 kg)
Estimated Dry Weight
888 lb (403 kg)
Front/Rear Rack
0 lb (0 kg)/75 lb (34 kg)
Fuel Capacity
5.25 gal (19.9 L)
Ground Clearance
13.5 in (34.3 cm)
Hitch Tow Rating
1,500 lb (680 kg)
Hitch Type
Standard 1.25 in (3.2 cm) Receiver
Overall Vehicle Size (L x W x H)
88 x 50 x 50.4 in (224 x 127 x 128 cm)
Payload Capacity
290 lb (132 kg)
Person Capacity
1
Seat Height (Laden)
39 in (99 cm)
Wheelbase
53 in (134.6 cm)
Brakes
Front/Rear Brakes
Single Lever 4-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake
Parking Brake
Park In-Transmission / Lockable Hand Lever
Additional Specifications
Cargo System
Lock & Ride, 2 Gal (8 L) Rear Storage
Electronic Power Steering
Not Equipped
Instrumentation
All Digital Gauge, Speedometer, Odometer, Tachometer, 2 Tripmeters, Hour Meter, Gear Indicator, Fuel Gauge, AWD Indicator, Volt Meter, Coolant Temperature, Hi-Temp Light, Clock, DC Outlet
Lighting
Dual 50w Headlights, Dual Brakelights/Taillights
Tires / Wheels
Front Tires
30 x 9.5 Outlaw 2
Rear Tires
30 x 9.5 Outlaw 2
Wheels
14 in. (35.6 cm) Aluminum
Suspension
Front Suspension
High Clearance Arched Dual A-Arm 7.4 in (18.8 cm) Travel
Rear Suspension
High Clearance Arched Dual A-Arm, Rolled IRS, 6.7 in (17 cm) Travel
