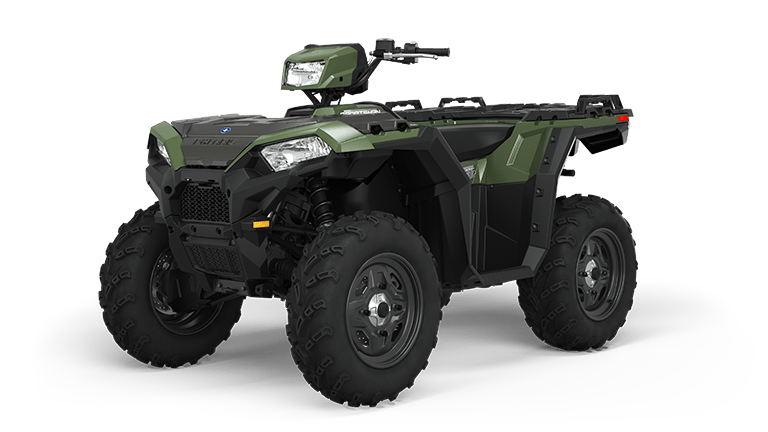

Sportsman 850 Sage Green
Engine & Drivetrain
Active Descent Control
Not Equipped
Cooling
Liquid
Cylinders Displacement
2 / 850cc
Drive System Type
One Touch On-Demand AWD/2WD
Engine Braking System (EBS)
Standard
Engine Type
ProStar SOHC 4-Stroke Twin Cylinder
Fuel System/Battery
Electronic Fuel Injection / 400 CCA
Horsepower
78 HP
Transmission/Final Drive
Automatic PVT P/R/N/L/H In-line Shifting
Dimensions
Bed Box Dimensions (L x W x H)
N/A
Estimated Dry Weight
772 lb (350 kg)
Front/Rear Rack
120 lb (55 kg)/240 lb (110 kg)
Fuel Capacity
5.25 gal (19.9 L)
Ground Clearance
11.5 in (29 cm)
Overall Vehicle Size (L x W x H)
83.25 x 47.6 x 50.75 in (211.4 x 120.9 x 128.9 cm)
Payload Capacity
575 lb (261 kg)
Person Capacity
1
Seat Height (Laden)
37 in (94 cm)
Wheelbase
53 in (134.6 cm)
Brakes
Front/Rear Brakes
Single Lever 3-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake
Parking Brake
Park In-Transmission / Lockable Hand Lever
Additional Specifications
Cargo System
Lock & Ride, 4 Gal (15 L) Front Dry Storage 2 Gal (8 L) Rear Storage
Front Suspension
Straight Dual A-Arm 9 in (22.9 cm) Travel
Hitch Towing Rating
1,500 lb (680 kg)
Hitch Type
Standard 1.25 in (3.2 cm) Receiver
Instrumentation
All Digital Gauge, Speedometer, Odometer, Tachometer, Two Tripmeters, Hour Meter, Gear Indicator, Fuel Gauge, AWD Indicator, Volt Meter, Coolant Temperature, Hi-Temp Light, Clock, DC Outlet
Lighting
50w High Beam, Dual 50w Low Beam Headlights
Other Standard Features
4 Moveable Tie-Down Points, In Pod Battery Charge Port
Rear Suspension
Straight Dual A-Arm, Rolled IRS, 10.25 in (26 cm) Travel
Tires / Wheels
Electronic Power Steering
Not Equipped
Front Tires
26 x 8 CST
Rear Tires
26 x 10 CST
Wheels
14 in. (35.6 cm) Steel
