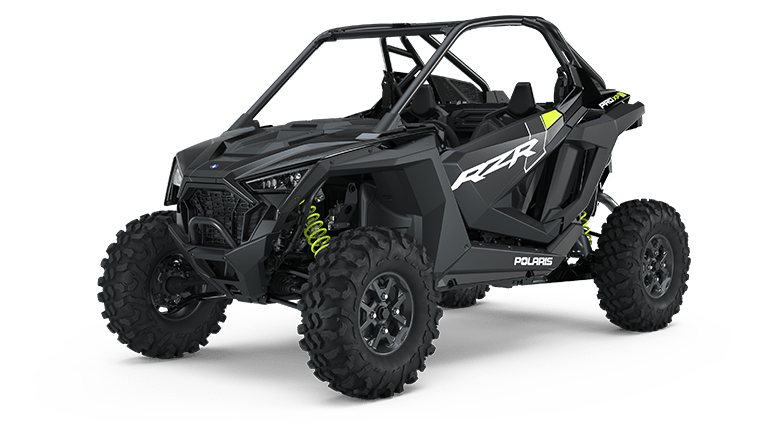

RZR PRO XP Black Lime
Engine & Drivetrain
Cooling
Liquid
Cylinders Displacement
925cc
Drive System Type
Isolated Xtreme Performance True On-Demand AWD/2WD
Engine Braking System (EBS)
Not Equipped
Engine Type
4-Stroke DOHC Twin Cylinder Turbocharged
Fuel System/Battery
Electronic Fuel Injection
Horsepower
181 HP
Transmission/Final Drive
Automatic PVT P/R/N/L/H
Dimensions
Bed Box Dimensions (L x W x H)
26 x 17.7 x 11.5 in (66 x 45 x 29.2 cm)
Box Capacity
300 lb (136.1 kg)
Dry Weight
1,736 lb (789.2 kg)
Fuel Capacity
12 gal (45.4 L)
Ground Clearance
14.5 in (36.8 cm)
Overall Vehicle Size (L x W x H)
126 x 64 x 71.7 in (320 x 162.6 x 182.1 cm)
Payload Capacity
740 lb (336 kg)
Wheelbase
96 in (244 cm)
Brakes
Front/Rear Brakes
4-Wheel Hydraulic Disc with Triple-Bore Front and Dual-Bore Rear Calipers
Parking Brake
Park In-Transmission
Additional Specifications
Cargo System
Lock & Ride®
Doors
Vented 1/2 Doors
Hitch Towing Rating
N/A
Hitch Type
Not Equipped
Instrumentation
Dual-sweep Analog Dials w/ 4" LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder Light, Gear Indicator, DC Outlet
Lighting
White LED, Low/High & Red LED Tail / Brake Lights
Other Standard Features
900W stator, Polaris Pulse system, DC Charging
Seat Type
Bolstered Bucket Seats with 4-way adjustability and Height Adjustable Seat Belts
Tires / Wheels
Electronic Power Steering
Standard
Front Tires
30 x 10-14 MAXXIS Carnivore; Wheel Size 14x6
Rear Tires
30 x 10-14 MAXXIS Carnivore; Wheel Size 14x7
Wheels
Cast Aluminum
Suspension
Front Shocks
2" Walker Evans Needle Shocks with 16-Position Adjustable Clickers
Front Suspension
High-Clearance Dual A-Arm with Stabilizer Bar and 20 in (50.8 cm) Usable Travel, 17 in (43.2 cm) Wheel Travel
Rear Shocks
2.5" Walker Evans Needle Shocks with 16-Position Adjustable Clickers
Rear Suspension
Trailing Arm with Stabilizer Bar and 22" (55.9 cm) Usable Travel, 20" (50.8 cm) Wheel Travel
