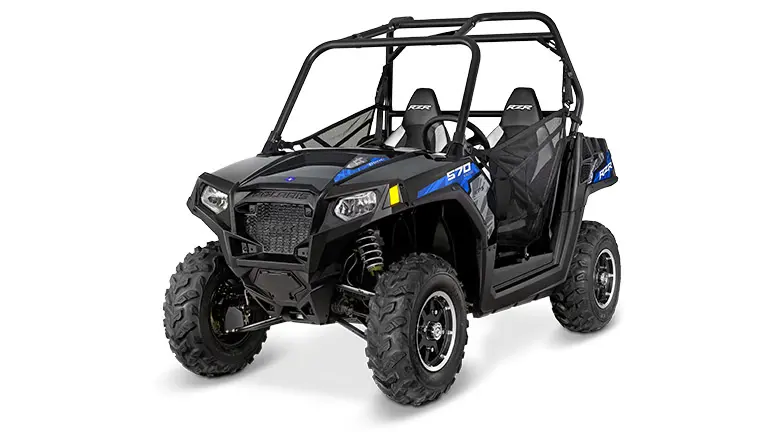

RZR® 570 EPS TRAIL BLACK PEARL

Engine & Drivetrain

Active Descent Control
Not Equipped
Cooling
Liquid
Cylinders Displacement
567cc
Drive System Type
On-Demand True AWD/2WD/VersaTrac Turf Mode
Engine Braking System (EBS)
Standard
Engine Type
4-Stroke DOHC Single Cylinder
Fuel System/Battery
Electronic Fuel Injection
Transmission/Final Drive
Automatic PVT P/R/N/L/H

Dimensions

Bed Box Dimensions (L x W x H)
20 x 40 x 9 in (51 x 102 x 23 cm)
Box Capacity
300 lb (136.1 kg)
Estimated Dry Weight
996 lb (452 kg)
Fuel Capacity
7.25 gal (27.4 L)
Ground Clearance
10.5 in (26.7 cm)
Overall Vehicle Size (L x W x H)
107.5 x 50 x 69 in (273 x 127 x 175.2 cm)
Payload Capacity
740 lb (336 kg)
Person Capacity
2
Wheelbase
77 in (196 cm)

Brakes

Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front Calipers
Parking Brake
Park In-Transmission

Additional Specifications

Cargo System
Lock & Ride®
Front Suspension
Dual A-Arm with Anti-Sway Bar 9 in (22.9 cm) Travel
Headlight
Halogen 55W low/ 60W high
Hitch Towing Rating
1,500 lb (680 kg)
Hitch Type
Standard 1.25 in (3.2 cm) Receiver
Instrumentation
Digital Gauge, Speedometer, Odometer, Tachometer, Tripmeter, Hour Meter, Clock, Gear Indicator, Fuel Gauge, Hi-Temp/Low-Batt Lights, DC Outlet
Rear Suspension
Dual A-Arm, Anti-Sway Bar 9.5 in (24 cm) Travel

Tires / Wheels

Electronic Power Steering
Standard
Front Tires
25 x 8-12; Maxxis
Rear Tires
25 x 10-12; Maxxis
Wheels
Cast Aluminum
