RANGER CREW 1000 PREMIUM POLARIS PURSUIT CAMO SPECIFICATIONS

Find specifications below for the 2025 Polaris RANGER CREW 1000 Premium Polaris Pursuit Camo UTV. Specs include payload capacity, hitch type, towing capacity, engine, horsepower, ground clearance, turf mode, bed capacity, person capacity, instrumentation, tires, suspension and cargo system.

Engine & Drivetrain

Cooling
Liquid
Cylinders Displacement
999cc
Drive System Type
High Performance On-Demand True AWD/2WD/VersaTrac Turf Mode
Engine Braking System (EBS)
Not Equipped
Engine Type
4-Stroke Twin Cylinder SOHC
Fuel System/Battery
Electronic Fuel Injection
Horsepower
61 HP
Transmission/Final Drive
Gen 2 Automatic PVT H/L/N/R/P; Shaft

Dimensions

Bed Box Dimensions (L x W x H)
36.75 x 54 x 11.5 in (93.3 x 137 x 29 cm)
Box Capacity
1000 lbs (454 kg) CA Models: 600 lbs (272 kg)
Estimated Dry Weight
1853 lbs (841 kg)
Fuel Capacity
11.35 gal (43 L)
Ground Clearance
12.5 in (31.75 cm)
GVW
3750 lbs (1701 kg)
Hitch Towing Rating
2,500 lb (1,134 kg)
Hitch Type
Standard 2 in (5 cm) Receiver
Overall Vehicle Size (L x W x H)
152 x 62.5 x 78 in (386 x 159 x 198 cm)
Payload Capacity
1750 lbs (794 kg) CA Models: 1350 lbs (612 kg)
Person Capacity
6
Water Fording Height
Equal to the Floorboards
Wheelbase
113 in (287 cm)

Brakes

Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers
Parking Brake
Park In-Transmission

Additional Specifications

Adjustable Driver Seat
Standard
Audio System
Not Equipped
Cargo System
Lock & Ride®
Color / Graphics
Polaris Pursuit Camo
Electronic Power Steering
High Output EPS
Instrumentation
4" LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder, DC Outlet
Lighting
Dual LED Headlights, 600lm Low Beam, 1000lm High Beam, Dual LED Tail Lights
Other Standard Features
Polaris HD 4500 lb Synthetic Rope Winch with Autostop and Wireless Remote, Factory-Installed Poly Sport Roof, Premium Cut & Sew Bench Seats, Front Bumper with Integrated Plow & Winch Mounts, Single Latch Cab Nets, Polaris Pulse Electrical System (3 position), 12V Accessory Outlet, Battery Trickle-Charging Outlet
RIDE COMMAND+
Available as Accessory
Tilt Steering
Standard

Tires / Wheels

Front Tires
26 x 9-12; PXT 2.0
Rear Tires
26 x 11-12; PXT 2.0
Wheels
Aluminum Black Xcelerator 2.0

Suspension

Front Suspension
Dual A-Arm, 10 in (25.4 cm)
Rear Suspension
Dual A-Arm, IRS 10 in. (25.4 cm) Travel
Turning Radius
17 ft (5.2 m)
61
HP
62.5"
WIDTH
12"
GROUND CLEARANCE

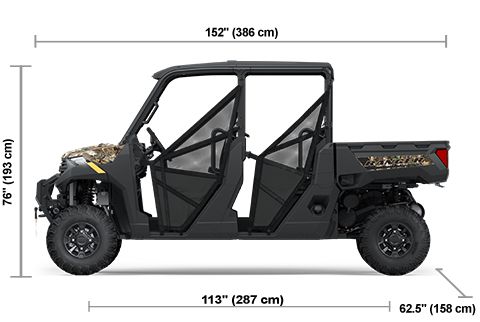

Side view of the Polaris Pursuit Camo 2025 Polaris RANGER CREW 1000 Premium with height, width and length dimensions.
