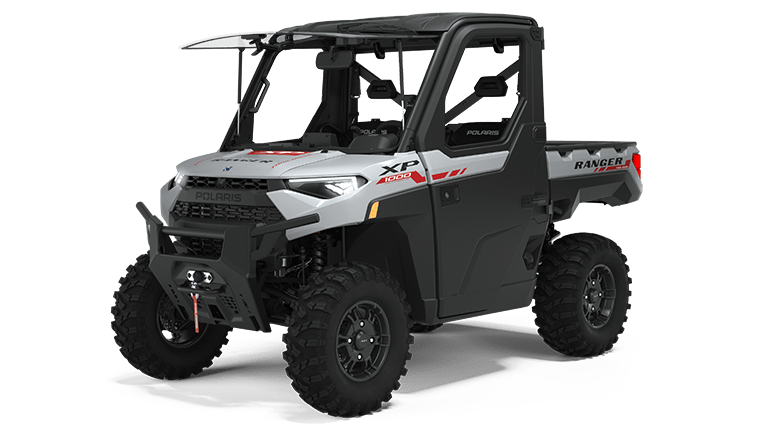

RANGER XP 1000 NorthStar Edition Trail Boss Ghost White Metallic with Performance Red Accents - RIDE COMMAND Package

Engine & Drivetrain

Cooling
Liquid
Cylinders Displacement
999cc
Drive System Type
High Performance On-Demand True AWD/2WD/VersaTrac Turf Mode
Engine Braking System (EBS)
Engine Braking System (EBS) and Active Descent Control (ADC)
Engine Type
4-Stroke Twin Cylinder DOHC
Fuel System/Battery
Electronic Fuel Injection
Horsepower
82 HP
Transmission/Final Drive
Automatic PVT H/L/N/R/P; Shaft

Dimensions

Bed Box Dimensions (L x W x H)
36.75 x 54.25 x 12.5 in (93.3 x 137.8 x 31.75 cm)
Box Capacity
1,000 lbs (453.6 kg); California 600 lb (272.2 kg)
Estimated Dry Weight
1,966 lb (891.7 kg)
Fuel Capacity
11.5 gal (43.5 L)
Ground Clearance
14 in (35.6 cm)
GVW
3,600 lb (1,632.9 kg)
Hitch Towing Rating
2,500 lb (1,134 kg)
Hitch Type
Standard 2 in (5 cm) Receiver
Overall Vehicle Size (L x W x H)
120 x 65 x 79.5 in. (305 x 165 x 202 cm)
Payload Capacity
1,275 lbs (578.3 kg); California 1,100 lb (498.9 kg)
Person Capacity
3
Wheelbase
81 in (206 cm)

Brakes

Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front Calipers
Parking Brake
Park In-Transmission

Additional Specifications

Adjustable Driver Seat
Standard
Cargo System
Lock & Ride®
Color / Graphics
Ghost White Metallic with Performance Red Accents
Electronic Power Steering
Standard
Instrumentation
Dual-sweep Analog Dials w/ 4" LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder, 1 DC Outlet, 1 USB Charge Port
Lighting
Dual LED Headlamps, 1250lm Low Beam, 2300lm High Beam, Dual LED Taillamps
Other Standard Features
Polaris HD 4,500 Lb. Synthetic Rope Winch with Autostop and Wireless Remote, Arched A-Arms, Nivomat Self-Leveling Suspension, Polaris Engine Braking System with Active Descent Control, Premium Pro-Shield Cab, Doors with Power Windows, Tip-Out Glass Windshield with Wiper, Rear Glass Panel, Dome Light, Rearview Mirror, Heat, AC, Defrost, Premium Cut & Sew Seats with Contoured Seatbacks and Embroidered Polaris Branding, Premium Steering Wheel and Interior Accents, Polaris Pulse Electrical System with 6-Position Underhood Busbar and 6-Position Roof Busbar, Standard In-Dash SAE Charge Port, In Dash Speakers, Front & Rear Cameras, 7" Glove Touch Display: Plow Mode, Group Ride, GPS Naivigation, Bluetooth, AM/FM Radio ,Switched 15amp 12V Auxilary Power outlet in Box, Switched Rear Facing LED Cargo/Work light, Added Accy Switch Panel (4 switch locations), Equipped with Connected, NFC Front Badge
RIDE COMMAND+
Factory-Installed
Tilt Steering
Standard

Tires / Wheels

Front Tires
29 x 9-14; PRO ARMOR X-TERRAIN
Rear Tires
29 x 11-14; PRO ARMOR X-TERRAIN
Tire Ply Rating
8 Ply Rated
Wheels
14 in. (35.6 cm) Aluminum

Suspension

Front Suspension
Independent, Arched Lower A-Arms, 10 in (25.4 cm) of Travel
Rear Suspension
Independent, Arched Lower A-arms, Nivomat Load-Adaptive, 10" (25.4 cm) of Travel
Turning Radius
13.3 ft (406.4 cm)
