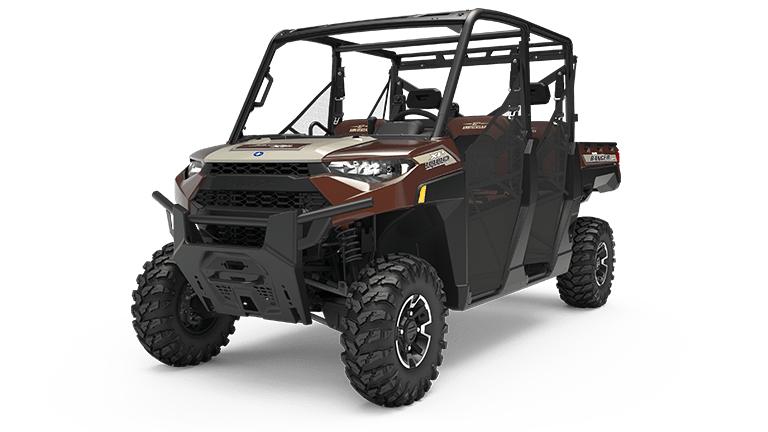

RANGER CREW XP 1000 EPS 20th Anniversary Limited Edition Maroon Metallic

Engine & Drivetrain

Cooling
Liquid
Cylinders Displacement
999cc
Drive System Type
High Performance On-Demand True AWD/2WD/VersaTrac Turf Mode
Engine Braking System (EBS)
Standard
Engine Type
4-Stroke Twin Cylinder DOHC
Fuel System/Battery
Electronic Fuel Injection
Horsepower
82 HP
Transmission/Final Drive
Automatic PVT H/L/N/R/P; Shaft

Dimensions

Bed Box Dimensions (L x W x H)
36.75 x 54.25 x 12.5 in (93.3 x 137.8 x 31.75 cm)
Box Capacity
1,000 lbs (453.6 kg)
Estimated Dry Weight
1,936 lbs (878.2 kg)
Fuel Capacity
11.5 gal (43.5 L)
Ground Clearance
13 in (33 cm)
Hitch Towing Rating
2,500 lb (1,134 kg)
Overall Vehicle Size (L x W x H)
152 x 62.5 x 77 in. (386 x 158 x 196 cm)
Payload Capacity
1,750 lb (793.8 kg)
Person Capacity
6
Wheelbase
113 in (287 cm)

Brakes

Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front Calipers
Parking Brake
Park In-Transmission

Additional Specifications

Adjustable Driver Seat
Standard
Cargo System
Lock & Ride®
Hitch Type
Standard 2 in (5 cm) Receiver
Instrumentation
Dual-sweep Analog Dials w/ 4" LCD Rider Information Center:  User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder, DC Outlet
Lighting
55W low/ 60W high, LED Tail
Other Standard Features
Polaris Pulse™ Electrical System
Tilt Steering
Standard

Tires / Wheels

Electronic Power Steering
Standard
Front Tires
27 x 9-12; Maxxis MU511
Rear Tires
27 x 11-12; Maxxis MU52
Wheels
Aluminum Black Xcelerator 2.0

Suspension

Front Suspension
Dual A-Arm 11 in (27.9 cm) Travel
Rear Suspension
Dual A-Arm, IRS 11 in (27.9 cm) Travel
